JJRC X7 User Manual

1) Assemble propeller A onto motor A (motor
with concave points on the shaft end).
2) Screw the silver fixing nut of the propeller
into the motor shaft, and rotate the nut
counterclockwise.
3) Screw the silver fixing nut of the propeller
with open spanner counterclockwise.
1)Assemble propeller B onto motor B (motor
with concave points on the shaft end).
2)Screw the black fixing nut of the propeller
into the motor shaft, and rotate the nut
clockwise.
3)Screw the black fixing nut of the propeller
with open spanner clockwise.
Arm A is equipped with
propeller A and a silver
blade fixing nut. Rotate
counterclockwise to lock the
nut,rotate clockwise to unlock
the nut.
Arm B is equipped with propeller B
and a white blade fixing nut. Rotate
clockwise to lock the nut,rotate
counterclockwise to unlock the nut.
Arm B is equipped
with propeller B and a
white blade fixing
nut. Rotate clockwise
to lock the nut, rotate
counterclockwise to
unlock the nut.
Arm A is equippedwith
propeller A and a silver
blade fixing nut. Rotate
counterclockwise to lock the
nut,rotate clockwise to unlock
the nut.
12
X7
Operation Manual

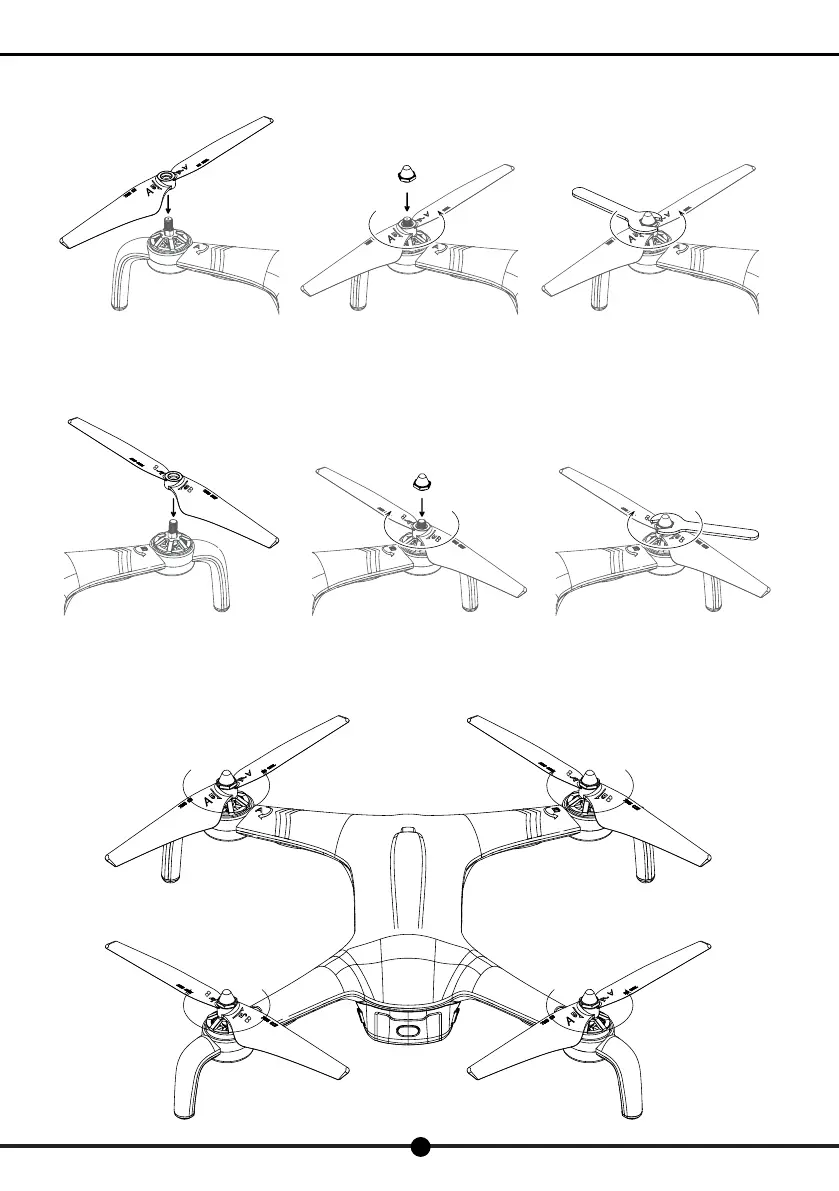

4. Propeller installation
1) Install propeller
on arm A
2) Install propeller on arm B
3) Propeller installation completed

JJRC X7 Specifications

General

Brand	JJRC
Model	X7
Category	Drones
Language	English
