JLG 260MRT - Lift Cylinder

SECTION 2 - PROCEDURES
2-8 3121801
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
20
1. Barrel
2. Rod
3. Solenoid Valve
4. Cotter Pin
5. Cable Adaptor
6. Restrictor/Check Valve
7. Locknut
8. Wear Ring
9. Seal
10. Piston
11. O-Ring
12. Spacer
13. O-Ring
14. Back-Up Ring
15. Wear Ring
16. Seal
17. O-Ring
18. Head
19. Wiper
20. Bushing

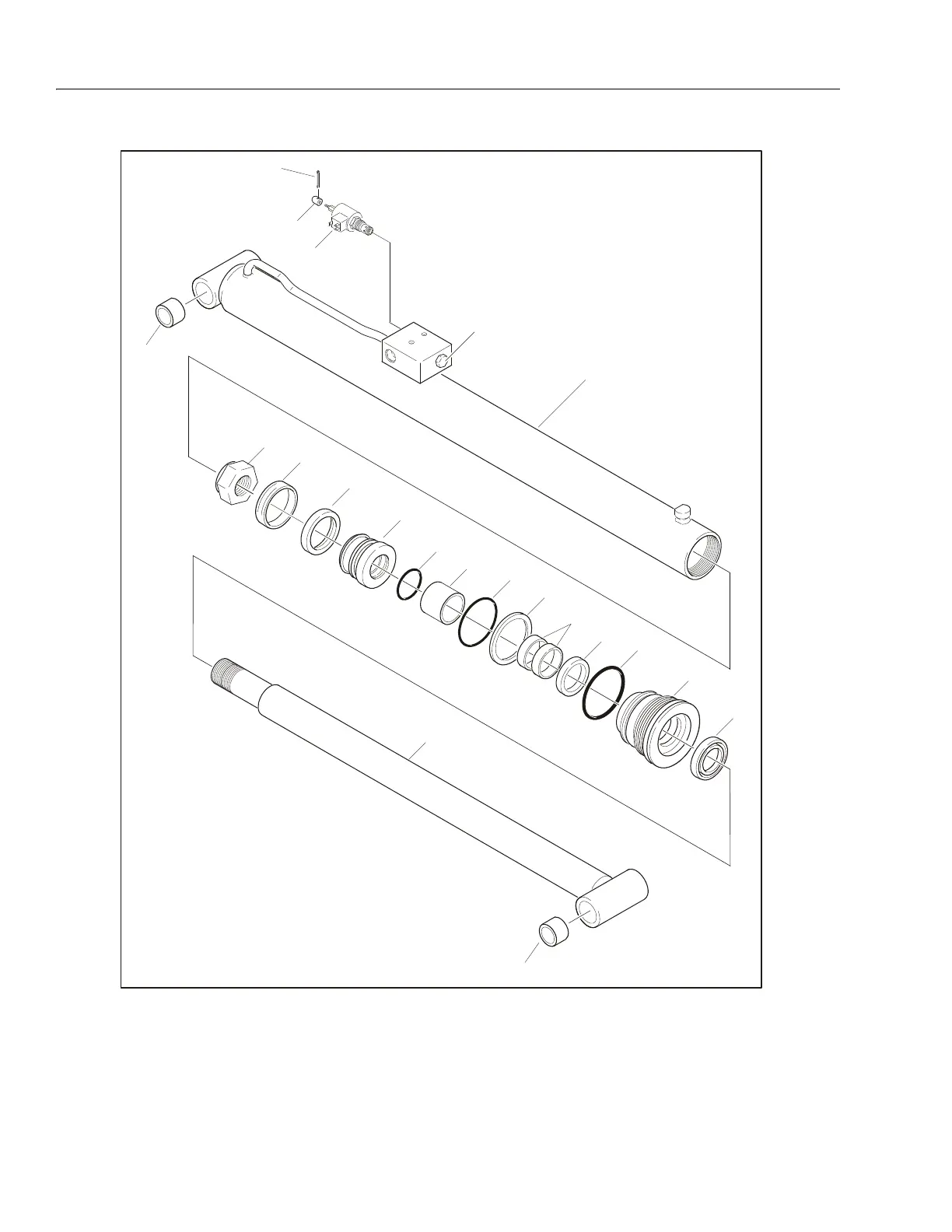

Figure 2-3. Lift Cylinder
