SECTION 2 - PROCEDURES
2-32 3121801

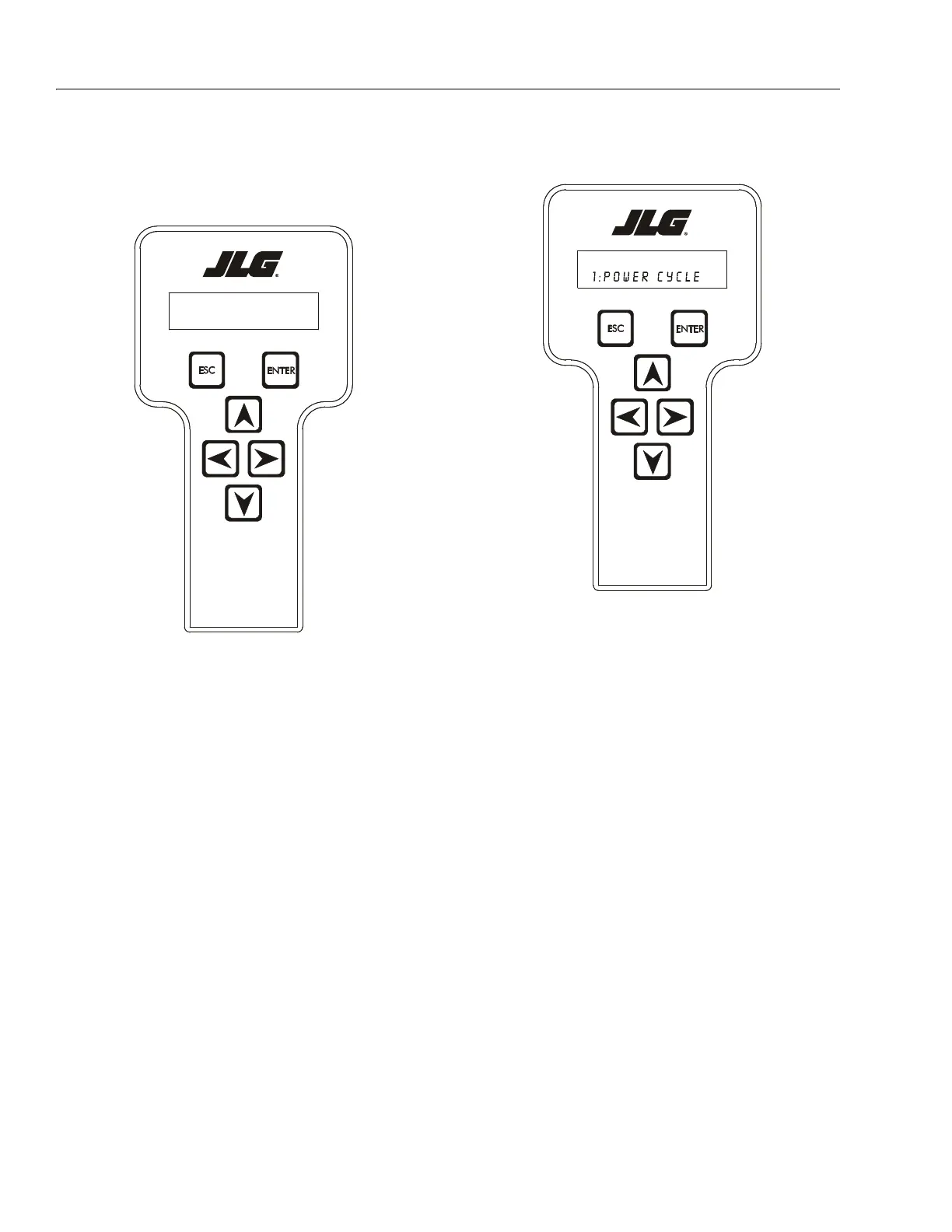

Using the Analyzer
With the machine power on and the analyzer connected prop-
erly, the analyzer will display the following:
HELP:
PRESS ENTER
At this point, using the RIGHT and LEFT arrow keys, you can
move between the top level menu items. To select a displayed
menu item, press ENTER. To cancel a selected menu item,
press ESC; then you will be able to scroll using the right and
left arrow keys to select a different menu item.
The top level menus are as follows:
HELP
DIAGNOSTICS
ACTIVATE TESTS
ACCESS LEVEL
PERSONALITIES
MACHINE SETUP
LEVEL VEHICLE
If you press ENTER, at the HELP:PRESS ENTER display, and a
fault is present during power up, the analyzer display will scroll
the fault across the screen. If there was no fault detected dur-
ing power up, the display will read: HELP: EVERYTHING OK
If ENTER is pressed again, the display moves to the following
display:
LOGGED HELP
1: STARTUP (2/1)
At this point, the analyzer will display the current fault, if any
are present. You may scroll through the fault logs to view what
the last 15 faults were. Use the right and left arrow keys to
scroll through the fault logs. To return to the beginning, press
ESC two times.
When a top level menu is selected, a new set of menu items
may be offered; for example:
PLATFORM
DRIVE
LIFT SEL
SPEED SEL
HORN
ENGINE START
FUEL/GLOW
STEER LEFT
STEER RIGHT
JOYSTICK
Pressing ENTER with any of the above displayed menus, will
display additional sub-menus within the selected menu. In
some cases the next level is the parameter or information to
be changed. Refer to the flow chart for what menus are avail-
able within the top level menus. You may only view the per-
sonality settings for selected menus while in access level 2.
ME N U :
HELP: PRESS ENTER
