SECTION 2 - PROCEDURES
3121801 2-27
2.17 TILT SENSOR
Tilt Sensor, JLG P/N 4000006:
TILT SENSOR REMOVAL:
NOTE: Refer to Figure 2-26., Tilt Sensor Removal for numbers in
parenthesis.
1. Disconnect the batteries.
2. Open the Ground Control Box to gain access to the Tilt
Sensor Assembly.
3. Remove the four Screws (2) and Lockwashers (3) to
remove the Tilt Sensor (1) from the Ground Control Box.
NOTE: Follow the above procedures in reverse order when install-
ing the tilt sensor assembly. After installing, be sure to cali-
brate the tilt sensor (refer to Section 2.18, Calibrations).

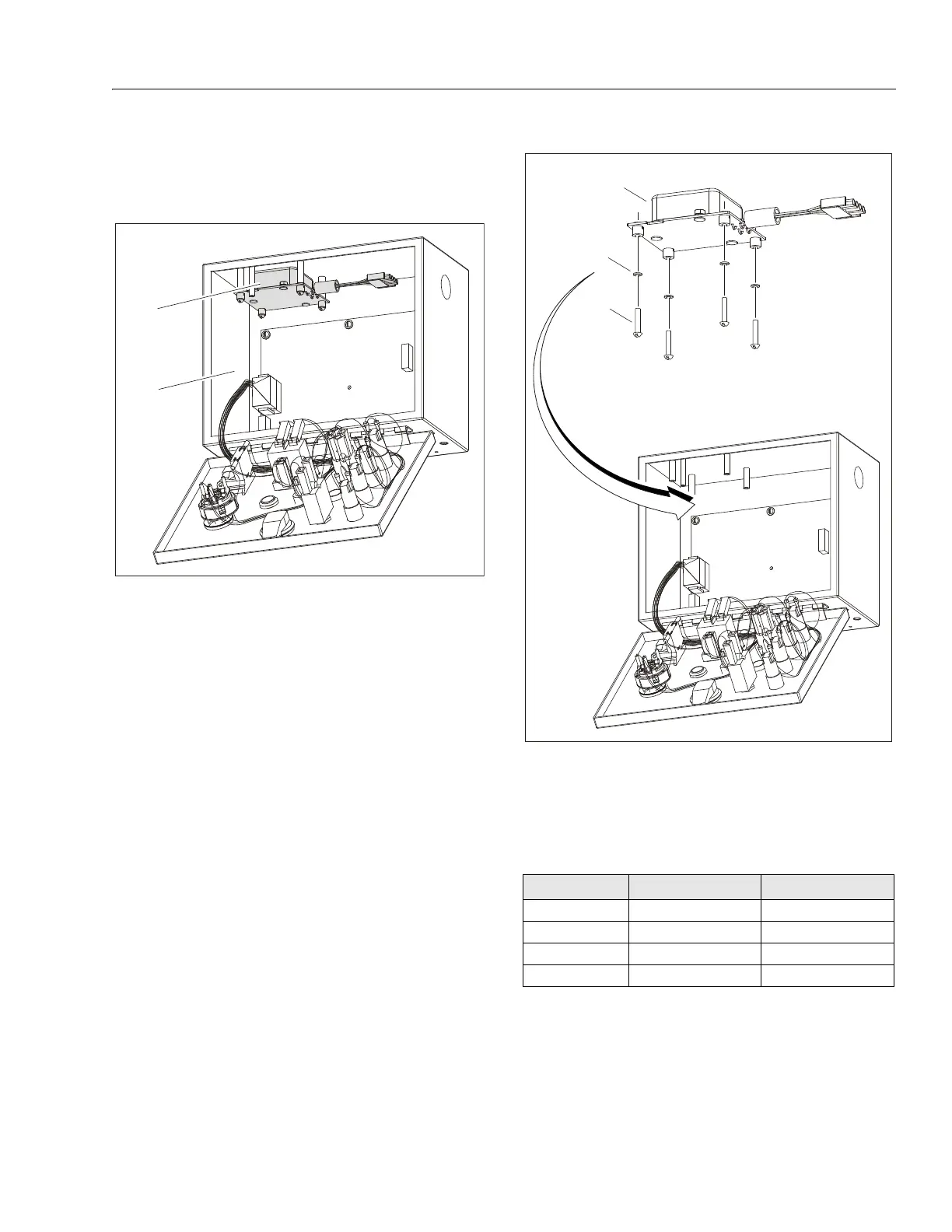

Figure 2-25. Tilt Sensor Location
1. Ground Control Box
2. Tilt Sensor (JLG P/N 4000006)
Table 2-8. Tilt Sensor Harness Chart
Wire Color Function Connector Pin
Red VCC 1
Black Ground 4
Blue PWMX 2
Yellow PWMY 3
Figure 2-26. Tilt Sensor Removal
1. Tilt Sensor (JLG P/N 4000006)
2. Screw, 6-32 x 3/4
3. Lockwasher
To Next Page
