JLG 260MRT - Leveling Jack Assembly

SECTION 2 - PROCEDURES
3121801 2-17
1. Barrel
2. Counter Balance Valve
3. Check Valve
4. Plug
5. Nut
6. Locking Screw
7. Flatwasher, 1 1/4" Narrow
8. Guidelock
9. Polyseal
10. Piston
11. O-Ring
12. Spacer Tube
13. O-Ring
14. Wear Ring
15. Head
16. Hydrolock
17. Wiper Seal
18. Cap
19. Rod
20. Plate
21. Trailer Ball
22. Jack Pad
23. Retainer Ring
24. Bolt

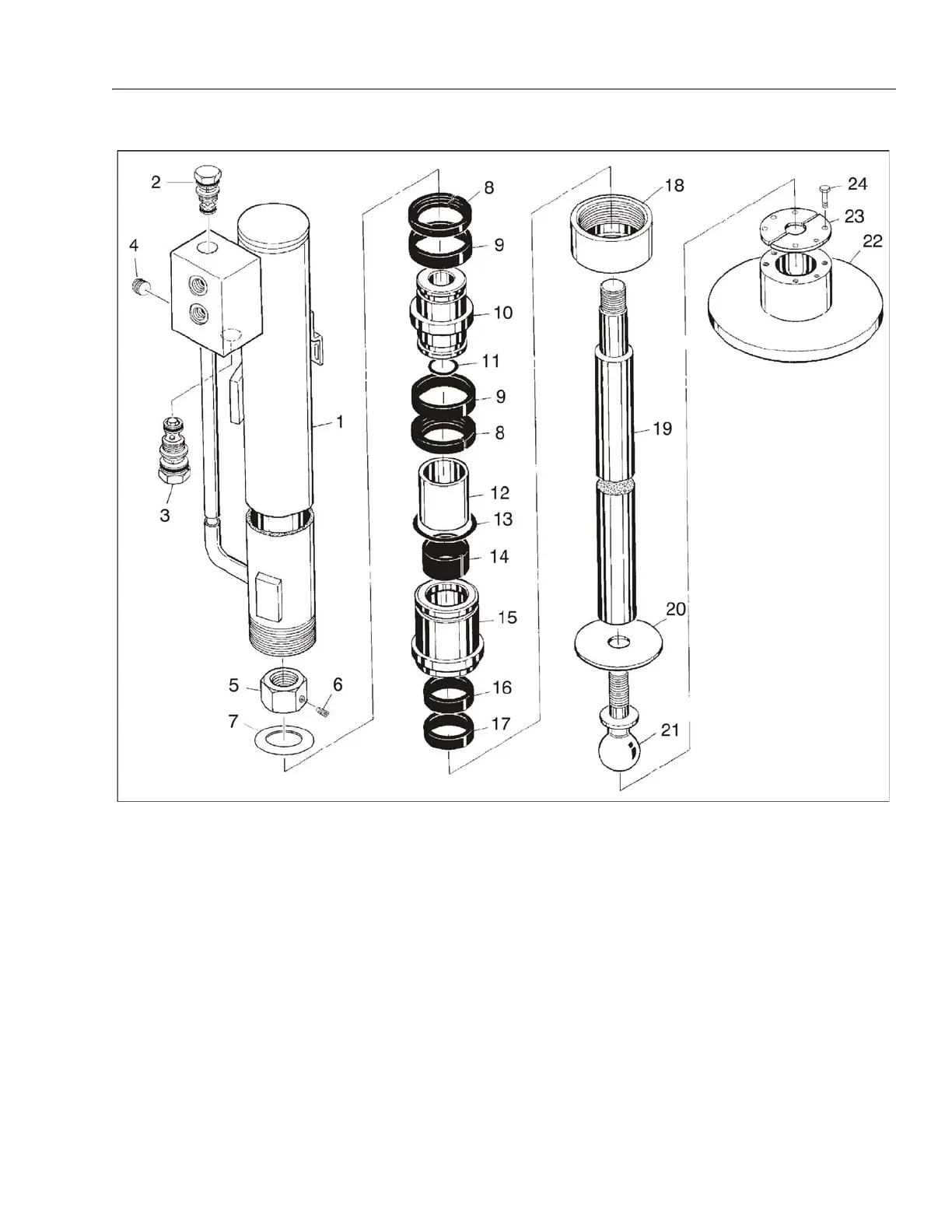

Figure 2-17. Leveling Jack Assembly - (Prior to S/N 105371)
