JLG 260MRT - Main Valve Components

SECTION 2 - PROCEDURES
3121801 2-21
Main Valve Components
.
1
2
3
4
5
6
7
8
9
10
11
12
1. Tow Brake Release Acuator
2. Valve Knob
3. Brake Solenoid
4. Dump Valve
5. Lift Relief
6. Steer Relief (Right)
7. Main Relief
8. Steer Relief (Left)
9. Steer Solenoid (Right)
10. Lift Solenoid
11. Steer Solenoid (Left)
12. MP

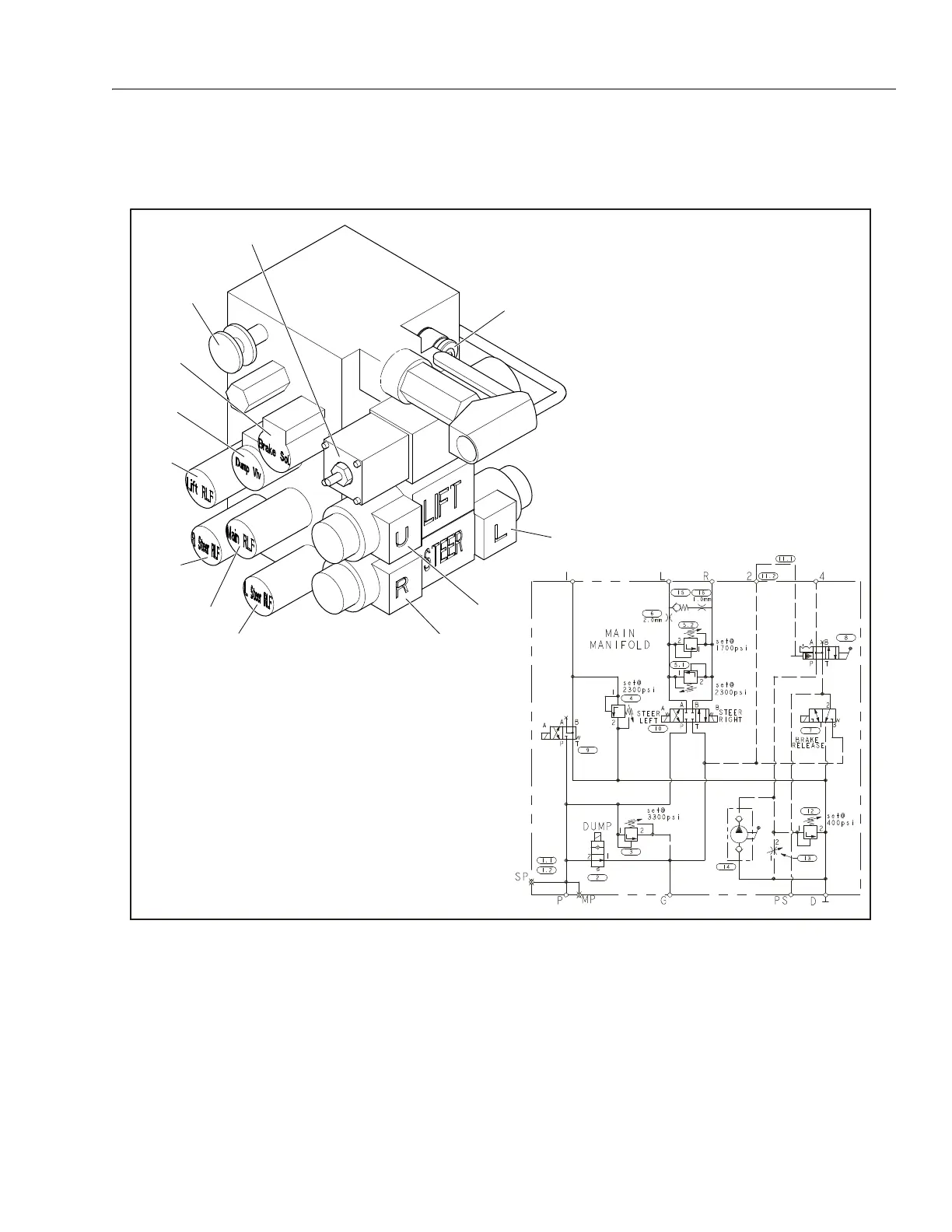

Figure 2-20. Valve Components
