SECTION 2 - PROCEDURES
3121801 2-25
2.16 JOYSTICK CONTROLLER

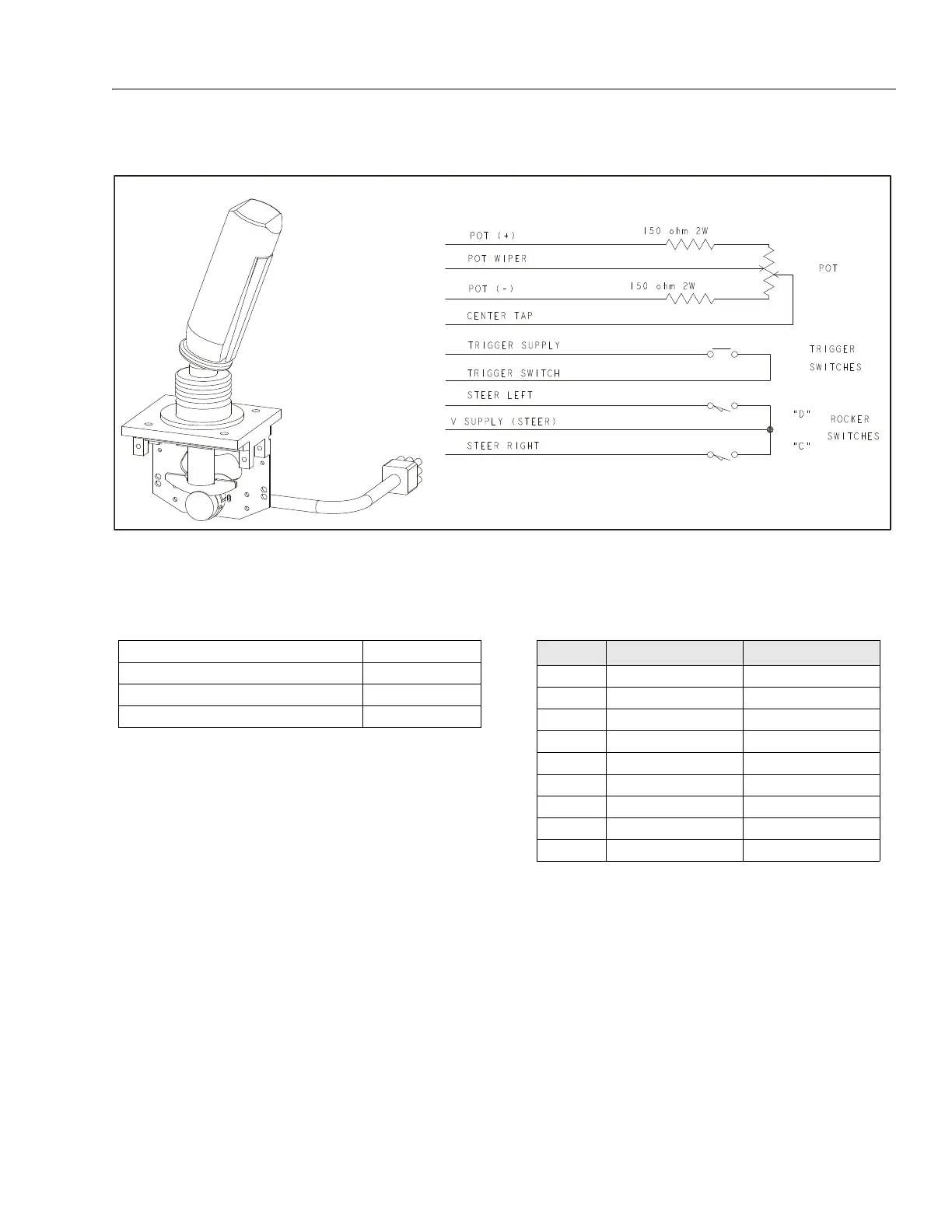

Figure 2-23. Joystick Controller - (JLG P/N 1600308)
Table 2-4. Joystick Specifications
Input Voltage 4.3V (±0.1V)
Centered Output Voltage 2.2V (±0.1V)
Full Positive (Rev) Deflection Output Voltage 4.0V (±0.1V)
Full Negative (Fwd) Output Voltage 0.4V (±0.1V)
Table 2-5. Joystick Plug Loading Chart
Terminal Color Function
1 Yellow Steer Right
2 Green Steer Left
3Brown Pot Wiper
4 Red Handle Common
5N/A Not Connected
6White/Red Pot (+)
7 Violet Trigger Switch
8 Blue Trigger Supply
9White/Black Pot (-)
