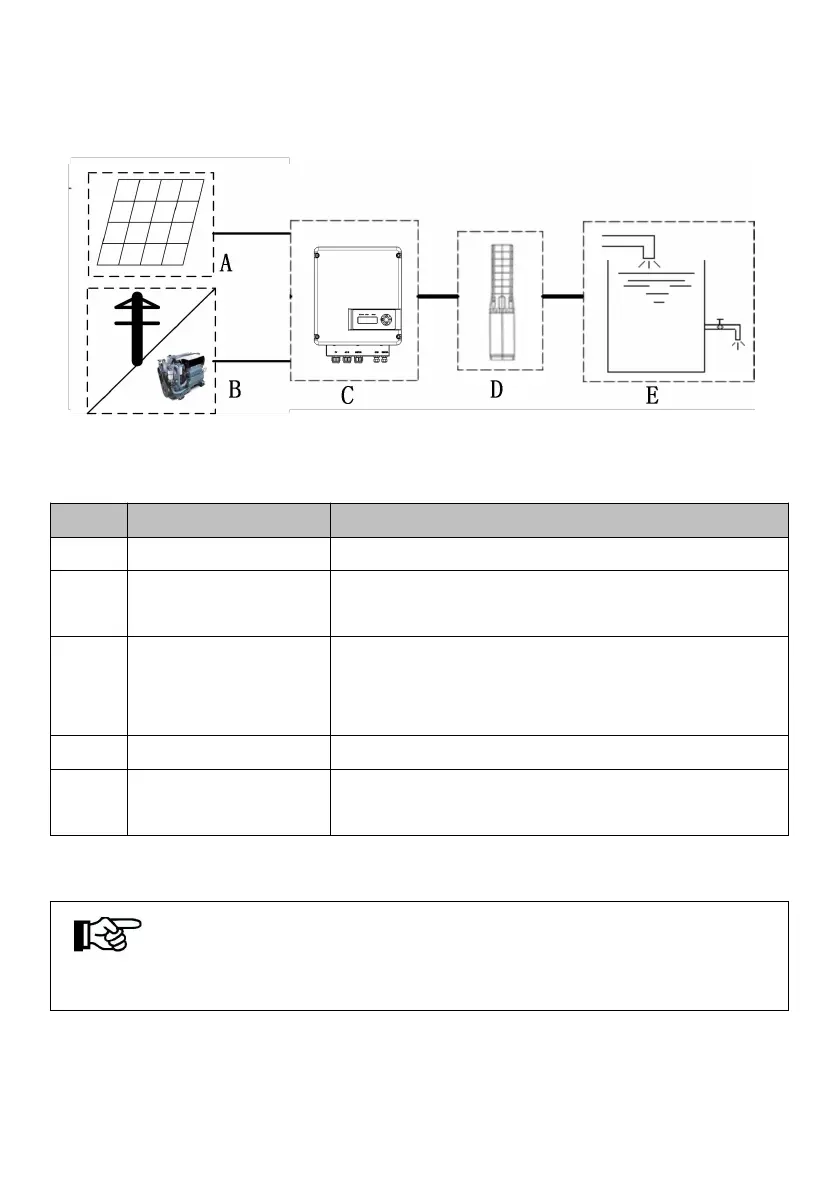

Figure2-1 Solar pumping application system
Table2-1 Solar pumping application system list
No.
Name
Description
A
PV array
Monocrystalline silicon, Polycrystalline silicon.
B
Grid/Diesel
generator
Single phase AC source.(see the appendix of
each model for specific requirements)
C
Solar pump inverter
JNP2K2L-V5,JNP3KL-V5,JNP3K7L-V5,
JNP4KL-V5.
D
AC pump
Single phase or three phase AC pump.
E
Water storage
device
Can be the reservoir, fields etc.
Note
!
When the photovoltaic water pump system is configured, it is necessary to
