Jntech JNP2K2L-V5 - Production Dimensions

18
connection terminal (SERSOR) and communication
terminal(COM) under the cover.
3
Machine serial
No.
The serial number of the inverter, should be provided
during after-sales service
4
Nameplate
The basic parameters of the inverter are listed on the
name plate
5
Hanger
Used to hang the inverter on the bracket.
6
Radiator
Help the machine to dissipate heat. The temperature
of the inverter is high during operation. DO NOT
touch it!
2.2.2 Production Dimensions

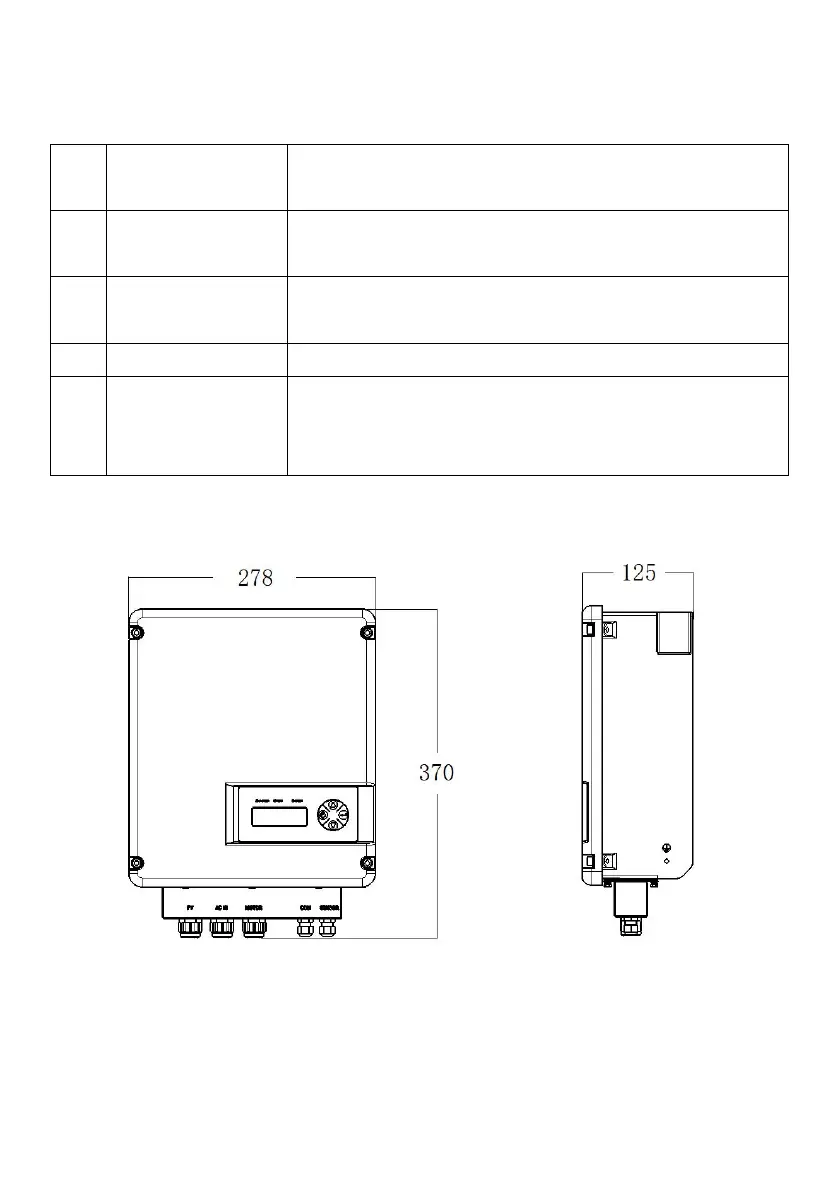

Figure2-3 Dimension drawing of Solar Pump Inverter (unit : mm)
