42
6.6.1 Water level sensor interface define
Water level sensor connector pins in inverter panel port are defined as below:

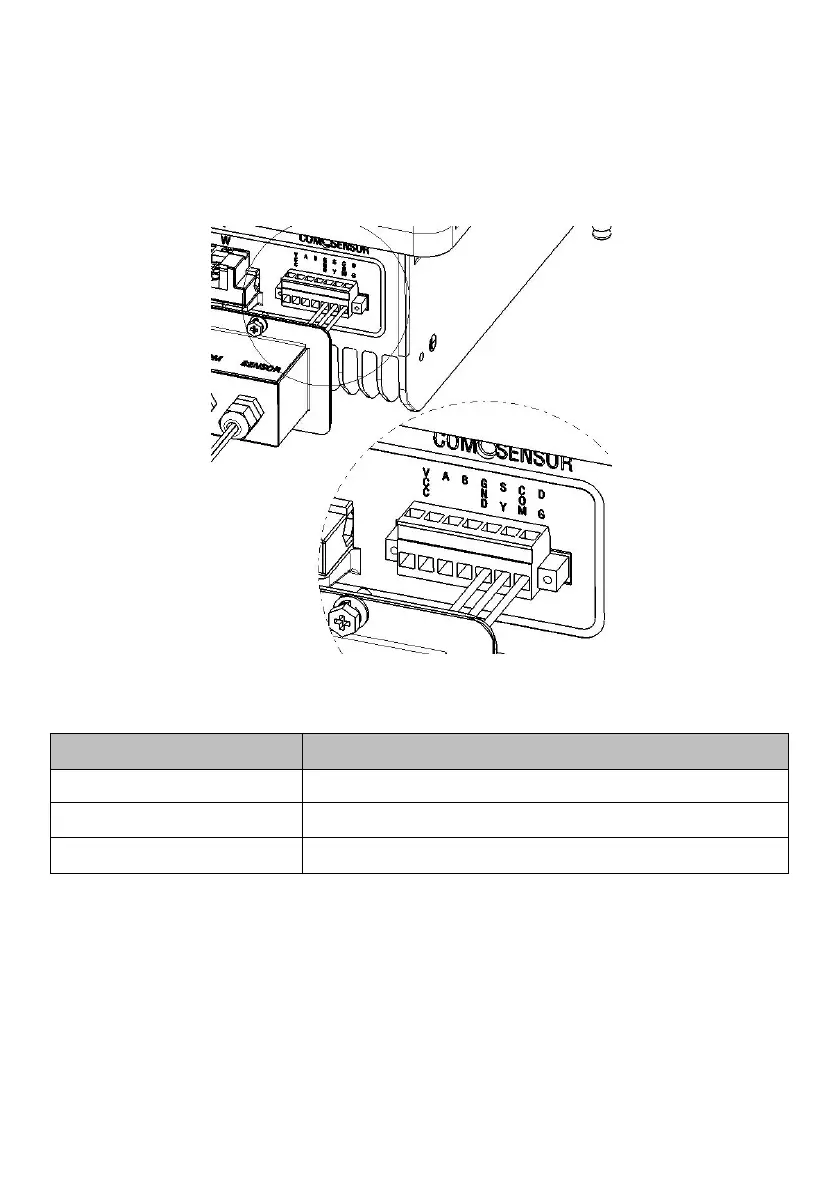

Figure6-5 Water level sensor interface define
Table 6-4
Terminal（SENSOR
）
pin
Detail
DG
Dry protection pin
SY
Overflow protection pin
COM
Dry protection and Overflow protection common pin,
