2.2 Product’s Introduction
2.2.1 Appearance

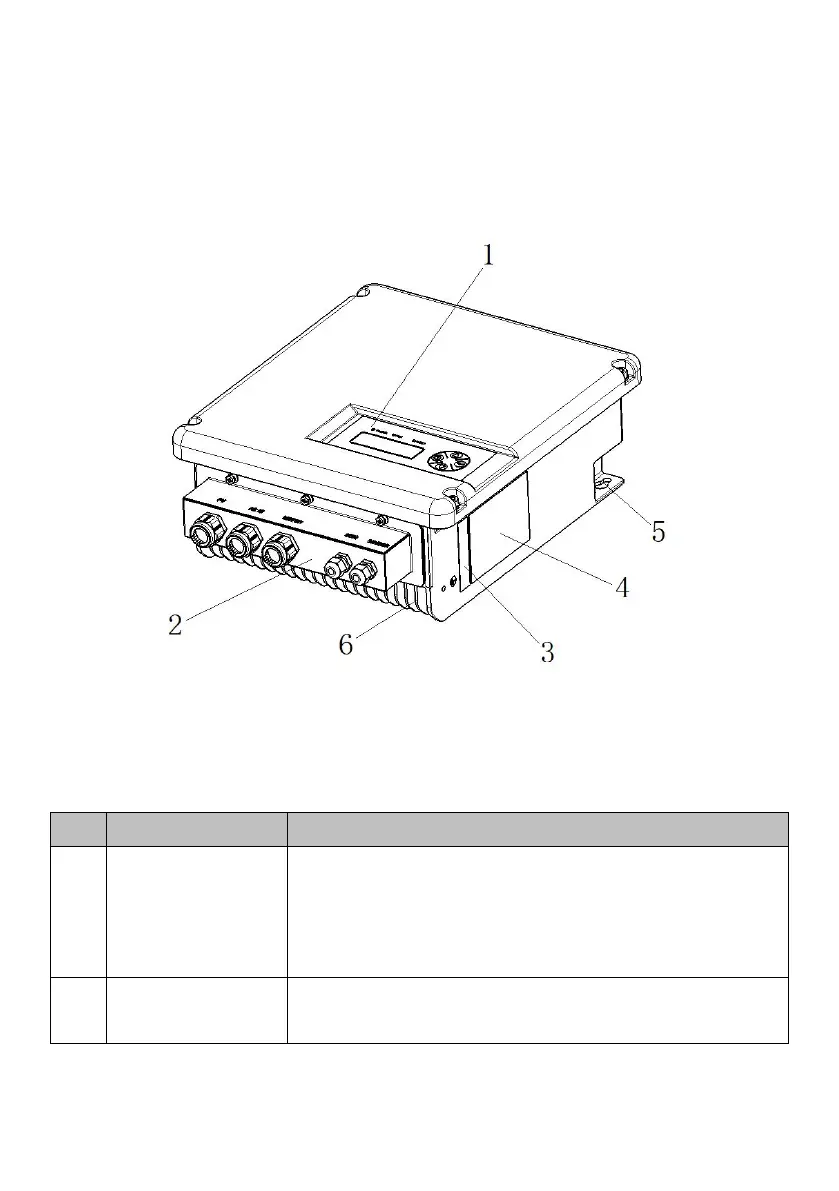

Figure2-2 Appearance of Solar Pump Inverter
Table2-2 Inverter appearance information table
No.
Name
Introductions
1
LCD display
screen
Man-machine interface, you can check the inverter
operating information through LCD display screen,
also can set some function and parameters of
inverter.
2
Terminals Cover
Including DC input terminal (PV+ 、 PV-);AC input
terminal(AC IN); output terminal (MOTOR); sensor
