Note!
●
Fix the inverter on the rock or panel with the toggle bolt or screw is not
permitted.
● Supplier would provide the bolt which suitable for the installation on the
concrete wall.
● If the inverter is fixed on the wooden wall, please choose suitable bolt to
finish the installation, the bolt length should be enough and penetrate the
1/2 depth of the walls.

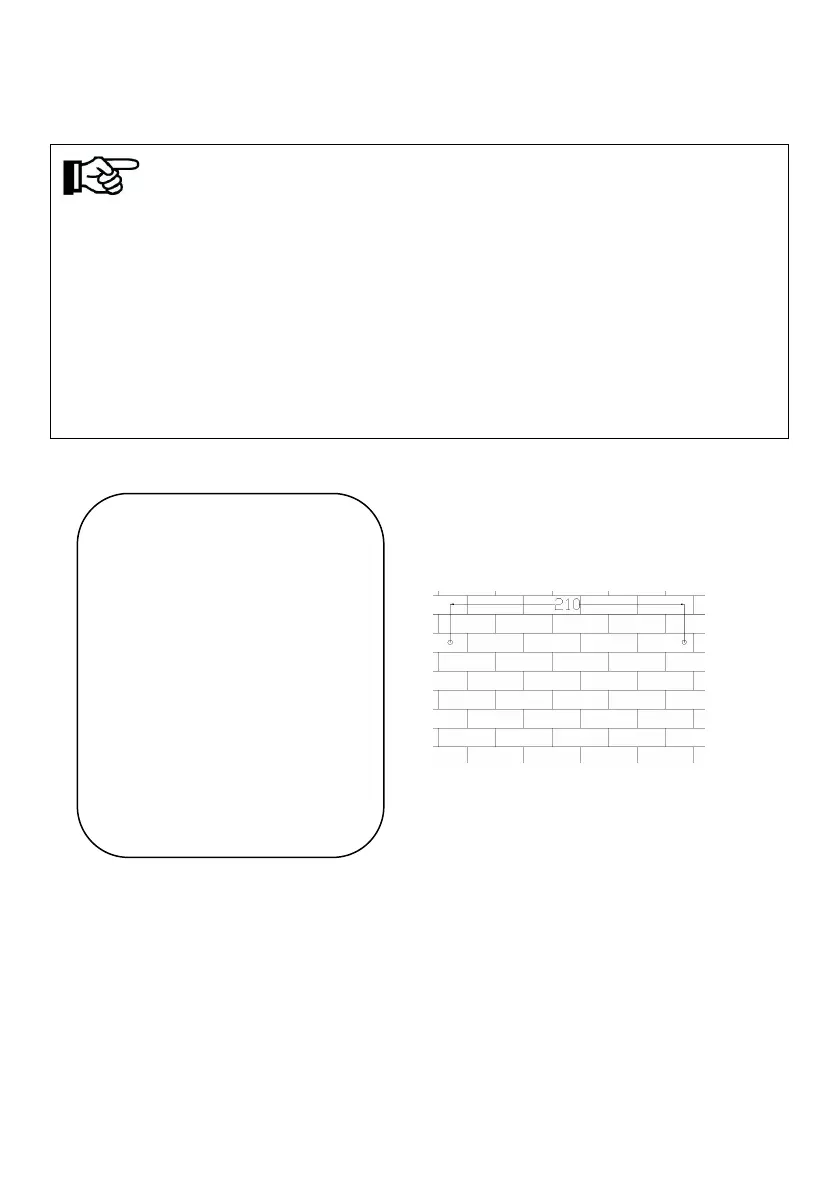

Step1:
According to the size of the
inverter, select a suitable
position on the wall, and it
is recommended to drill
8+1/-0mm in diameter,
60+5/-0mm in depth and
210mm in spacing. Drive
the expansion bolt into the
hole.
