communication terminal, and the output terminal wire is connected to the
monitoring equipment (computer).

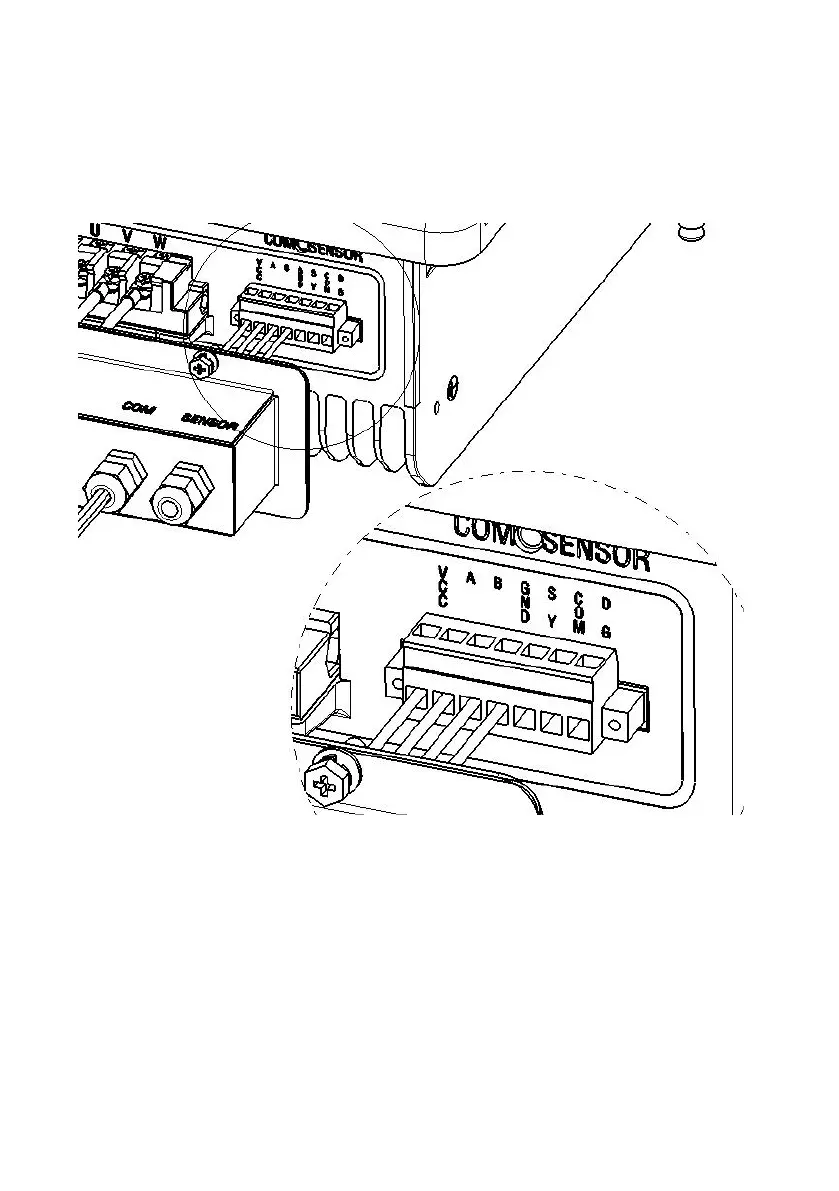

Figure6-10 Communication connection terminal
The com part of the machine panel and the water level sensor use the same terminal
block, and the pin definitions are shown in the table below:
