Installation Instructions
Operator’s Manual QUADRIGA 1000/BB
ii-1
i-1
a
b
i. Installation requirements.
WARNING: THE INSTALLATION SHALL BE CARRIED
OUT ONLY BY QUALIFIED PERSONNEL AND WITHIN
THE SCOPE OF THE INSTRUCTIONS PROVIDED IN
THIS MANUAL.
Install the machine in a covered and dry area.

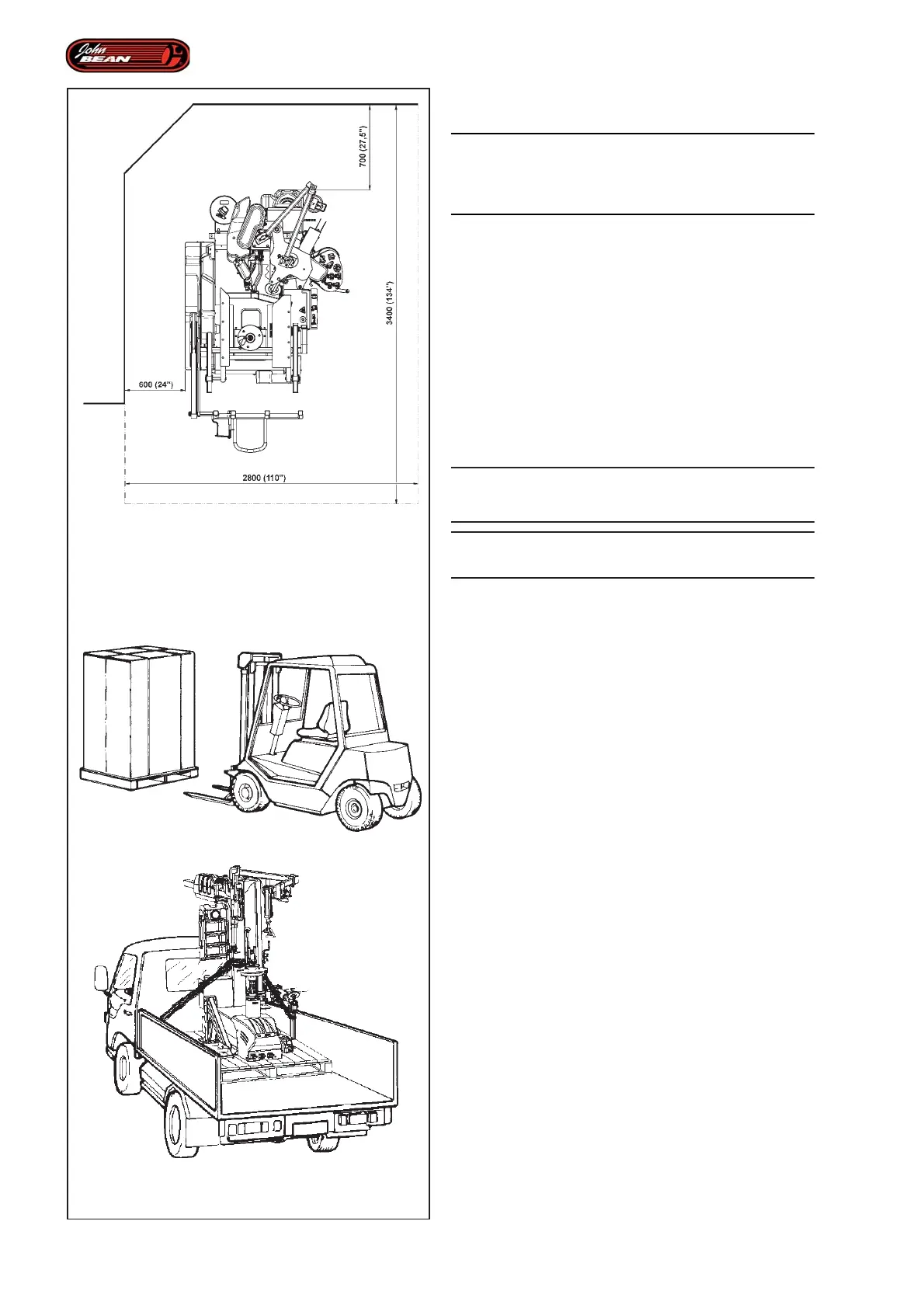

Fig.i-1
The installation of the machine requires a free space
of at least 3,4 x 2,8 m (134"x110").
Make sure that from the operating position the user
can see all of the machine and the surrounding area.
The operator shall forbid, in such an area, the
presence of non authorized persons and of objects
which may create possible hazards.
WARNING: THE OPERATOR IS RESPONSIBLE FOR
MACHINE OPERATION AND FOR RESTRICTING AC-
CESS TO THE WORK AREA.
WARNING: ONLY THE OPERATOR MAY ACCESS
THE WORK AREA.
The machine shall be installed on a horizontal floor,
preferably even. Do not install the machine on a weak
or irregular floor.If the machine is installed on a raised
floor, the floor must have a capacity of at least 10000
N/m² (1000kg/m² or 205 lbsxsqft).
The device does not have to be fixed to the ground.
But we suggest that you do secure it to the ground
using appropriately sized screw anchors.
ii. Transport - Unpacking - Handling
the machine
Carriage instructions
The machine is crated in a corrugated box of appropriate
strength. Everything is then mounted on a pallet.The
machine must be moved with an appropriate lifting
device (fork lift) (a - Fig.ii-1).The machine can be
alternatively mounted on the pallet with the column
assembled. In such a case the machine must be
anchored to the transportation vehicle with a belt of
appropriate strength rolled around the column (b - Fig.ii-
1).
