Specifications
Operator’s Manual QUADRIGA 1000/BB
2-1
2.0 Specifications
Electric-hydraulic-pneumatic tire changers for motor
vehicle, SUV and light truck Tubeless wheels.
Weight with standard accessories ...820Kg (1808 lbs)
Electric Specifications:
EU........…......….....….......……230V AC, 1Ph, 50Hz
USA.................................…....220 Vac, 1Ph, 60Hz
Chuck Motor power:.....................0.9 kW (1.2 HP)
Max. chuck torque.... ............Nm 1500 (1106lbfxft)
Chuck rotation speed........……................7-14 rpm
Capability.......….....…......…...........….........12-30"
Max. wheel diameter.......….....….1200 mm (47.2")
Max. rim width.......….......…………...432 mm (17")
Minimum rim centre hole.....…..................40 mm
Acoustic pressure........……………...…....<70 dB(A)

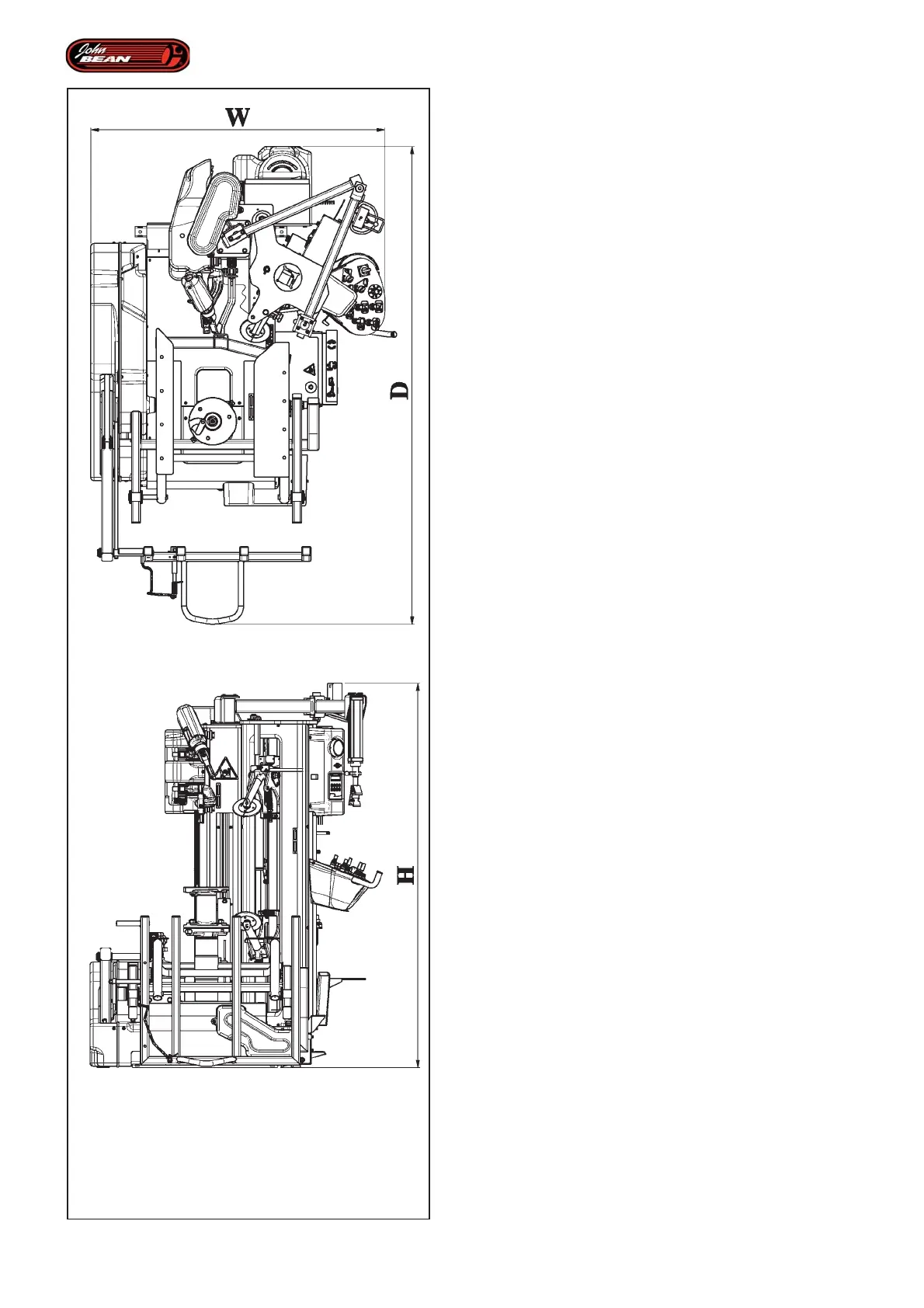

Fig. 2-1
Dimensions (H x D x W), expressed in mm and inches.
Version w/wo Tubeless tires Beading device.
W min. = 1290 – 50,8"
W max. = 1350 – 53,1"
D = 2240 – 88,1"
H = 1850 – 72,8"
2.1 Conditions
During use or prolonged storage, conditions must never
be outside:
Temperature range from 0 to 50 °C
Humidity range from 10 to 90%,
without condensation
