Operator’s Manual
Safety
QUADRIGA 1000/BB
1.2-1
0.0-1
1.2 Safety Devices
WARNING: DO NOT BYPASS ANY SAFETY
FEATURES.
This machine has several protectors and devices to
prevent compression or crushing hazards.
List of safety devices:

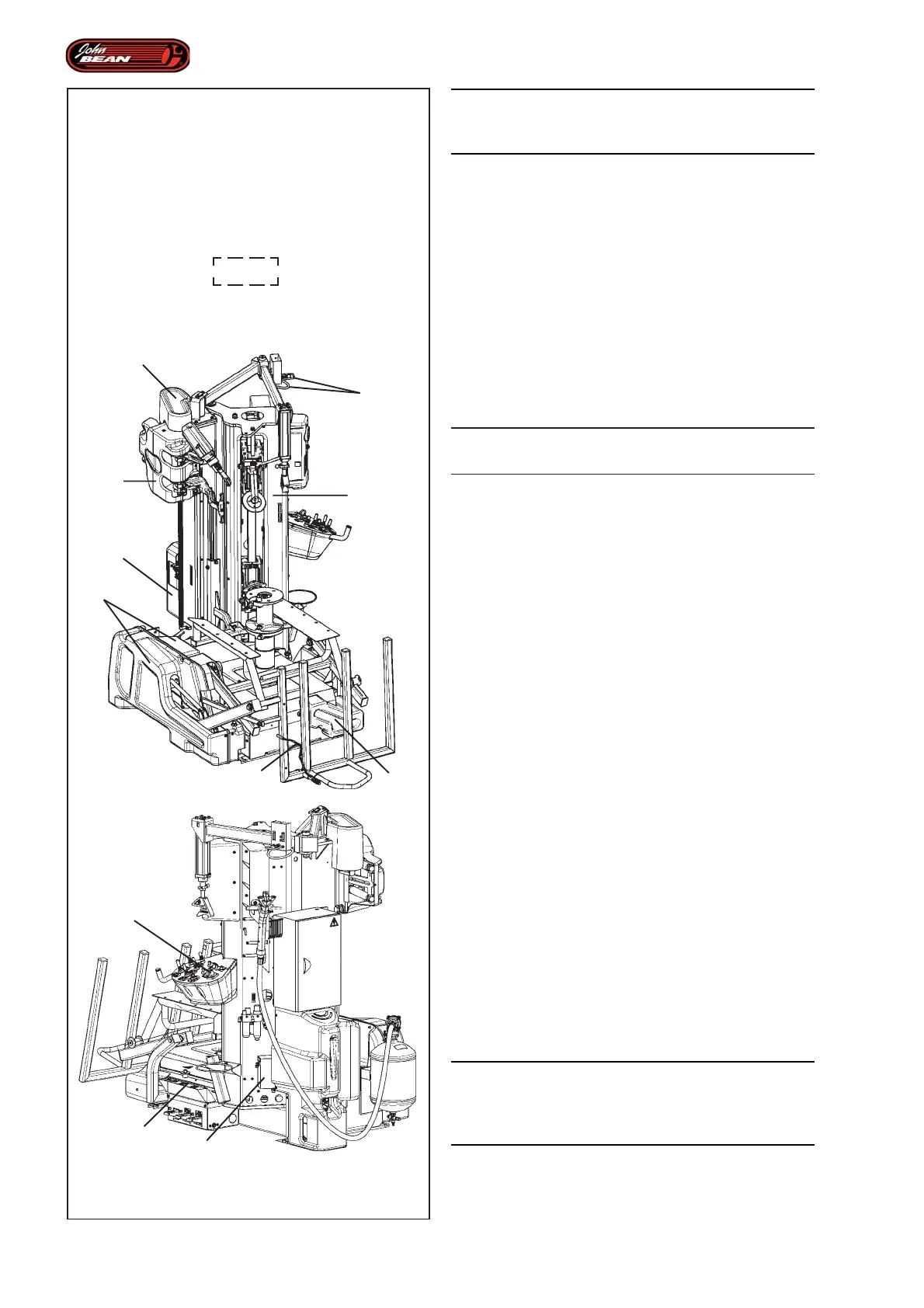

Figura 1.2-1
1. lifter guard
2. anti-lift device
3. motor drive guard
4. upper cover
5. pedal control guard
6. control lever guard
7. power supply cut-out device
8. solenoid valve guard
9. bead breaker guard
10.beading device limiter
11.demounting tool carriage guard
- The rotation speed of the chuck has been limited to a
maximum of 7-14 rpm to prevent dragging or entrapping
hazards.
- Rotation of the turntable is automatically inhibited
when the main switch is off (position 0) as well as the
pre-positioned pedal control release.
WARNING: IN THE EVENT OF MALFUNCTION OR
BREAKAGE OF ONE OF THE SAFETY DEVICES,
DO NOT USE THE MACHINE AND CONTACT THE
ASSISTANCE SERVICE TO RESTART.
WARNING: STRESSES THAT THE FOLLOWING
ACTION MAY CAUSE (SEVERE) INJURY TO THE
OPERATOR OR OTHERS.
• Bulleted list:
• Indicates that the action must be executed by the
operator before being able to go to the next step in the
sequence.
A dotted line around the number of the figure indicates
that this is a duplicate from a previous section.
4
3
1
7
5
10
6
11
2
8
9
