Operator’s Manual
Operations
QUADRIGA 1000/BB
5.2-5
5.2-6
5.2-7
4.1-1
1
2
4
3
5
6
8
7

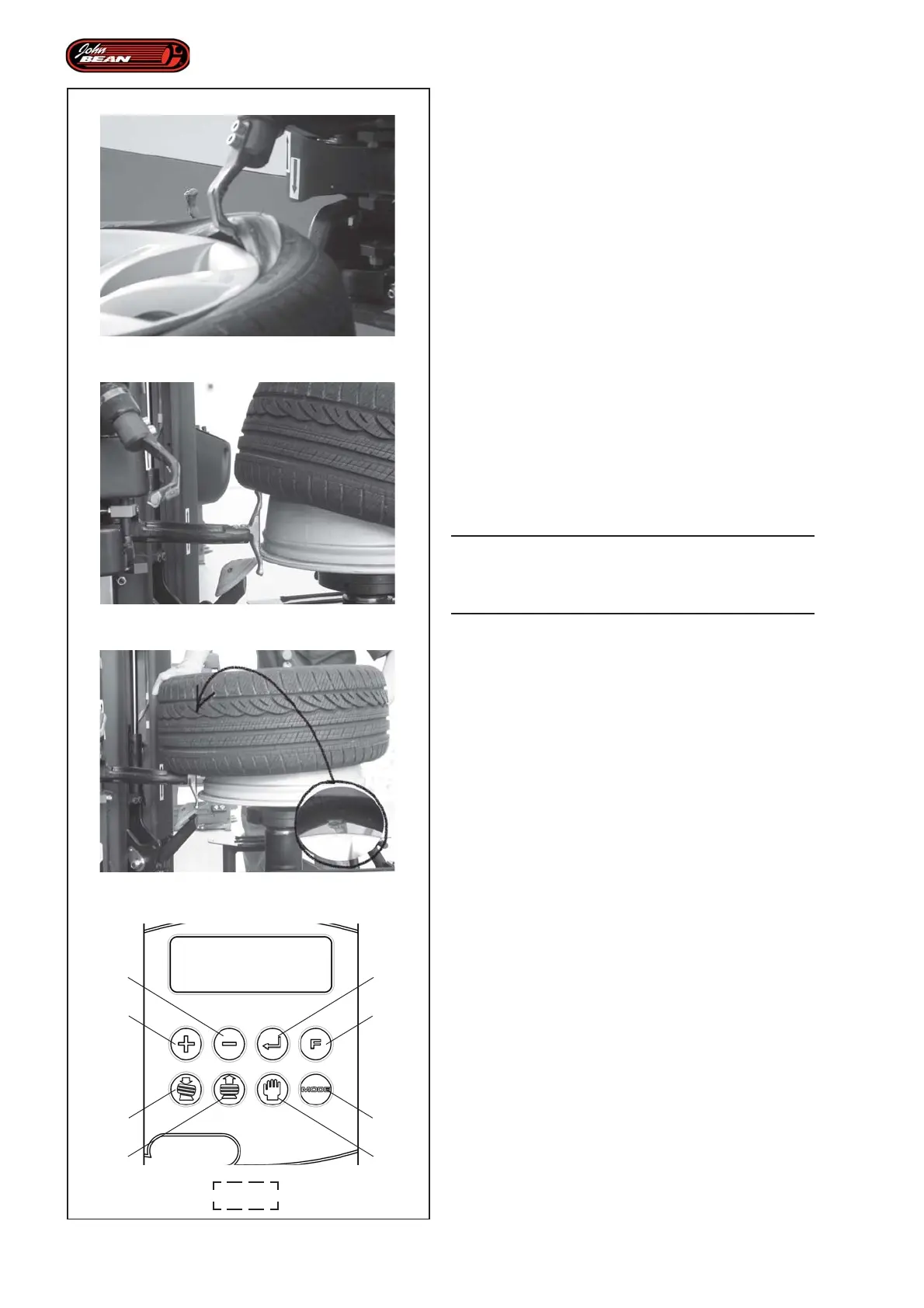

• Activate rotation using the pedal commands, to
position a pressure sensor (if included) correctly next
to the tool.
Note: In this case the pedal rotation command is
enabled to consent positioning.
• Activate the lever and keep it activated to extract the
upper bead (Fig.5.2-5).
Note: If there is excessive force in the bead
extraction movement the automated
movement interruption may be triggered to
protect the electrical motor. The operation is
therefore suspended.
In such a case, to restart the operator must:
- Release the consent lever.
- Activate the lever once again.
At the fifth interruption the H17 is shown on
the display.
Press key (7 Fig.4.1-1) once to remove the
message and if necessary proceed with
further attempts.
WARNING:
STOP ROTATION AT THE RIGHT MOMENT TO
AVOID THE BEADPUSHER AIDS COLLIDING WITH
THE TOOL.
• If applied, remove the bead pusher from the wheel.
Lower bead removal procedure
• Activate the lever and keep it activated to move the
upper tool to the idle position and the lower tool under
the wheel so it can be inserted between the tire and
the rim (Fig.5.2-6).
The machine stops automatically (and beeps).
The operator should:
• Lift the tire manually on the opposite side to the tool,
in order to hook the bead onto the tool (Fig.5.2-7).
• Activate the lever again until the tire has been
completely extracted.
• Continue with the command to enable the tools to
reach the work position for the next Tire Mounting
Program.
The machine stops automatically (and beeps).The
"MANUAL MODE" message is shown on the display.
The Automatic Demounting Program is now complete.
WARNING:
WHEN THE UNCLAMP RIM PEDAL IS PRESSED ALL
THE ACQUIRED DATA IS DELETED.
