AD-1272 Advanced Thermal Dispersion Probe Airflow Measuring System Technical Bulletin
43
20. Press ENTER. The display indicates:
21. Press UP or DOWN to scroll to the probe that are displayed on line 1 of the display with this selection. Press
ENTER. The display shows the probe data.
22. Press ENTER to view the status and values of individual sensors on the selected probe. Press UP or DOWN to
scroll through the sensors (1 through 8). Press ESC to return to the Probe Data screen.
23. Press UP or DOWN to scroll the menu display to the remaining probes, or press ESC to return to the Sensor
Management menu.
Note: In the Sensor Management submenu, press UP or DOWN to scroll to the Display Probe Data submenu
selection and press ENTER to display the probe data without going through the Probe Status submenu
selection.
24. Press UP or DOWN to scroll to Exit this Menu and press ENTER to return to the Supervisor Menu.

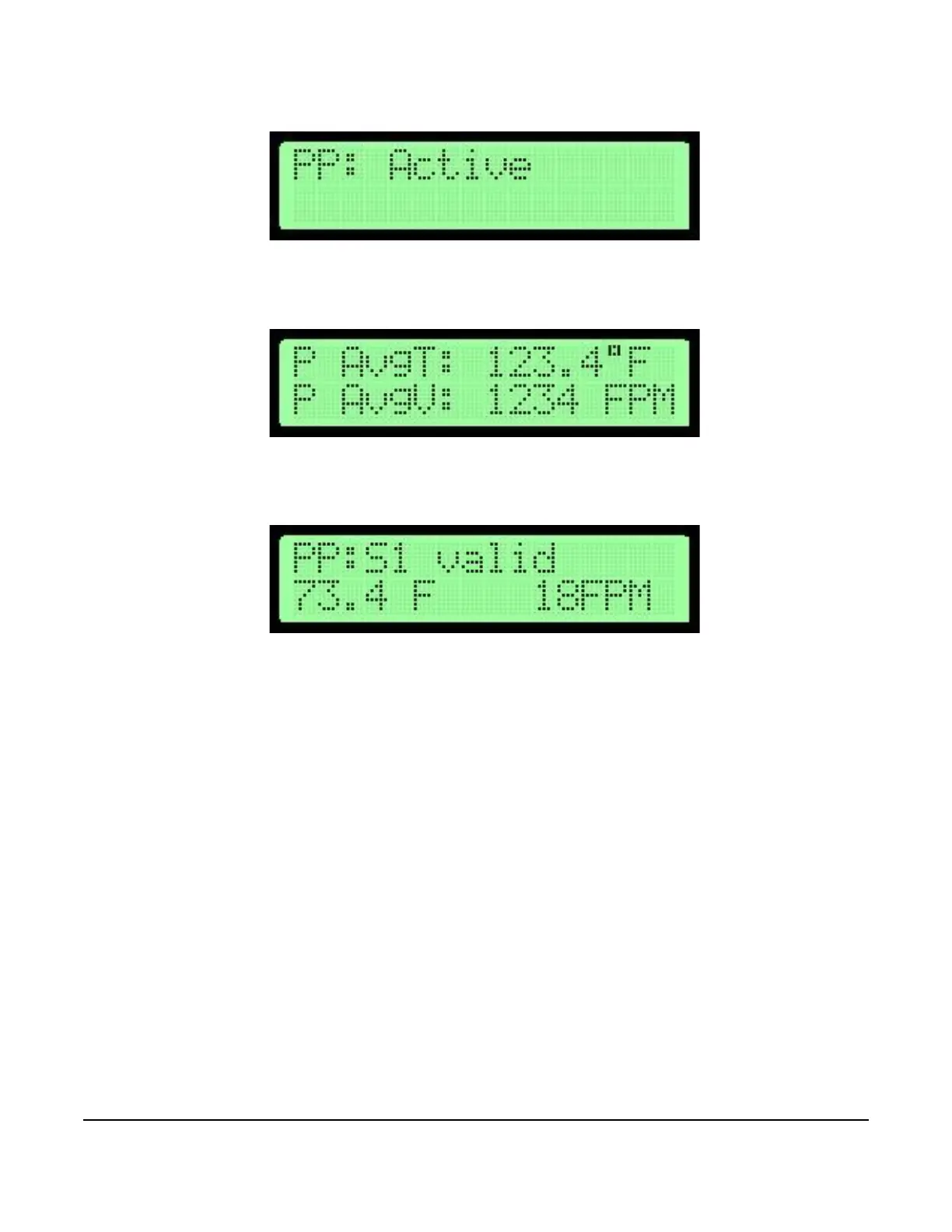

Figure 79: Active Sensors Display Screen
Figure 80: Probe Data Display Screen
Figure 81: Individual Sensor Information Screen
