Johnson Controls EasyIO FW-28 User Manual

Mounting the controller on a 35mm DIN rail
1. Mount a section of 35 mm or 1.38 in. DIN rail horizontally on the enclosure base plate.

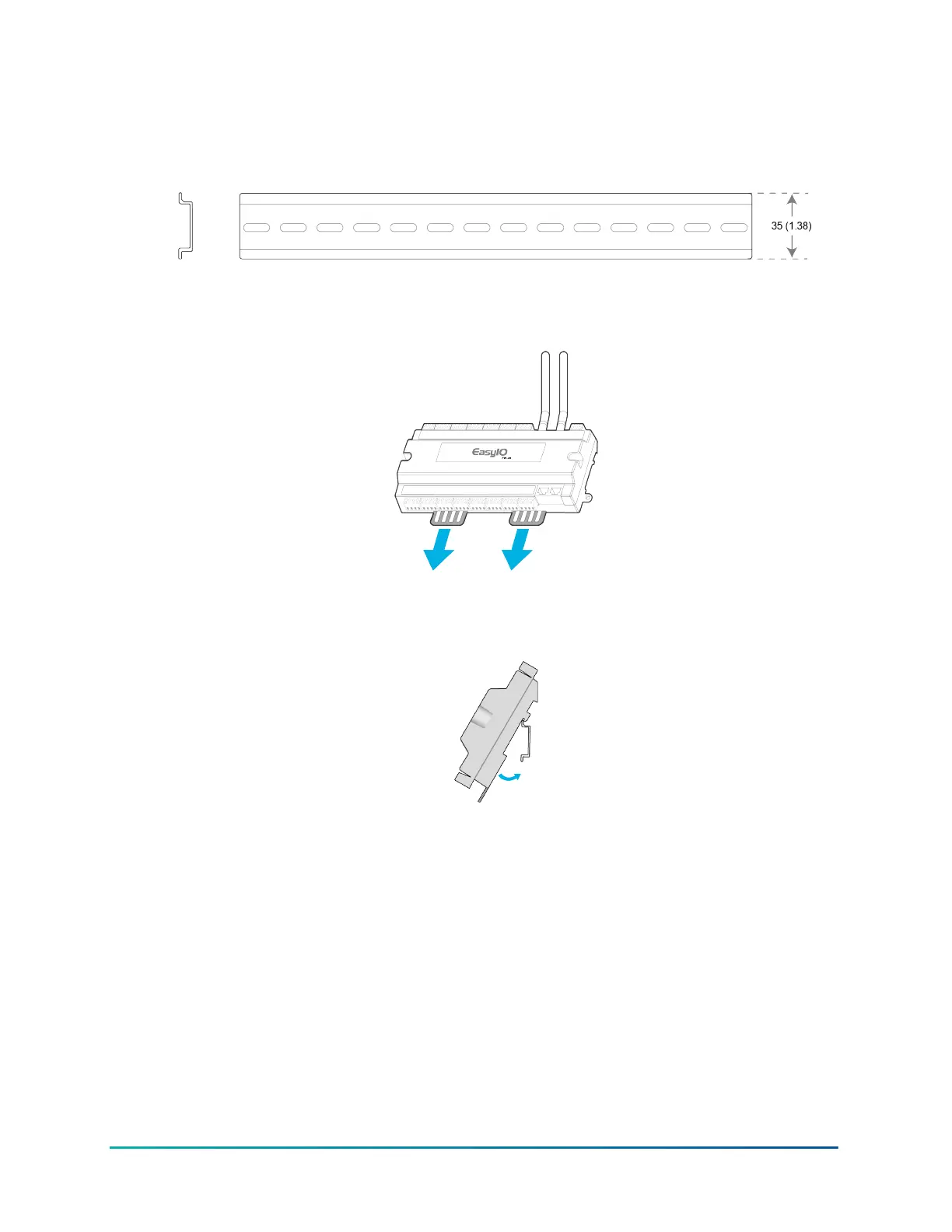

Figure 4: 35 mm DIN rail
2. On the back of the controller, extend the mounting clips.
Figure 5: Extending the mounting clips
3. Hang the top mounting clip on the DIN rail and then place the controller on the DIN rail.
Figure 6: Placing the controller on the DIN rail
4. To secure the controller to the DIN rail, close the mounting clip.
EasyIO FW-28 Quick Start Guide8
