Overview
The FW-28 is an input/output controller with IP network, Ethernet, and Wi-Fi connectivity. Use this
guide to complete the following tasks:
Understand the controller components
Mount the controller on a DIN rail or enclosure base plate
Install the antennas
View a wiring diagram of the controller in a system
Connect to the controller with a LAN or Wi-Fi connection
Connect to the controller with the CPT application
Connect to the controller's web server dashboard with CPT Graphics

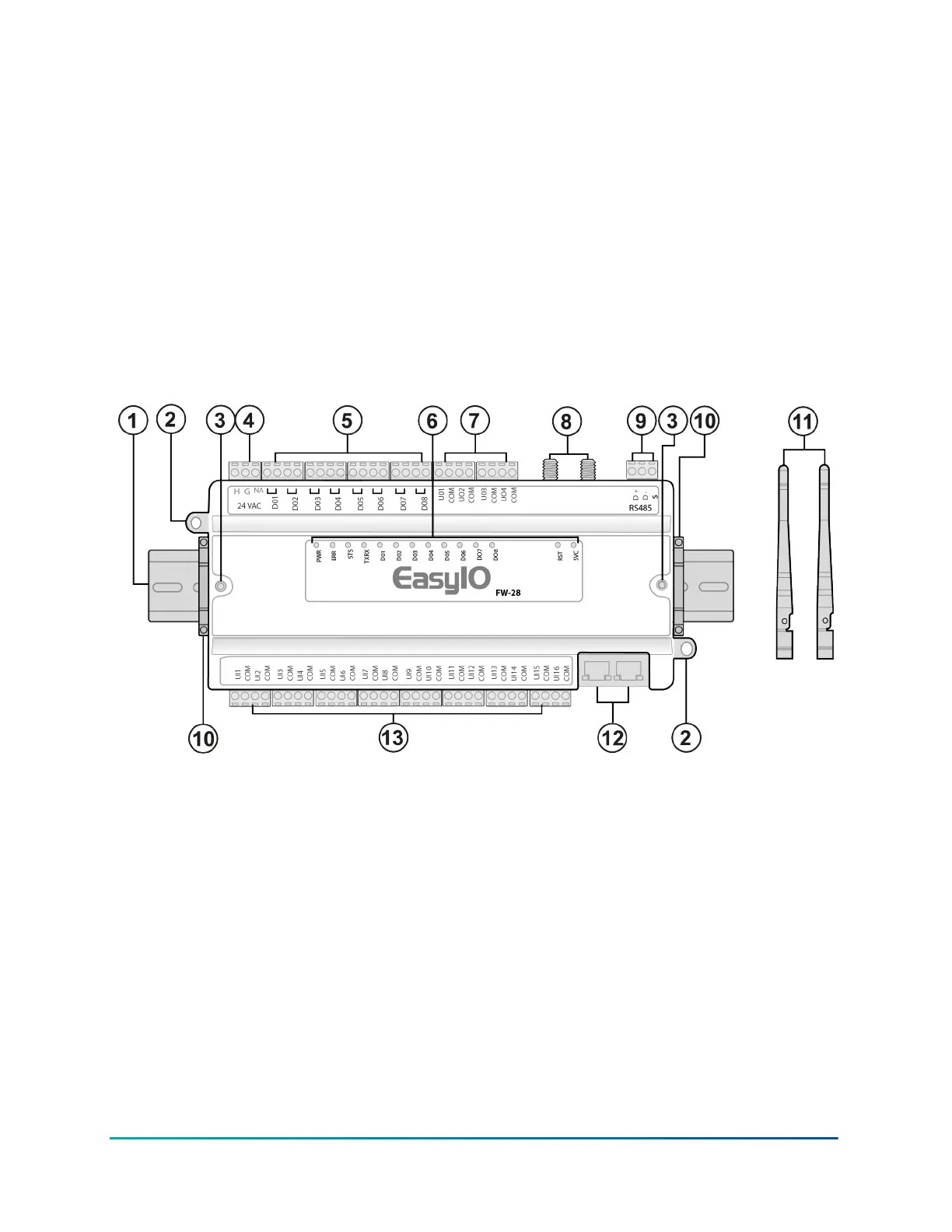

Figure 1: FW-28 legend front view
5EasyIO FW-28 Quick Start Guide
