Mounting the controller to an enclosure base plate
About this task:
If a DIN rail mount is not practical, the controller features two mounting holes to screw mount the
controller to an enclosure base plate.
1. Place the controller on the enclosure surface and mark the enclosure mounting holes on the
surface. For more information, see Enclosure mounting holes in Table 1.
2. Drill both holes in the enclosure base plate.
3. Screw the controller to the enclosure base plate.
Installing the antennas
1. Locate the two RP-SMA female jacks. For more information, see the following figure.

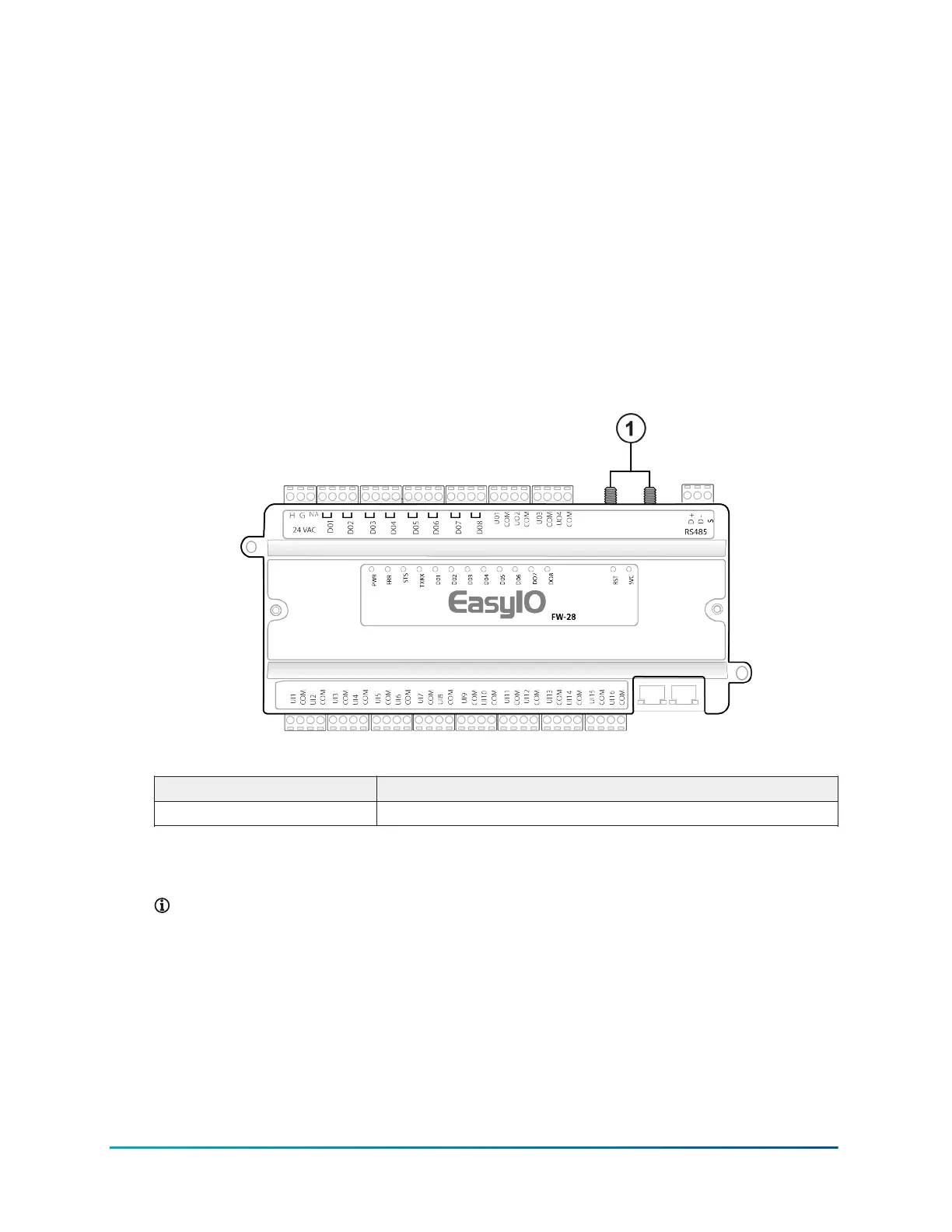

Figure 8: Locating the female antenna jacks
Table 2: Female antenna jack
Callout Description
1 RP-SMA female jacks
2. To connect the male antenna connectors to the a female RP-SMA jacks, screw on the
antennas in a clockwise direction.
Note: For a secure connection, when you tighten the antennas to the female RP-SMA
jack, hold the metal part of the RP-SMA male connector. A poor connection reduces
reception.
EasyIO FW-28 Quick Start Guide10
