1. Turn off the FIT and remove the rubber protective boot.
2. Turn the FIT over and remove the battery cover.
3. Remove the four screws holding the cover to the base as shown in Figure 28.

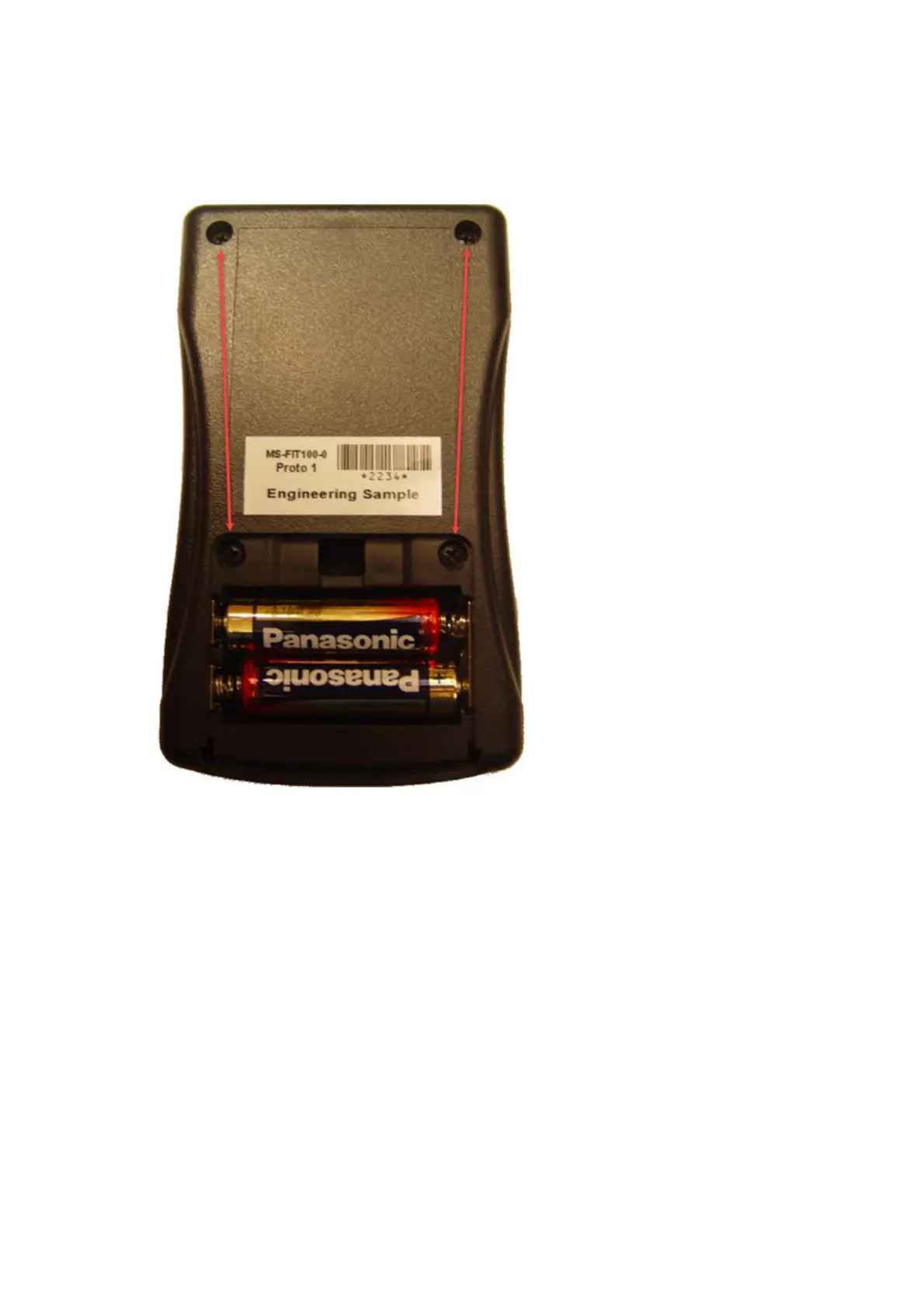

Figure 5. Back of FIT
4. Remove the top cover from the base to expose the circuit board.
5. Open the Renesas Flash Programmer software: (Start >All Programs >Renesas
Electronics Utilities >Programming Tools >Renesas Flash Programmer V3.01.00
>Renesas Flash Programmer shown in Figure 29).The programming tool will
open.
Figure 6. Renesas Flash Programmer
