14. Select the Connect button on the Create New Project window.

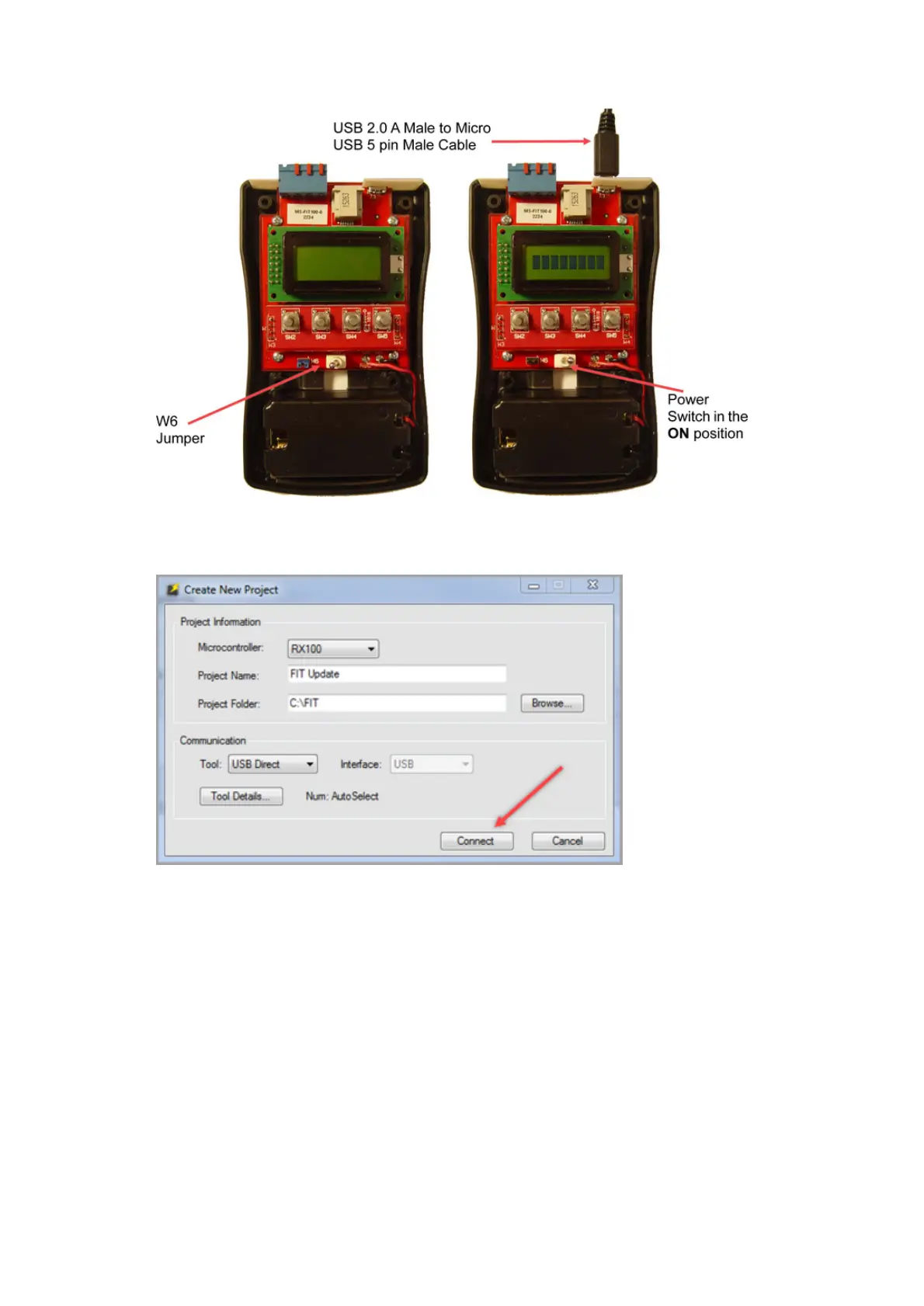

Figure 11. Create New Project Window—Connect
The FIT should now connect with the Flash Programmer software. The USB
driver for the FIT is loaded from your computer. When the USB Driver has
loaded, the Flash Programmer status window should look like Figure 35.
Figure 12. USB Driver Loader Complete
