RDR2S-A and I8O4 Hardware Installation Setup and Adjustments
24-10239-596 Rev. D
25
The RDR2S-A and I8O4 modules follow the same rules as other

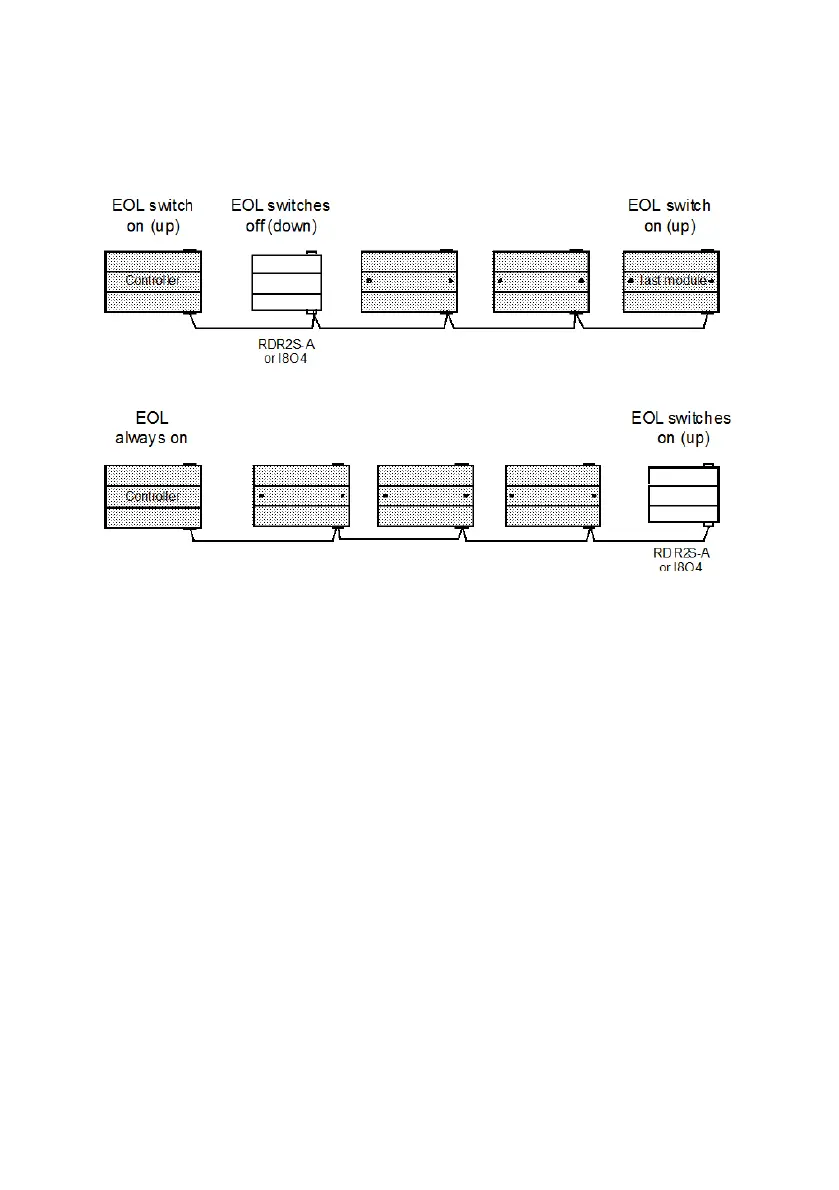

terminated devices. See the following figure to determine the appropriate
EOL setting for each RDR2S-A and I8O4 module in your network.
Baud Rates
The RDR2S-A and I8O4 modules support autobaud operations on the
S300 bus between 9600 and 38400 bps and do not require any switch
settings.
Legacy versus Physical Address Mode
The RDR2S-A and I8O4 modules can be addressed in two ways: legacy
mode and physical address mode.
