Johnson Controls York VERSECON YSWD Series - Page 46

46
055 - 090
60 HP
64 HP
74 HP
80 HP
90 HP
100 HP

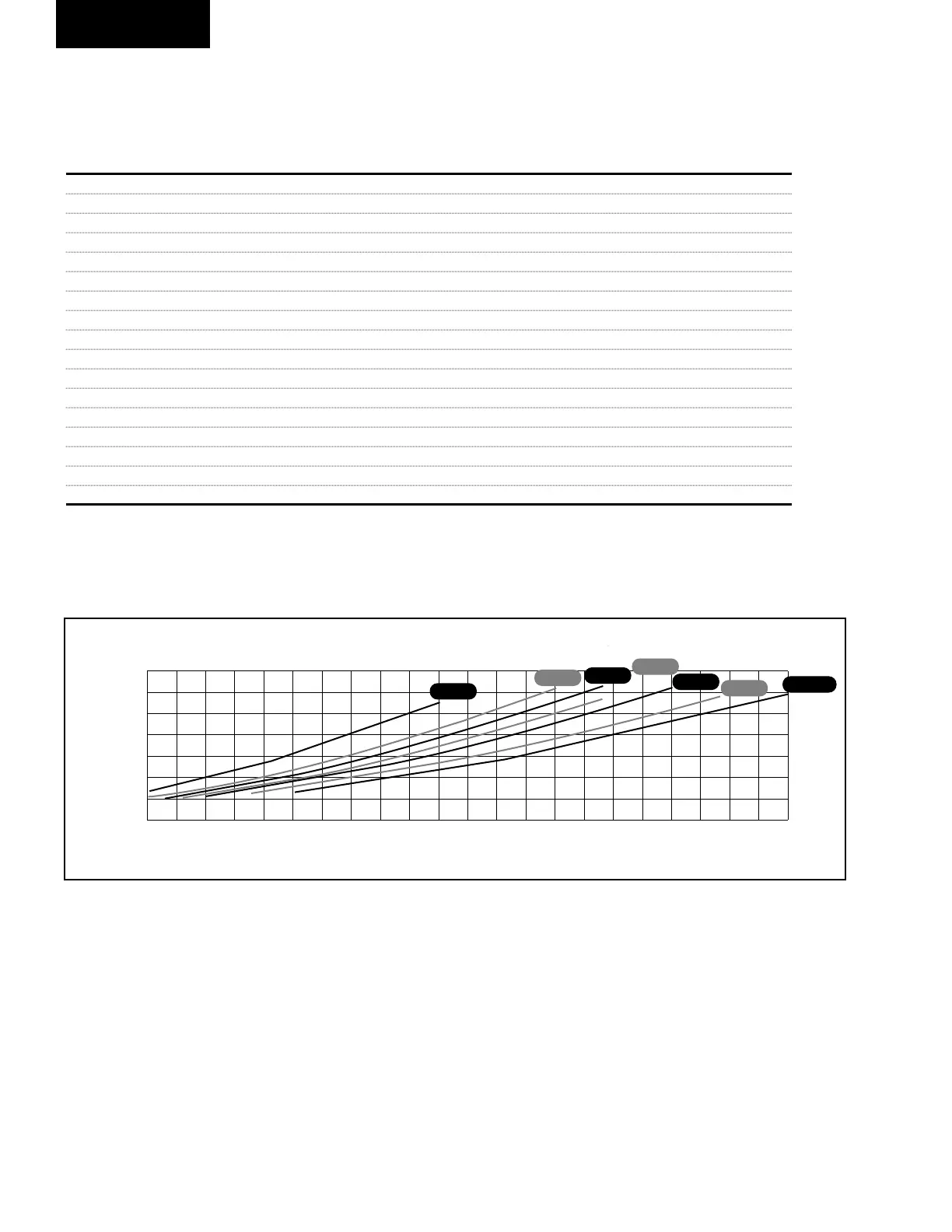

C ondens er Water P res s ure Drop Ð 0055 through 0090
Water F low Ð G P M
P res s ure Drop Ð Feet of WC
100 150 200 250 300
35
30
25
20
15
10
5
0
70 HP
Min Water F low 90 96 105 111 120 135 150
Max Water F low 240 256 280 296 320 360 400
C ompres s ors (4)15 (2)12 & (2)20 (2)15 & (2)20 (2)12 & (2)25 (2)15 & (2)25 (2)20 & (2)25 (4)25
G P M 60 HP 64 HP 70 HP 74 HP 80 HP 90 HP 100 HP
90 5.63 - - - - - -
96 6.40 5.03 - - - - -
105 7.65 6.01 5.40 - - - -
111 8.54 6.71 6.03 5.46 - - -
120 9.98 7.84 7.04 6.37 5.80 - -
135 12.61 9.90 8.89 8.04 7.32 6.27 -
150 15.56 12.20 10.95 9.91 9.02 7.71 6.78
200 27.58 21.61 19.38 17.52 15.94 13.51 11.87
240 - 31.03 27.83 25.14 22.86 19.29 16.92
256 - - 31.63 28.57 25.98 21.88 19.19
280 - - - - 31.02 26.07 22.84
296 - - - - - 29.05 25.45
320 - - - - - - 29.62
Y S W U 0 5 5 Ð Y S W U 0 9 0
LD13136
Condenser Water Pressure Drop 0055 - 0090
Water Flow - GPM
Pressure Drop - Feet of WC
Maintenance
JOHNSON CONTROLS
FORM 145.05-NOM1 (708)
