Johnson Controls York VERSECON YSWD Series - Setpoints

62
JOHNSON CONTROLS
FORM 145.05-NOM1 (708)
SETPOINTS
The following procedure is required to change a
Setpoint:
• From the Run Status screen, use the right arrow
key > to scroll down to Setpoints.
• When Setpoints is surrounded by brackets, press
the ENTER key.
• The Password screen will appear (ask startup
technician for password).
• In the Password screen, use the INC and DEC
keys to enter your administrator password. Use
the right arrow key > to move the cursor. After
entering the password, press the ENTER key >.
• Use the right arrow key > to scroll through the
Setpoints.
• The screen will display brackets [ ] around the
value to be changed.
• To change a digital setpoint, press the ENTER
key to go into the edit mode.
• Use the INC or DEC keys to toggle between the
values.
• Use the ENTER key to accept the new setpoint.
• To change an analog setpoint, select the ENTER
key to go into the edit mode.
• Use the INC or DEC key to increase for decrease
the setpoint value.
• Use the ENTER key to accept the new setpoint.

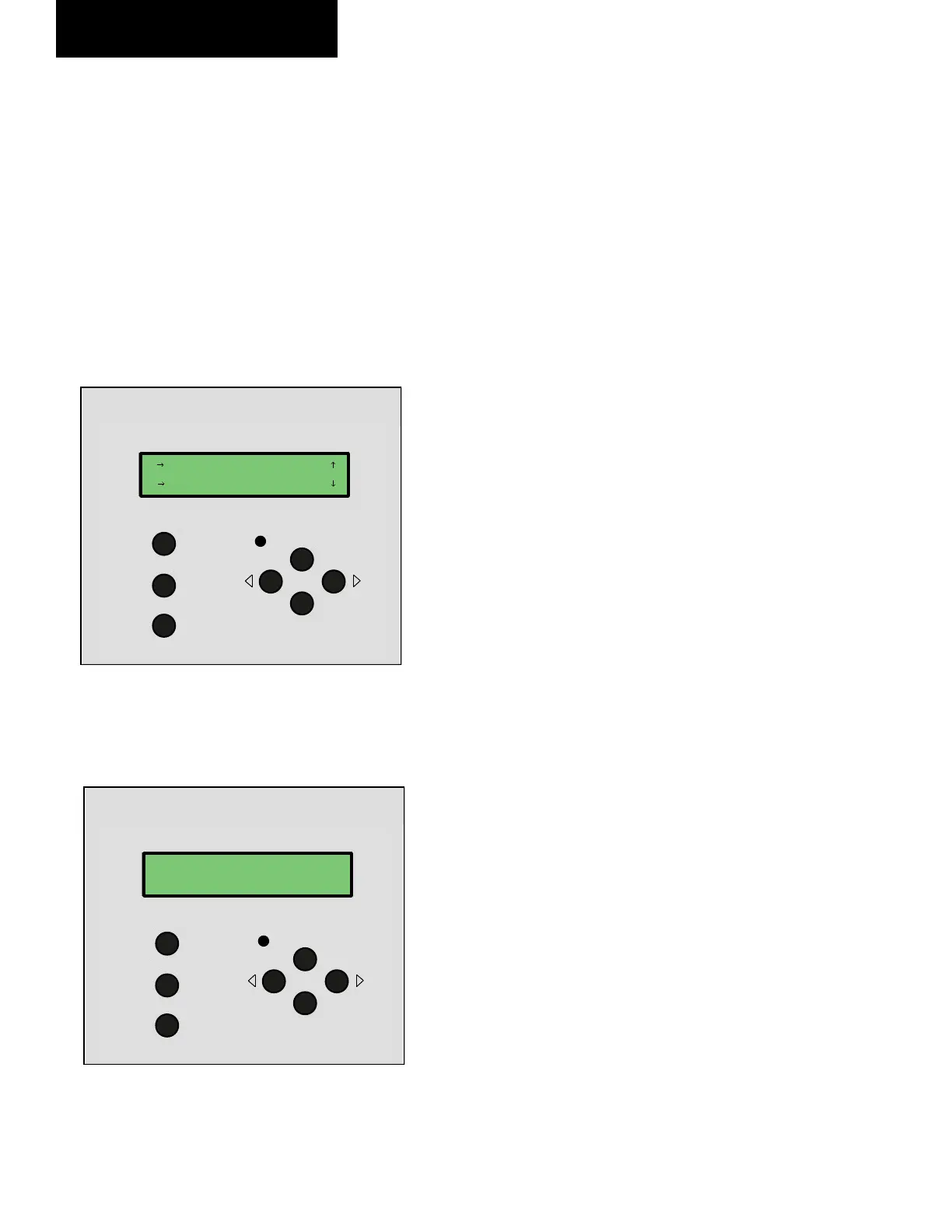

HOME
CANCEL
ENTER
INC
ALARM
DEC
File View
BAC
3
view
R e q u i r e s A d m i n
P a s s w o r d : [ _ ]
HOME
CANCEL
ENTER
INC
ALARM
DEC
File View
BAC
3
view
I / O P o i n t s
[ Setpoin t s ]
User Interface Control Center
