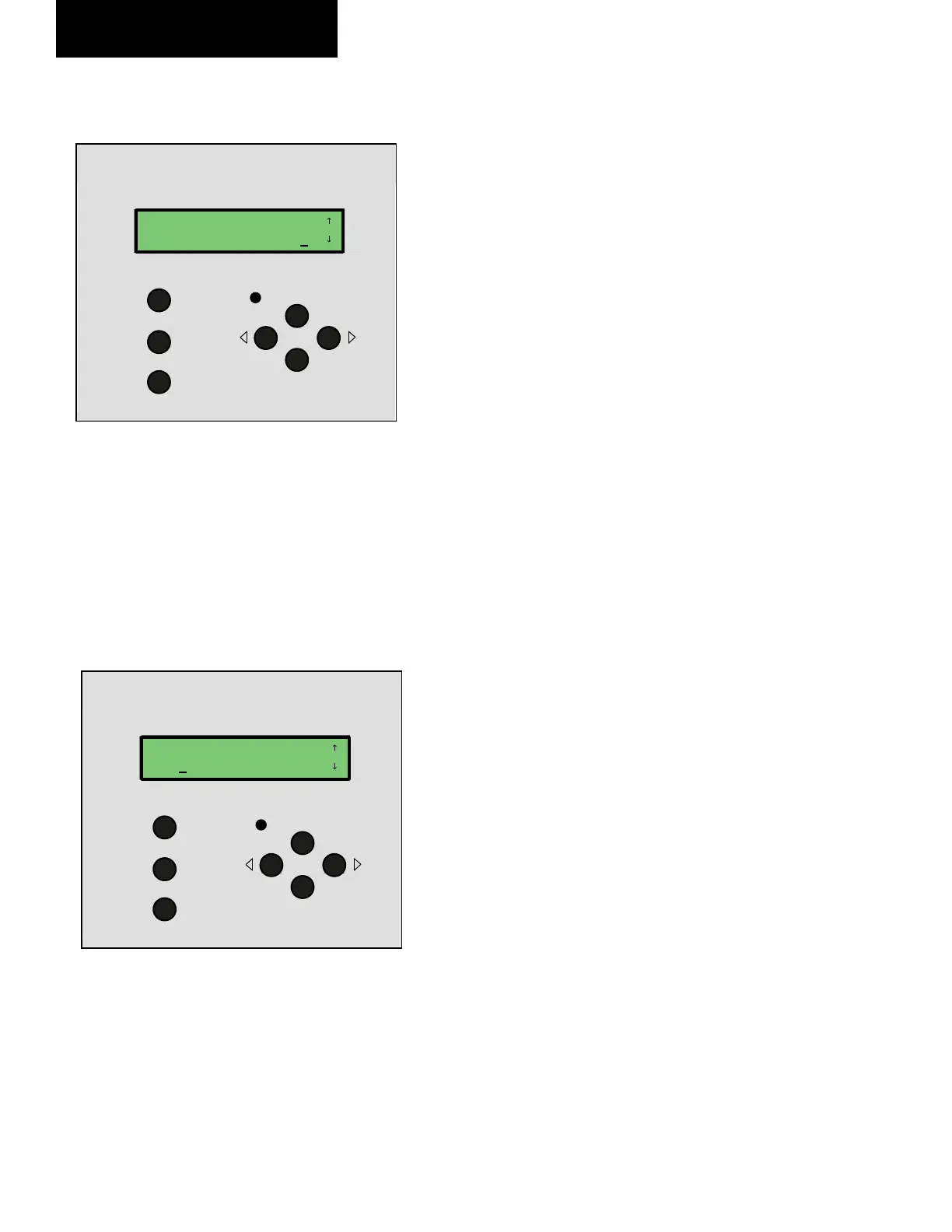

• Use the right arrow key > to scroll down to the
Stop fields
• Press ENTER to go into edit mode. Use the INC
and DEC keys to enter an hour and minute value.
Use the right arrow key > to move the cursor.
The time you enter will be the time the control
will place the unit in the off mode. In the above
example, the unit would switch into the off mode
at 7:00 PM.
• Use the right arrow key > to scroll down to the
seven horizontal fields below the Stop fields.
• There is one field for each day of the week. The
field farthest to the left is Sunday.
• Use the right arrow key > to place brackets [ ]
around the Day slot on which you want the start
stop schedule to be active. Press the ENTER
key and use the INC key to change from the _
to the Day of the week. Press ENTER and the
schedule will now be active for the specified day.
If you don’t want the schedule to be active that
day leave the _ in the space.
• In the example above, Monday and Tuesday have
been assigned to the start and stop schedule. This
means that on Monday and Tuesday, the unit will
go into the run mode at 8:15 AM and shutdown
at 7:00 PM.
• The control has the capability to enter multiple
schedules so a separate start stop schedule could
be programmed for Saturday and Sunday or for
each day of the week.
• Press the HOME key to exit the Schedule
menu.
HOLIDAY SCHEDULE
Defining holiday start-up and shutdown schedules is
very similar to defining Daily Schedules, except in
addition to start and stop fields, there is a Date field. You
do not assign days of the week to a holiday schedule.
OVERRIDE SCHEDULE
Override schedules are used to define start-up and
shutdown on days that are not defined in the Daily
Schedules. For example, if two Sundays a year, you
have a special event where the space is occupied, you
could define an override on schedule for those two
days.
Defining override start-up and shutdown schedules
is very similar to defining Daily Schedules, except in
addition to start and stop fields, there is a Date field.
You do not assign days of the week to an override
schedule.
