150
MIDSECTION

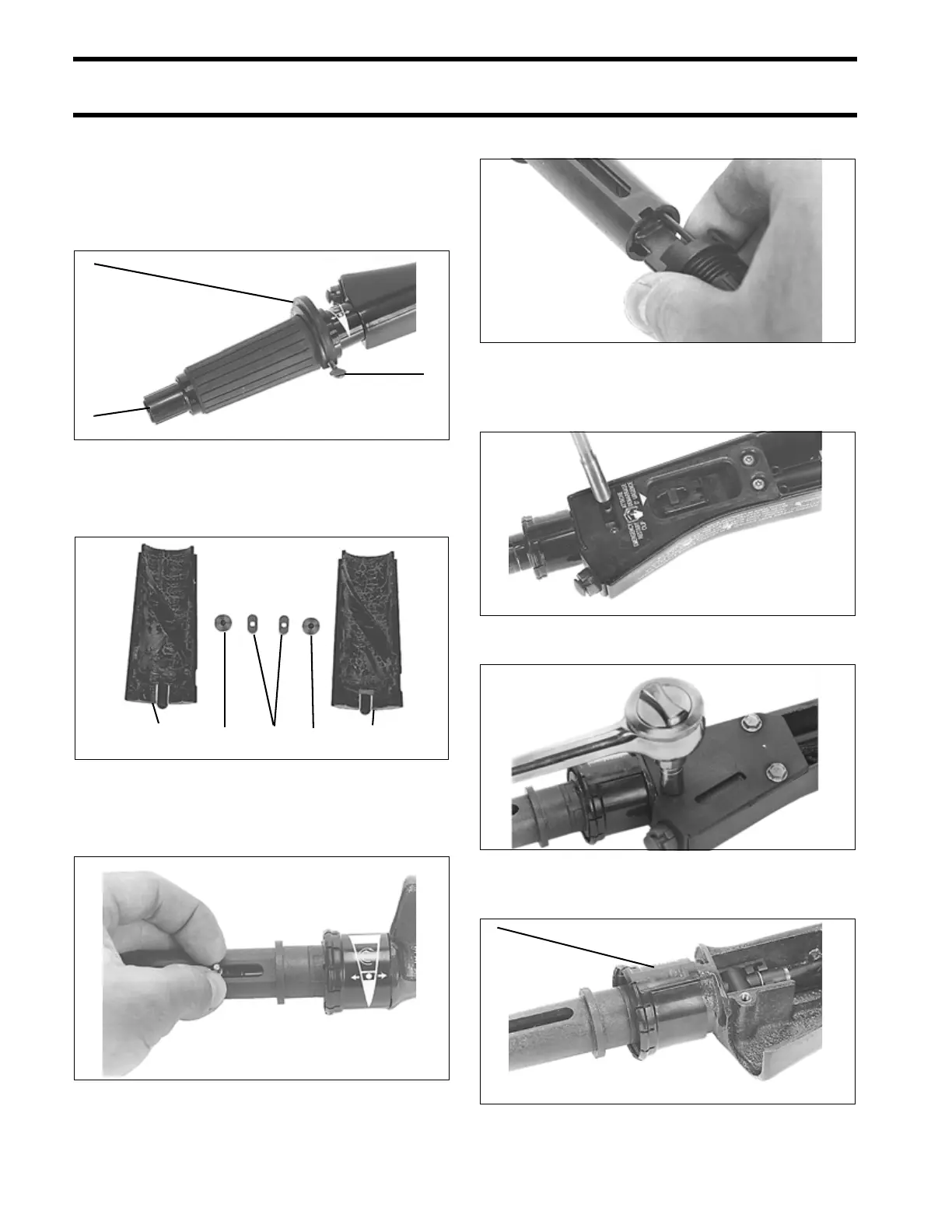

STEERING HANDLE
Disassembly
Using Twist-Grip Remover, P/N 390767, depress
the grip detents. Tighten screw and remove the
grip by pulling grip and turning the idle adjustment
knob clockwise.
Remove the helix halves, rollers, and guides.
Pull the throttle pin out of the cable.
Remove throttle end cap from inner handle.
Remove stop switch cover screws and cover/stop
switch assembly.
Remove the throttle control plate.
1. Twist-Grip Remover
2. Screw
3. Idle adjustment knob
32290
1. Helix halves
2. Rollers
3. Guides
COA2674
24294
2
1
3
1 2 3 2 1
24298
9.9/15 Model 32292
25/30 Model 24288
TYPICAL
1. Throttle control plate
24287
1
