173
GEARCASE
BEARING AND SEAL REMOVAL
9

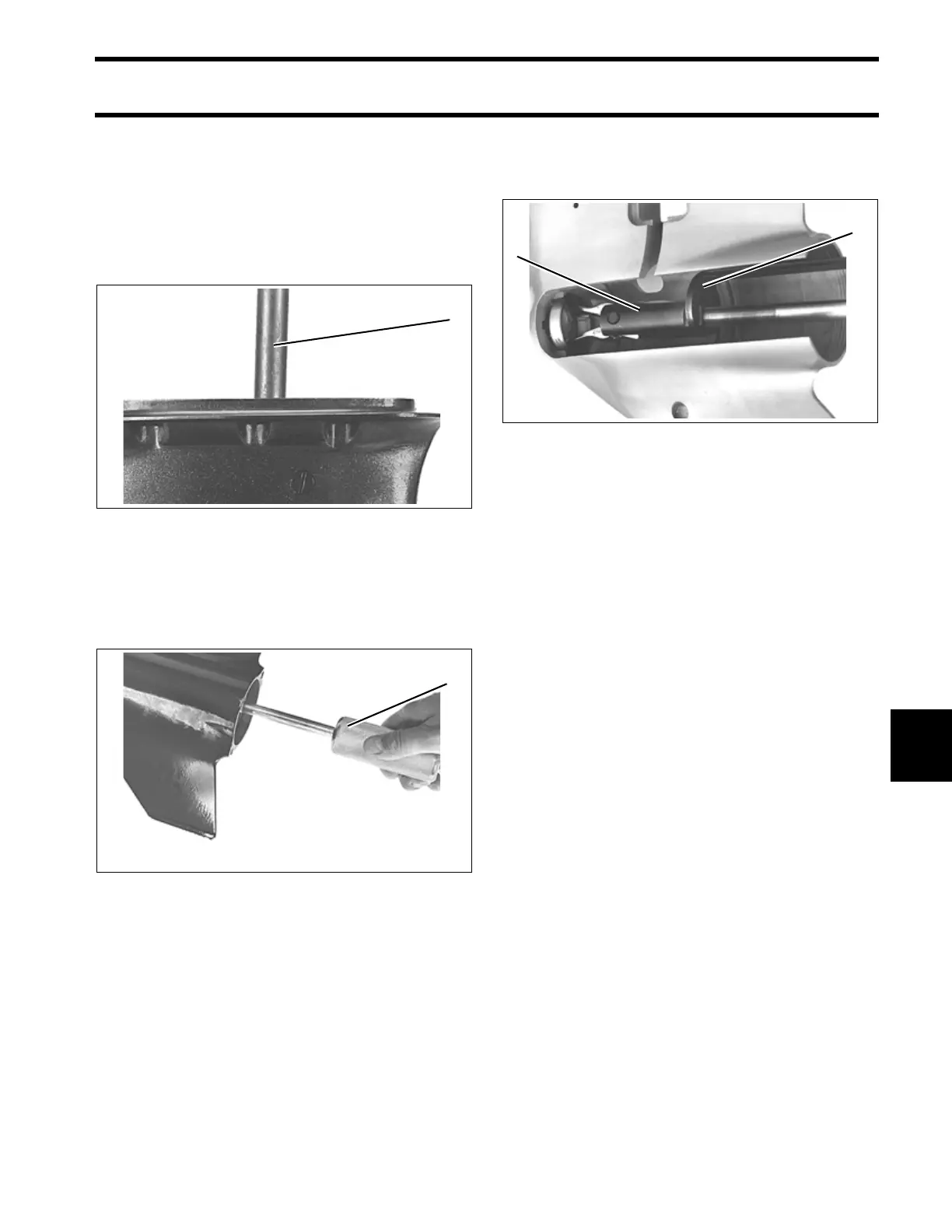

Pinion Bearings
Place bearing removal tool in the driveshaft cavity.
Use a mallet to drive the two pinion bearings into
the propeller shaft cavity of gearcase. Discard the
bearings.
Use Bearing Remover, P/N 319880.
Forward Bearing
Using Slide Hammer, P/N 432128, and Bearing
Puller, P/N 432130, remove the forward bearing
cup from the gearcase.
Secure the puller jaws into grooves behind the
cup. Use Wrench, P/N 334359, to hold the puller
while tightening the jaws.
Shift Rod Bushing and O-ring
Position Shift Rod Bushing Remover,
P/N 327693, under the shift rod bushing.
Thread the adapter of the Slide Hammer,
P/N 391008, in the slide hammer. Place the
adapter through the shift rod bushing and thread
into the remover tool.
Remove the handle from the remover tool. Then
remove the bushing from the gearcase.
Once the bushing has been removed from the
gearcase, examine the bushing for damage. If
damaged, replace the bushing on reassembly.
1. Bearing remover 33239
1. Slide hammer 32548
1
1
1. Bearing puller
2. Wrench
21789
2
1
