2-1
Section２ Names and Functions of the
Components

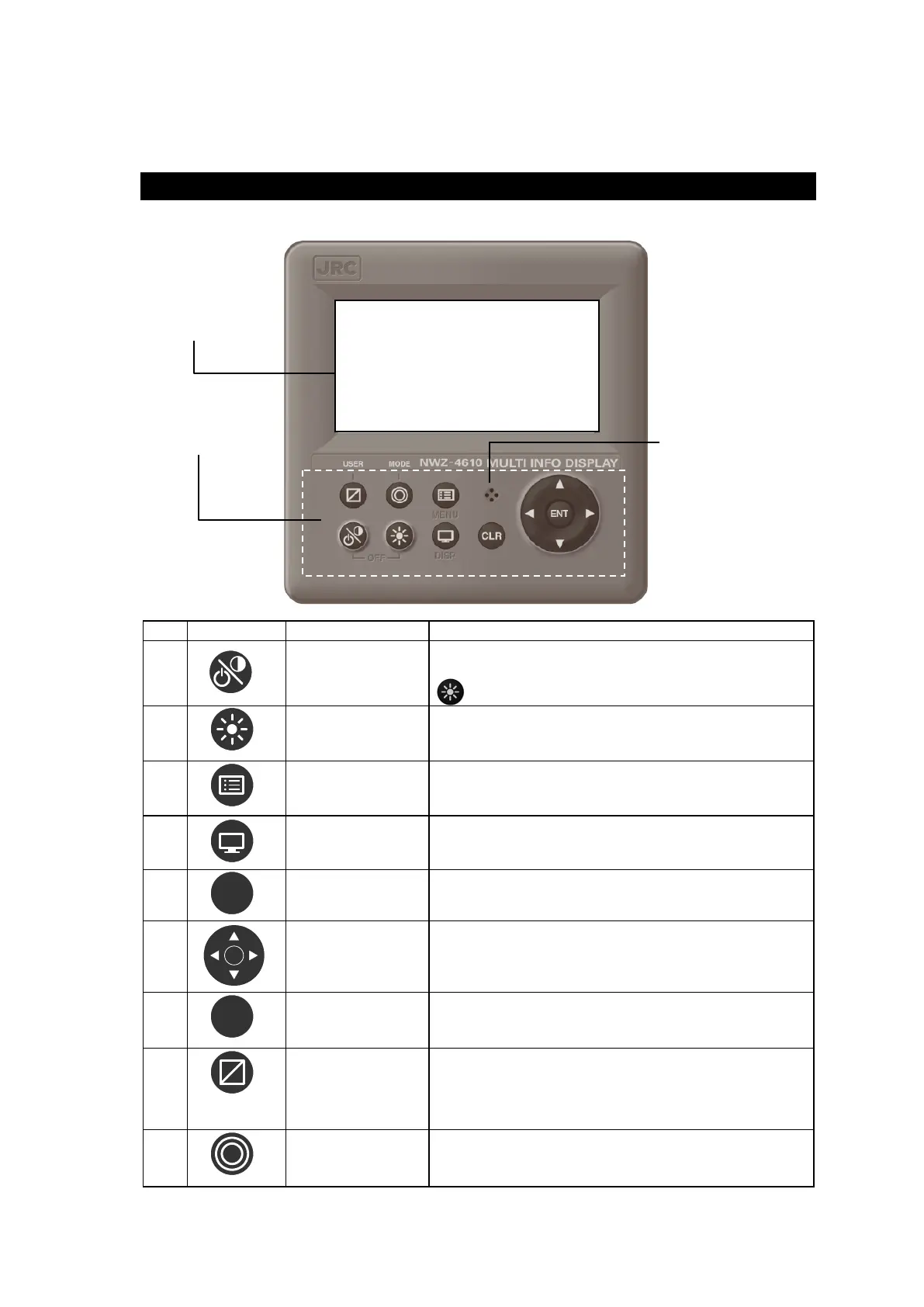

2.1 NWZ-4610 Display Unit
●Main Unit（front）
No. Keys Name Functions
1
Power/
Contrast key
Turns on the power. This key also adjusts the
screen contrast. The power is turned off when the
key and this key are pressed at the same time.
2
Dimmer key
Adjusts the brightness.
3
Menu key
Displays the main menu.
4
Display key
Changes the display screen.
5
Clear key
Cancels operation and stops the alarm.
6
cursor key
Moves the cursor.
7
Enter key
Sets the entries.
8
USER (MID)
Trip Reset (LOG)
MOB/EVENT (GPS)
Changes the screen to the user registration screen (MID).
Press this key for 1 second to reset TRIP (LOG).
Registers the present position (GPS).
Pressing and holding down registers the present position to
the waypoint and operates the MOB function (GPS).
9
MODE key(MID)
Unit Key(LOG)
GOTO (GPS)
Change the user mode (MID).
Change the speed unit (LOG).
Sets the waypoint (GPS).
Display
Operation
panel
Buzzer
CLR
ENT
To Next Page
