6-11
6.3.3 Installation of the Sensor on the Mast
Use a screw adapter (optional component or equivalent) to connect the sensor to the mast. The
diagram shows the JLR-4341, but these instructions apply equally to the JLR-4340 as well.
1. Loosen the fitting belt screw
with a screwdriver to remove
the clamp.
2. Coil the fitting belt around
the mast as shown below.
3. Tighten the clamp screw with
the screwdriver.

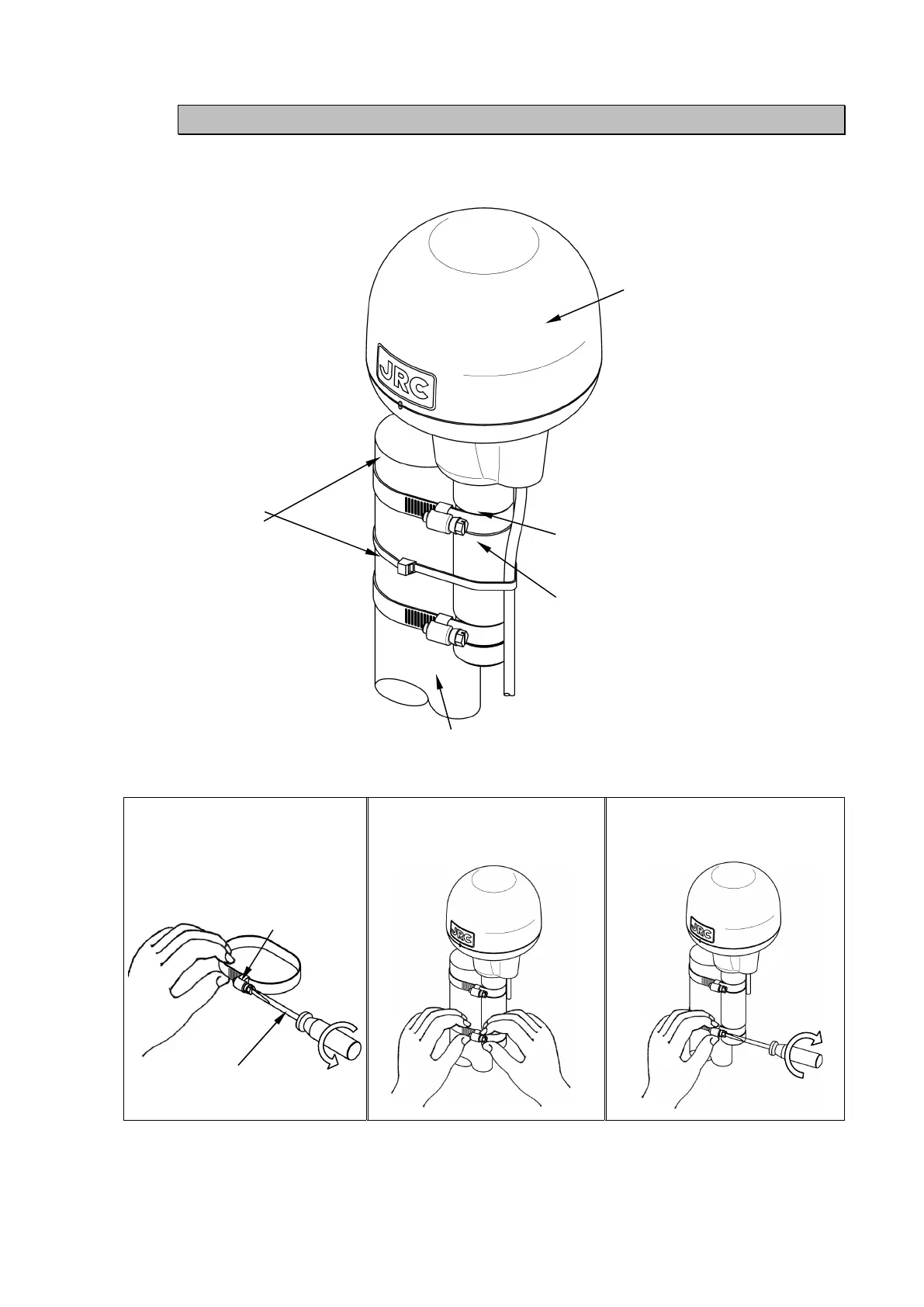

How to install the sensor on the mast
Clamp
Flathead screwdriver
Screw adapter
MTV302007A
JLR-4341
DGPS sensor
Fitting
band
MPBP0252
0
Mast (φ26 mm to φ90 mm supported)
Clamp band
To Next Page
