To adjust the steering trim servo position, move the
electronic steering trim lever either to the left (+) or the right
(-). As soon as the trim is moved, the STT steering trim
screen will appear, and will continue to be displayed unless
the trim lever is untouched for a period of five seconds. To
reset the trim value to 0, press the INCREASE and
DECREASE keys at the same time while the STT screen is
displayed.
Steering Trim (STT)
The XR-2 electronic steering trim lever, located just above
the steering wheel, allows the center position of the servo to
be manipulated in either direction to achieve precise center-
ing of the steering assembly. Steering endpoint adjustment
values (page 14) remain completely independent from the
steering trim, unless the trim value exceeds the selected
endpoint values. (For example: If trim value are set at 40 and
endpoint values at 30, steering trim will override/alter the
endpoint value.)
INCREASE
CLEAR
+–
DECREASE
stt
0
Indcates steering
trim screen
Current value
Press the INCREASE and DECREASE keys at
the same time to reset the steering trim to zero

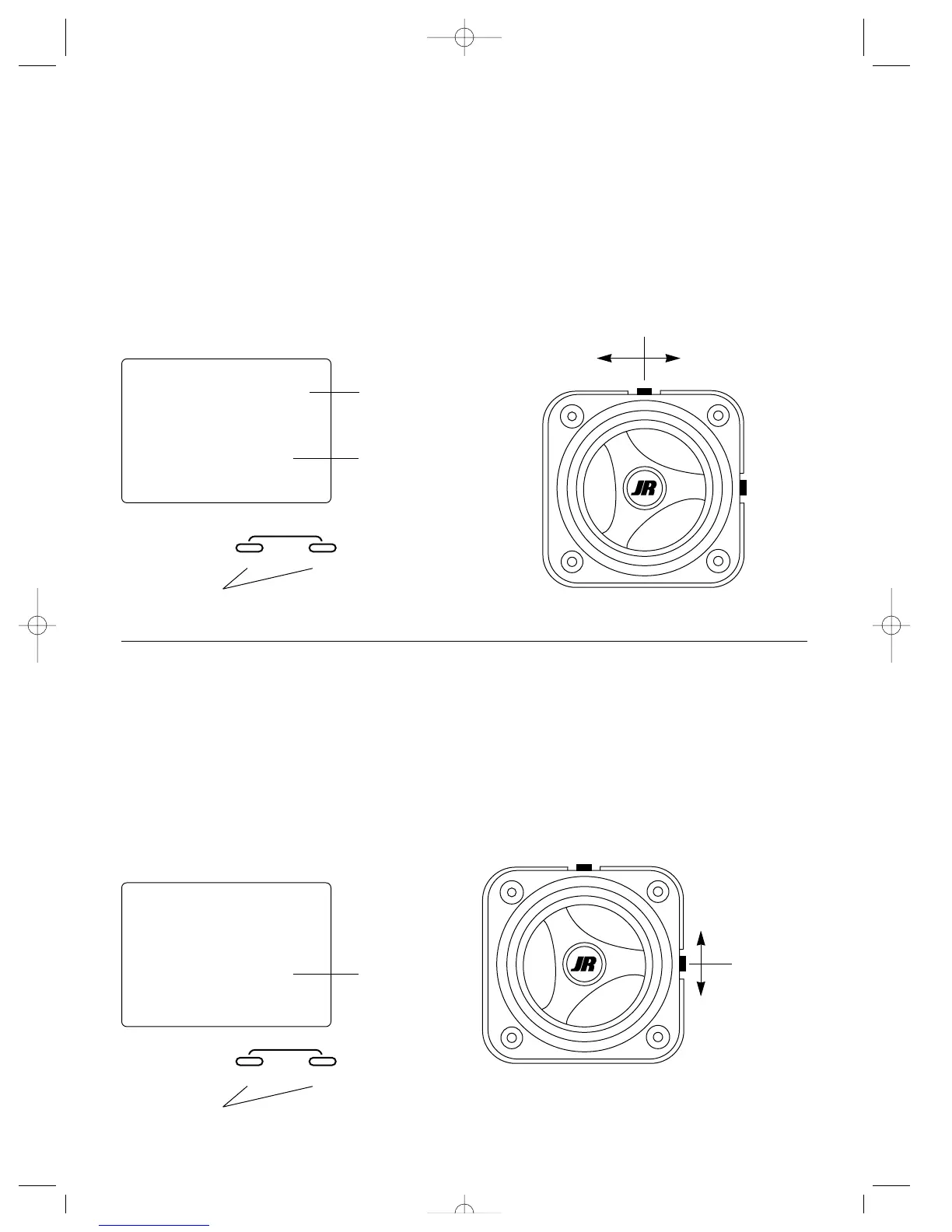

Steering Trim Location
Steering trim
Right trim (–)Left trim (+)
Press the INCREASE and DECREASE keys at the
same time to reset the throttle trim value to zero
Throttle Trim (THT)
The XR-2 electronic throttle trim lever, located to the right of
the steering wheel, allows the center position of the servo to
be manipulated in either direction to achieve precise center-
ing of the throttle trigger neutral position. Throttle endpoint
adjustment values (page 14) remain completely independent
from the throttle trim, unless the trim value exceeds the
selected endpoint values. (For example: If the trim value is
set at 40 and the endpoint values at 30, throttle trim will
override/alter the endpoint value.)
To adjust the throttle trim servo position, move the electronic
steering trim lever either up (+) or down (-). As soon as the
trim is moved, the THT throttle trim screen will appear, and
will continue to be displayed unless the trim lever is
untouched for a period of five seconds. To reset the trim
value to zero, press the INCREASE and DECREASE keys at
the same time while the THT screen is displayed.
INCREASE
CLEAR
+–
DECREASE
Current value
Throttle Trim Location
Throttle trim
Decrease
Increase
tht
0
