XR-2 Quick Start Setup
In this manual you’ll find in-depth instructions detailing all
the steps and procedures you’ll need to follow in order to
program each of the XR-2’s features correctly. For those rac-
ers who want to get to the track fast, we have provided the
Quick Start section below. Quick Start covers the basic pro-
gramming information necessary to get you to the track fast.
Later, when you want to learn more about the specific
features of the XR-2, refer to the appropriate page(s) in this
manual for more detailed programming information.
Servo Reversing
1. With the transmitter power switch on, press the MODE
key to enter the Function Mode.
2. Press the MODE key four times until ST appears on the
screen. The ST indicates the steering servo reversing
screen.
3. Press the increase or decrease key to move the cursor to
the desired servo direction (Rev.Norm).
4. Press the CHANNEL key once to access the throttle servo
reversing screen.
5. To select the direction of the throttle servo, repeat Step 3
above.
Travel Adjustment
1. From the Servo Reverse function, press the MODE key
twice to access the Travel Adjustment function (the STR
or STL screen will appear).
Steering Adjustment:
2. Rotate the steering wheel in the desired direction (left or
right) to be adjusted.
3. Press the INCREASE or DECREASE keys to select the
desired travel value.
Throttle Adjustment:
4. Press the CHANNEL key once. FWD will appear on the
screen.
5. Press the INCREASE or DECREASE keys to select the
desired travel value.
6. Press the MODE and CHANNEL keys at the same time to
exit the Function Mode.
Servo Trim Adjustment
Steering Servo Trim Adjustment:
1. With the transmitter power switch on, move the digital
steering trim lever in the desired position to be adjusted.
The steering trim value screen will appear automatically.
Throttle Servo Trim Adjustment:
2. With the transmitter power switch on, move the digital
throttle trim lever in the desired position to be adjusted.
The throttle trim value screen will appear automatically.

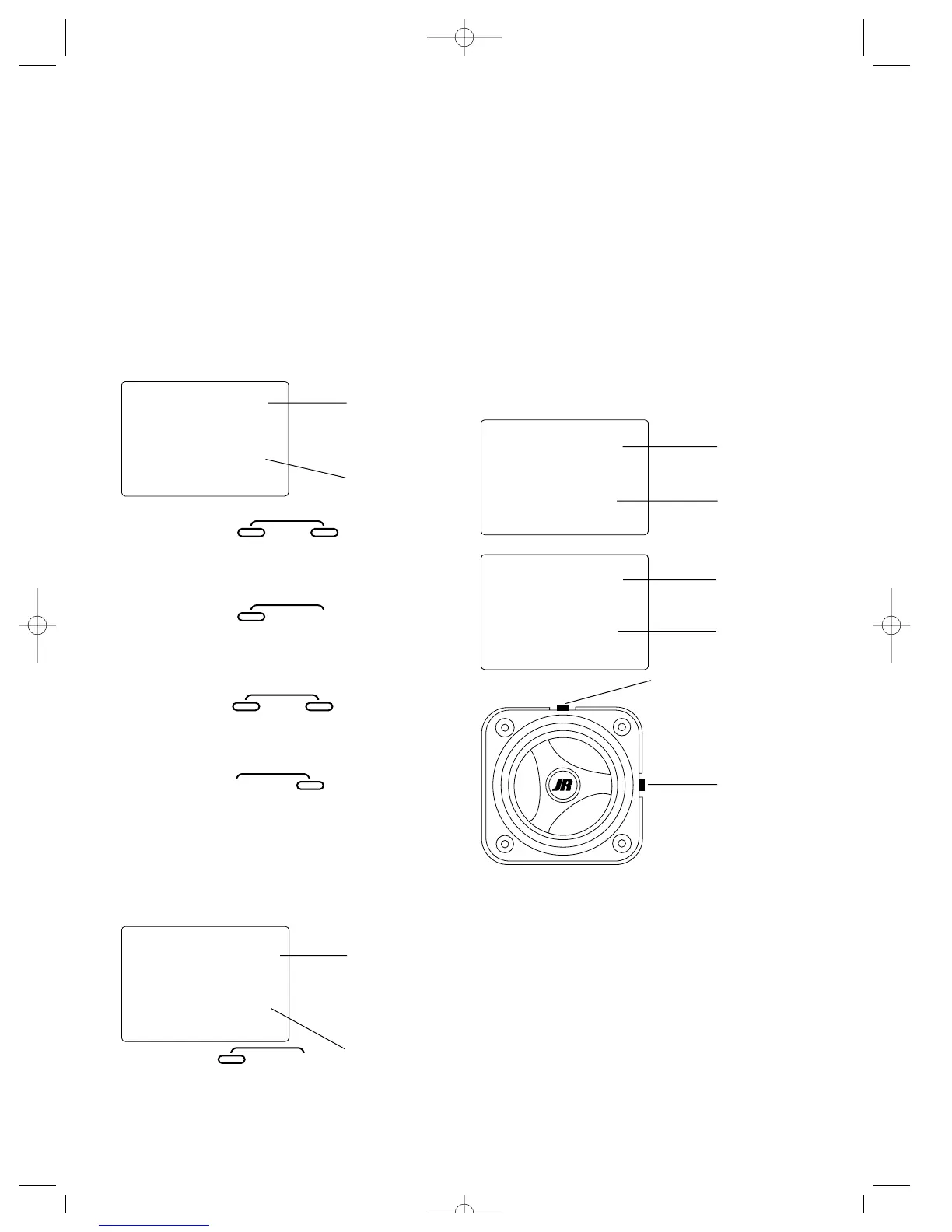

st
—
REV•NORM
MODE
ENTER
CHANNEL
MODE
Indicates current
channel
ST = Steering
TH = Throttle
Indicates current
servo direction
INCREASE
CLEAR
+–
DECREASE
CHANNEL
str
100
TRVADJ.
MODE
Indicates current
adjustment position
STR = Steering right
STL = Steering left
FWD = Forward trigger
BRM = Reverse
(brake) trigger
Indicates current
value
st
0
tht
0
Indicates steering
trim function
Indicates throttle
trim function
Indicates current
value
Indicates current
value
Throttle trim
Steering trim
