If the clearance between the blade point of hook and the needle is smaller than the specied
value, the blade point of hook will be damaged. If the clearance is larger, stitch skipping will
result.
To adjust the height of the feed dog :
Loosen screw
of crank
.
Move the feed bar up or down to make adjust-
ment.
Securely tighten screw
.
If the clamping pressure is insucient,
the motion of the forked portion becomes
heavy.
(1) Adjust the timing between the needle and the
hook as follows :
1) Turn the handwheel to bright the needle bar down
to the lowest point of its stroke, and loosen set-
screw
.
(Adjusting the needle bar height)
2) Align marker line
on needle bar
with the
bottom end of needle bar lower bushing
, then
tighten setscrew
.
(Adjusting position of the hook
)
3) Loosen the three hook setscrews, turn the hand-
wheel and align marker line
on ascending nee-
dle bar
with the bottom end of needle bar lower
bushing
.
4) After making the adjustments mentioned in the
above steps, align hook blade point
with the
center of needle
. Provide a clearance of 0.04
mm to 0.1 mm (reference value) between the nee-
dle and the hook, then securely tighten setscrews
in the hook.

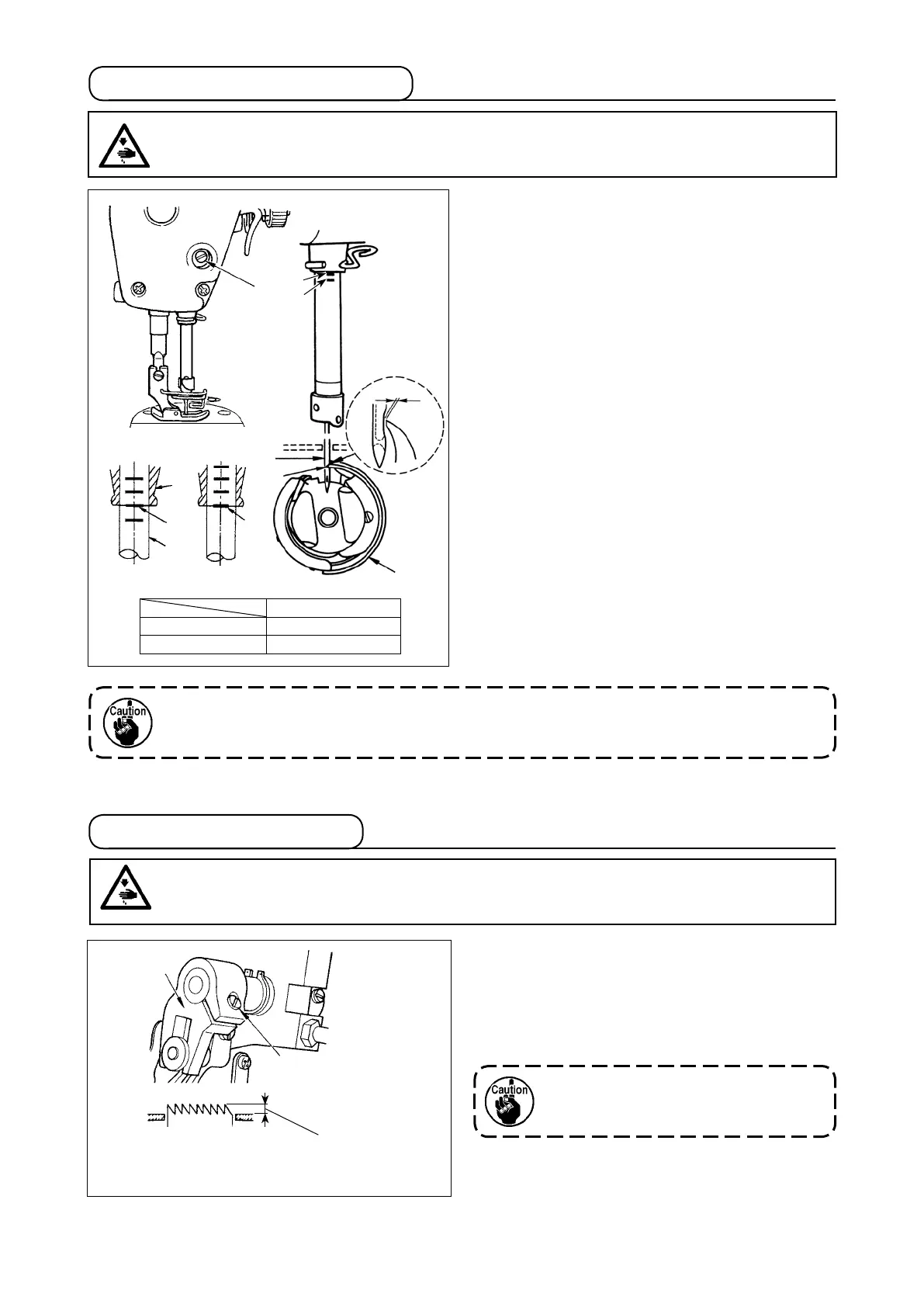

20. Needle-to-hook relationship
21. Height of the feed dog
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Dimension D (mm)
DDL-7000AS-7 0.04 to 0.10
DDL-7000AH-7
0.12 to 0.20
0.75 to 0.85 mm (DDL7000AS-7)
1.15 to 1.25 mm (DDL7000AH-7)
– 13 –
To Next Page
