When sharpening again the knife
blade, extra special care must be taken on the handling of
the knife.
24. Counter knife
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Adjust the force required to operate the foot pedal
Spring
: Downward force adjustment
Bolt
: Heeling back force adjustment
Hole
: Pedal stroke adjustment
For General Application
25. Pedal pressure and pedal stroke
WARNING :
Be sure to turn the power OFF before the following work in order to prevent personal injury due to
unintentional starting of the sewing machine.
Oil Stone
Fig A

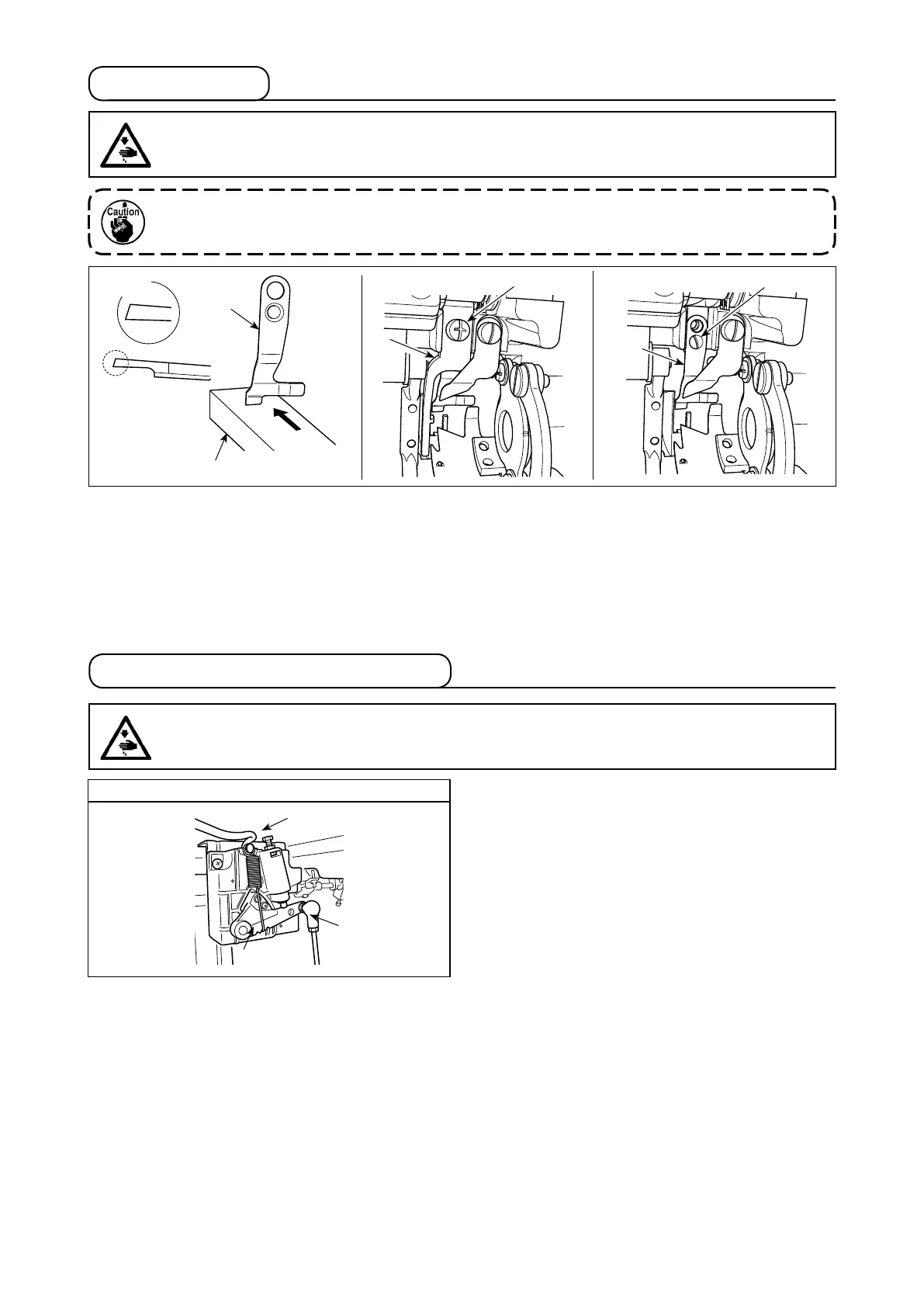

* In the case the thread cannot be trimmed sharply, re-sharpen counter knife
as illustrated in Fig.
A
be-
fore the knife has become dull and re-place it correctly.
1) Loosen setscrew
of bobbin case opening lever
, and remove the bobbin case opening lever.
2) Loosen setscrew
, and remove counter knife
.
3) To install the counter knife
, follow the above procedure in reverse order.
– 15 –
