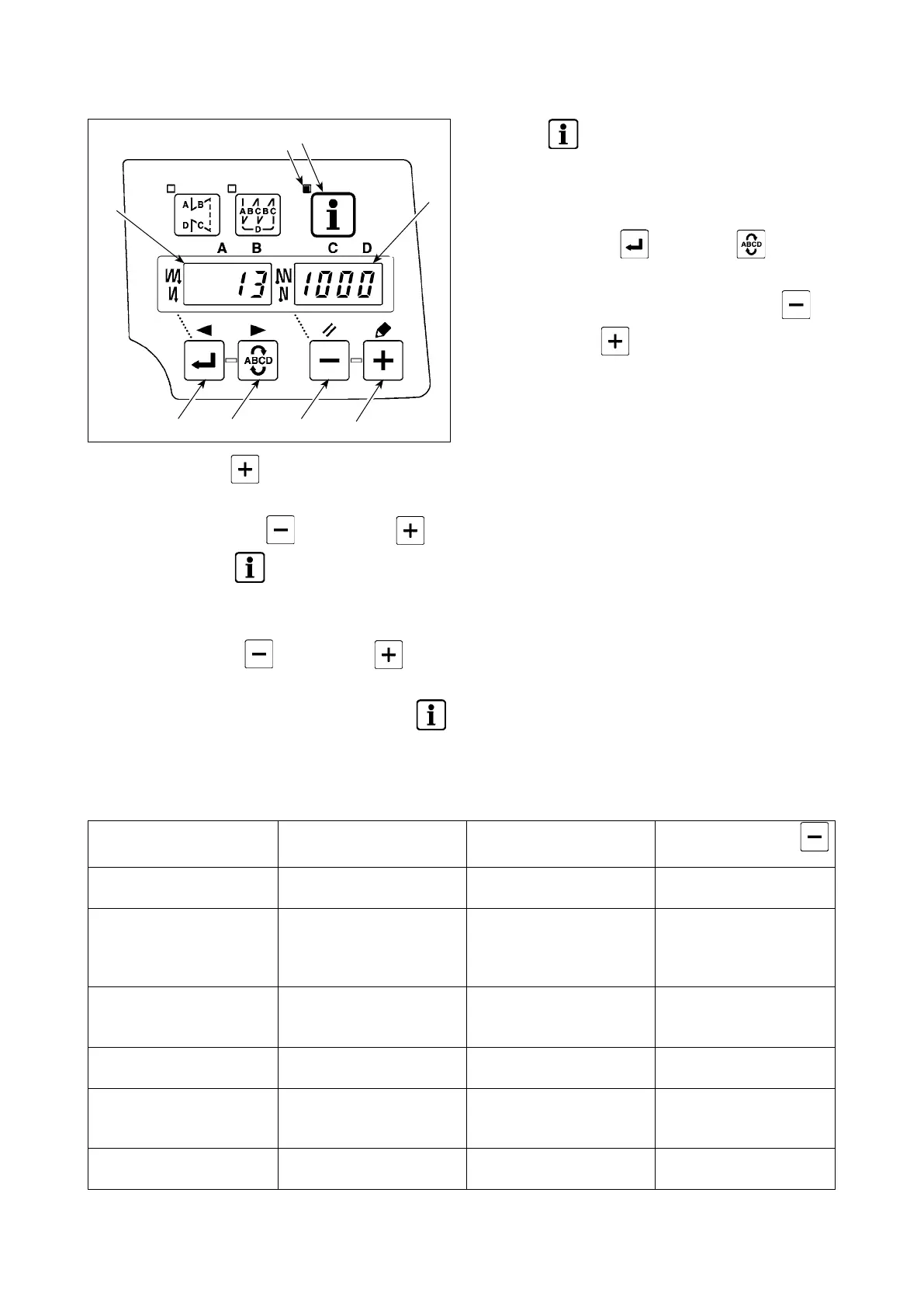

Sewing can be performed with the production support data displayed on the control panel.
[Basic operation of the production support modes]
1)
When
switch
7
is pressed in the normal
sewing state, LED
E
lights up to enter the pro-
duction support mode.
2)
Production support function can be changed
over by pressing
switch
3
or switch
4
.
3) Data attached marked with (*1) in Table 1 "In-
dicator
A
" can be changed by means of
switch
5
and
switch
6
.
4) When you keep
switch
6
held pressed for two seconds, indicator
B
and LED
E
ash on and
off. While they are ashing on and off, data marked with (*2) in Table 1 "Display under modes" can be
changed by pressing
switch
5
and switch
6
.
When you press
switch
7
, the value marked with (*2) is conrmed and indicator
B
and LED
E
stop
ashing on and off.
5)
The value with a sharp mark (*3) in Table 1 "Display of modes" can be changed only immediately after
resetting by using
switch
5
and switch
6
.
6) Refer to the table "Mode resetting operation," for the resetting procedure of data.
7) To return to the normal sewing state, press
switch
7
.
Data to be displayed under the respective modes are as described in the table below.
Table 1: Display of modes
Mode name Indicator
A
Indicator
B
Indicator
B
(when
switch
5
is pressed)
Target No. of pcs. display
mode (F100)
Actual number of pieces (Unit
: piece)
(*1)
Target number of pieces
(Unit
: piece)
(*2)
-
Target/actual No. of pcs. dif-
ference display mode [F200]
Difference between target
number of pieces and actual
number of pieces (d : piece)
(*1)
Target pitch time
(Unit : 100 msec) (*2)
-
Sewing machine availability
rate display mode (F300)
oP-r Sewing machine availability
rate in the previous sewing
(Unit : %)
Display of average avail-
ability rate of sewing
machine (Unit : %)
Pitch time display mode
(F400)
Pi-T Pitch time in the previous
sewing (Unit : 1sec)
Display of average pitch
time (Unit : 100 msec)
Average number of revolu-
tions display mode (F500)
ASPd Average number of revolu-
tions in the previous sewing
(Unit : sti/min)
Display of average number
of revolutions
(Unit : sti/min)
Bo b b i n c o u n t e r d i s p lay
mode
bbn Bobbin counter value (*3) -
6
543
7
