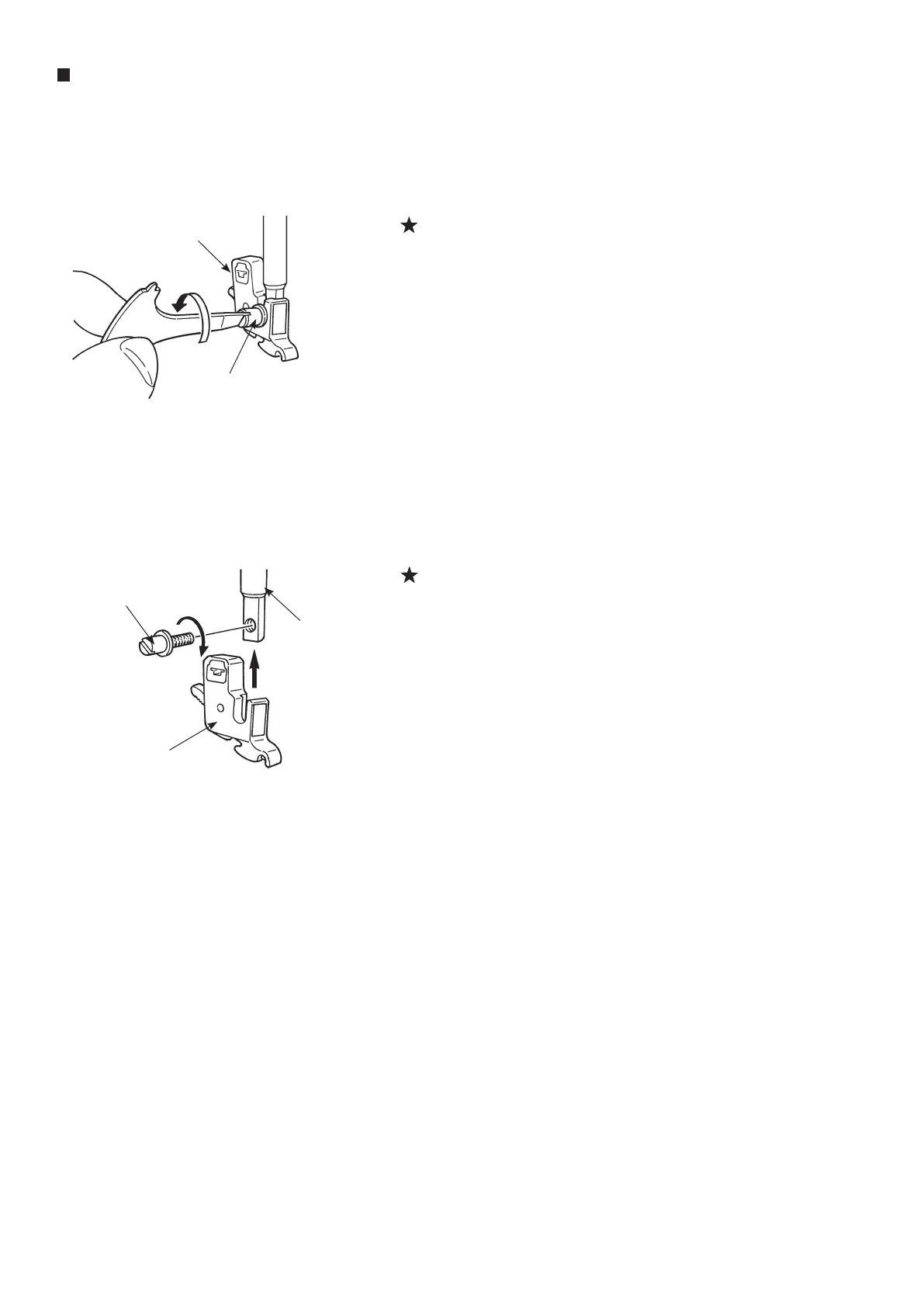

Removing and installing presser foot holder
Removing presser foot holder
1. Lift the needle and presser foot lifting lever.
2. Loosen the setscrew of the presser foot holder to the left and remove
the presser foot holder.
Setscrew of presser foot holder
Presser foot holder
Installing presser foot holder
Align the screw hole at the presser bar with the hole of presser foot
holder (long groove). Tighten the setscrew rmly by turning it to
the right side.
Setscrew of presser foot holder
Presser foot holder
Presser bar
