7
1) Fit hinge rubber cushion
over the hinge shaft.
2) Install the main body of the sewing machine on
the table with four bolts
, four plain washers
,
four spring washers
, four hexagonal nuts
and four hexagonal nuts
.
1. Tighten nut
until spring washer
is
brought to the state as illustrated in Fig.
B and fix the spring washer on hinge
rubber
with nut
.
2. Mount hinge rubber
while orienting
its corner section C toward the machine
head side. Be aware that the hinge rub-
ber fails to function properly if nuts
and
are excessively tightened.
3. When carrying the sewing machine,
hold sections
with hands to support
the side faces of the sewing machine.

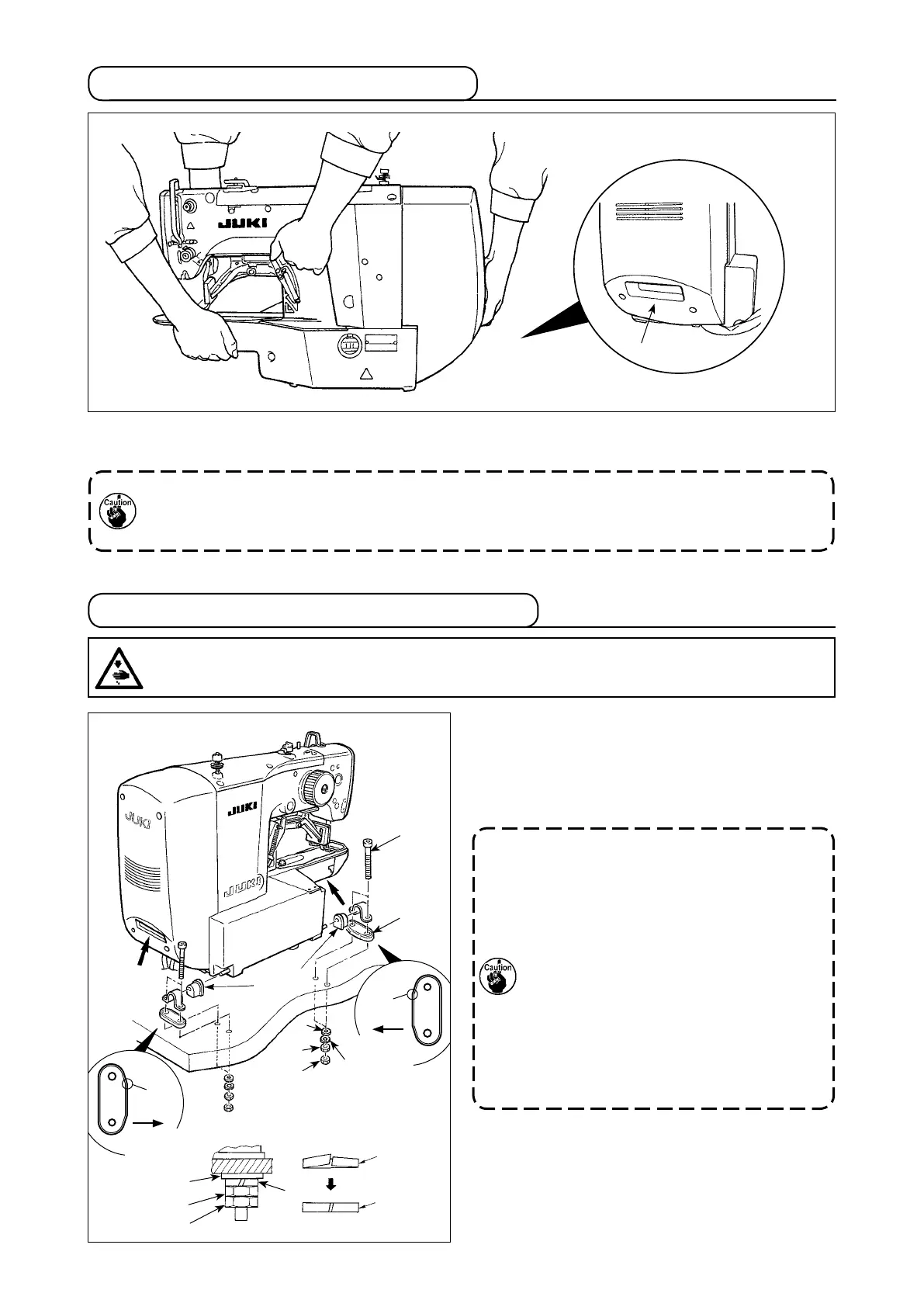

3-7. Installation of the sewing machine head
WARNING :
To prevent possible accidents caused by the full of the sewing machine, perform the work by two
persons or more when the machine is moved.
A
3-6. How to carry the sewing machine
To carry the sewing machine, it is necessary to hold
A
section and support the side faces of the sewing ma-
chine by hand as illustrated in the gure.
1.
Carefully prevent slippage of your hand that holds the cover.
2. The sewing machine weighs over 42 kg. Be sure to carry the sewing machine with two or
more people without exceptions.
A
B
C
Machine
head side
C
Machine
head side
To Next Page
