Closed stainless steel bath tanks
9.3 Temperature control for external connected systems
Danger from the incorrect use of external connected
systems.
Unsuitable materials may cause the failure of the
system.
Check the externally connected systems for the
following:
• Compression strength.
• Corrosion resistance.
• Check the materials used for parts in contact with the
medium.
The circulator is designed for the temperature control of external
connected systems (temperature control system).

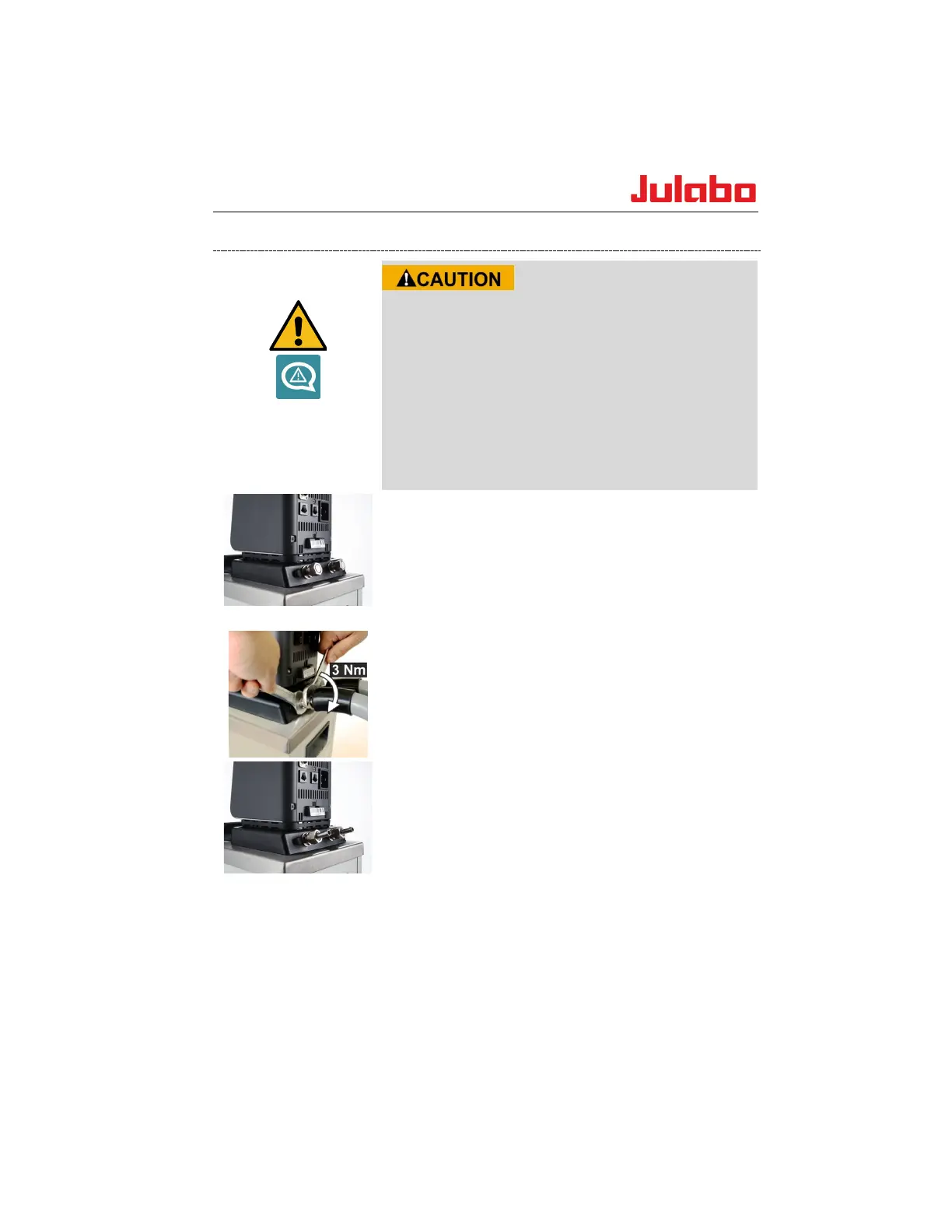

Connect an external system
Remove the union nuts and sealing plates from the pump
connectors.
The tube connectors can be used for tubing with M16x1 (internal)
connections in this state.
Tighten the connections with a maximum torque of 3 Nm, holding
the nuts (a.f. 17 mm) as you do so.
Second method
Secure barbed fittings to the union nuts. Tighten the connections
with a maximum torque of 3 Nm, holding the nuts (a.f. 17 mm) as
you do so.
Connect tubing and secure them with tube clamps to prevent them
sliding off.
Connect the tubing for the supply and return to the pump
connectors and the external consumer and secure them with tube
clamps.
Switch the pump function to external circulation.
