MC
17

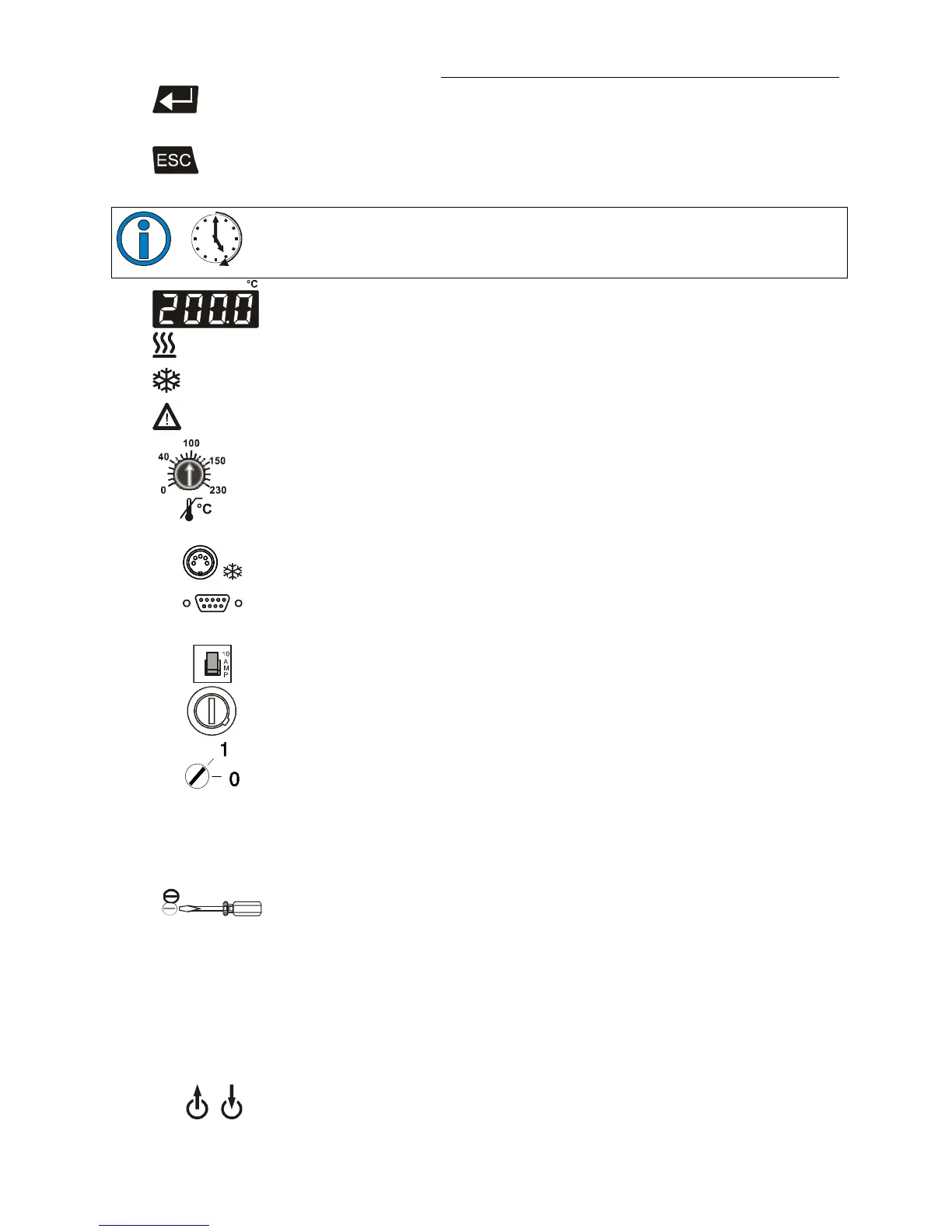

8 Enter key 1) Store value / parameter
2) Next lower menu level
9 Escape key 1) Cancel entries
2) Return to a higher menu level
Note:
After about 30 seconds, the display automatically returns to the
standard display.
10 MULTI-DISPLAY (LED) temperature indication, menu indication
11 Control indicator –Heating
12 Control indicator – Cooling (without function)
13 Control indicator – Alarm
14
Adjustable excess temperature protection according to
IEC 61010-2-010
15
15a
15b
Socket: control cable of JULABO refrigerated circulator
or output for alarm messages
16
RS232
Interface RS232 : remote control via personal computer
18a Mains fuses: Safety cutout 15 A
18b Mains fuses for cooling machine, T10A
19
Selector dial for cooling machine (only F25, F26, F34)
Position "1" for operation with MC circulator.
20 Built-in mains outlet for connection of circulator
21a
21b
Mains power cable with plug for circulator
Mains power cable with plug cooling machine
22 Drain tap
23 Drain port (not on F12)
24a
24b
Pump connector: feed
Pump connector: return
25 Venting grid, removable
26
