Julabo ME - Page 15

ME
15

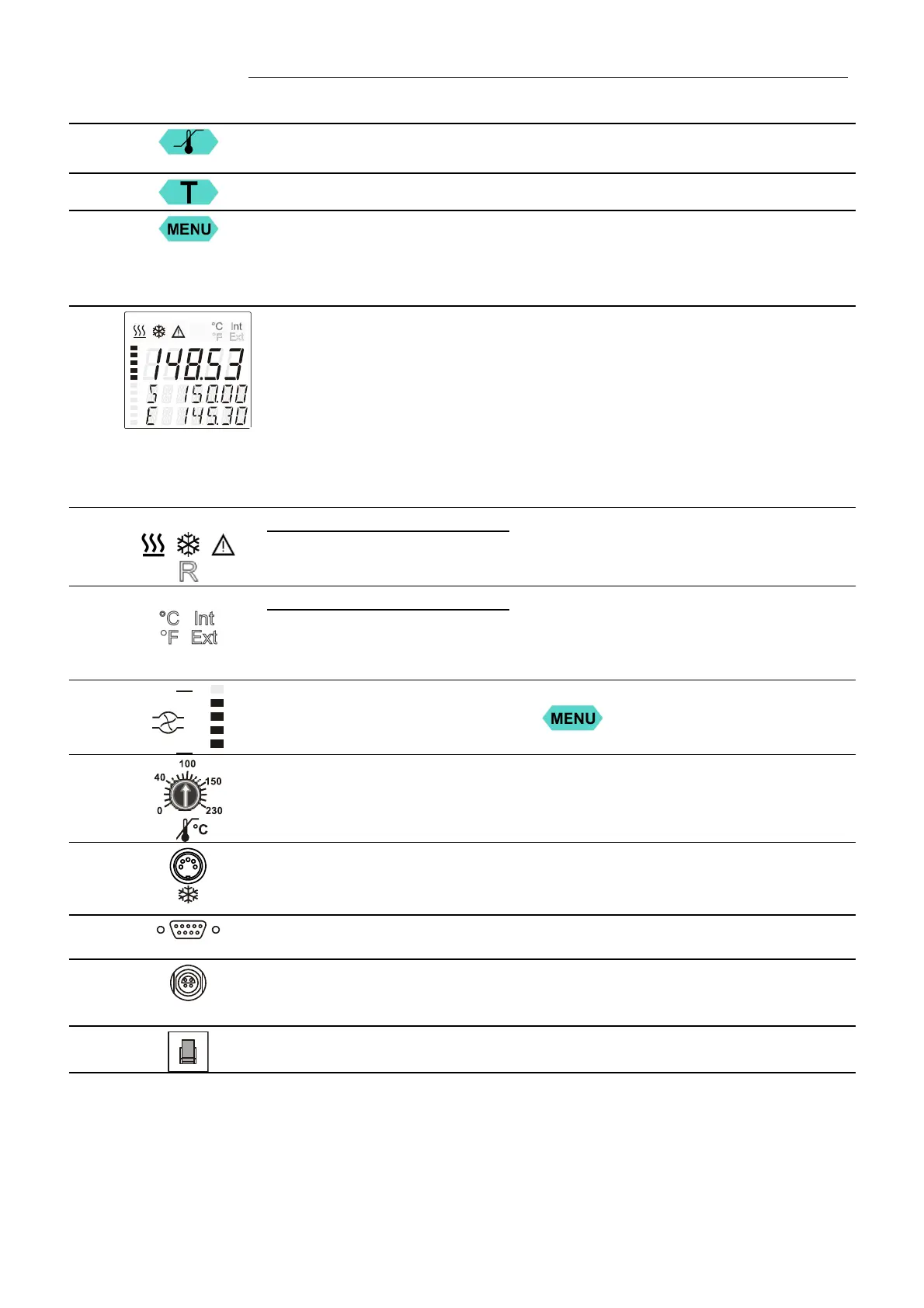

Menu keys
5
Key: start the menu > warning and safety values<
6
Key: start the menu >temperature setpoints<
7
Key: display of MENU structure
10
VFD COMFORT-DISPLAY
Header: Control indicators see sections 11 and 12
Line 1: Actual value internal or external
The display is depending on the selected control mode in the
menu > Control < (internal or external).
Line 2: Working temp. setpoint, constantly S xxx.xx
Line 3: Actual value (E = external or I = internal)
Alternating with the display in line 1
11
Control indicators in the header:
Heating / Cooling / Alarm /
Remote control
12
Control indicators in the header:
Temperature indication Internal or External actual value
Temperature indication in °C (°F not possible on this unit)
13
Display of set pump pressure stage
Four stages, can be set via the key
, under >MENU - PUMP<.
14
Adjustable excess temperature protection according to IEC 61010-2-010
15
Socket: control cable of JULABO refrigerated circulator
or output for alarm messages
16
RS232
Interface RS232: remote control via personal computer
17
Pt100
Socket for external measurement and control sensor
or external setpoint programming
18
15
A
M
P
Mains circuit breakers (resettable) 15 A
20 Mains power cable with plug
