Julabo ME - 4. Operating controls and functional elements; 4.1. Circulator

Operating controls and functional elements
14
4. Operating controls and functional elements
4.1. Circulator

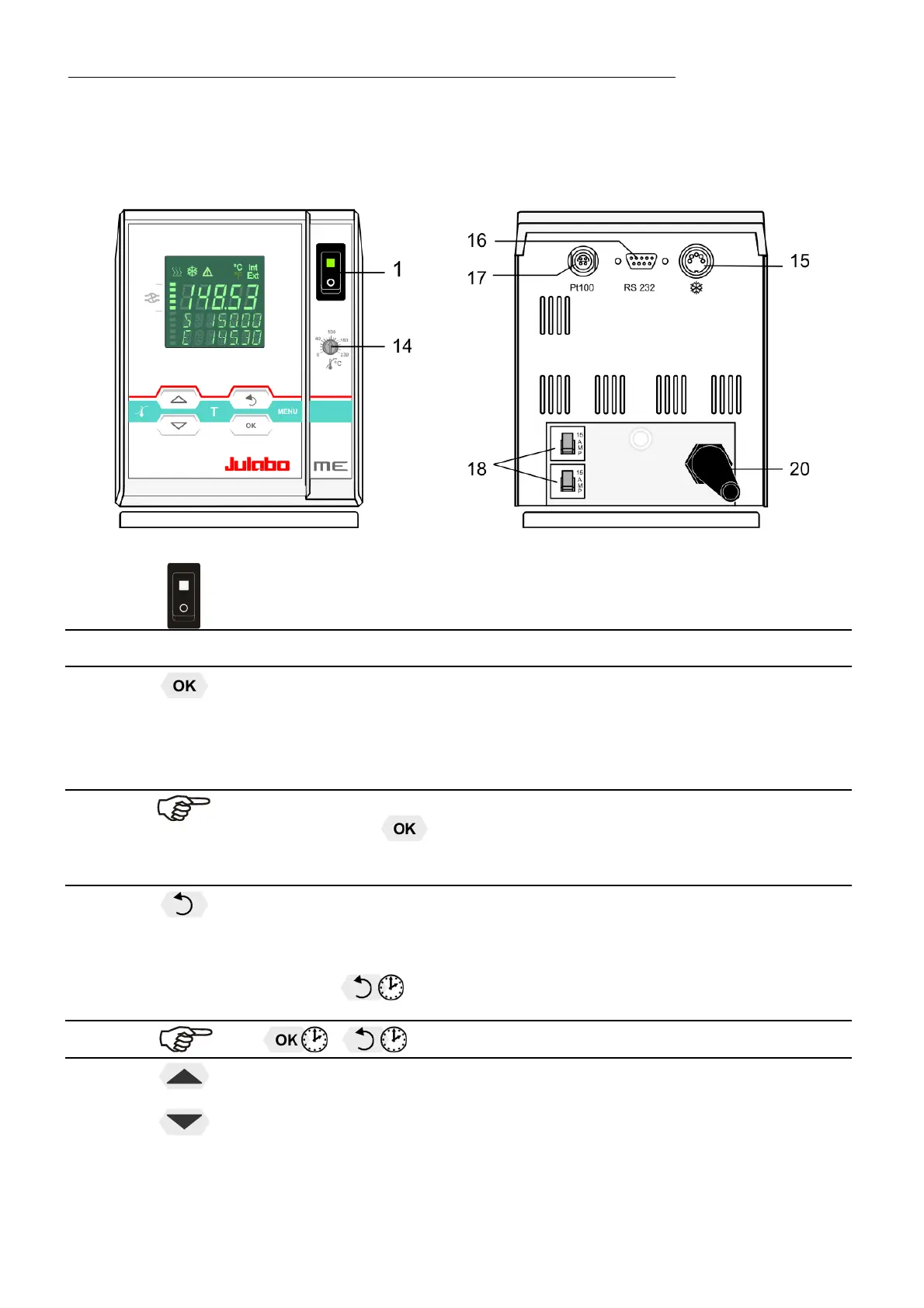

Front view Rear view
1
Mains power switch, illuminated
Navigation keys
2
1. Key: >OK< Start / Stop (pump / heater )
2. >OK< in the menu Menu item / select submenu for setting
Save set value
Save selected parameter
A beep signals the end of setting
After the actions Start, Stop and change from VFD Display to standard
display the key
is locked for a short time.
The above graph “front side” shows an example for standard display.
3
1. Key: >Return< Stop (pump / heater )
2. >Return< in the menu one menu level down
Correction function for parameters or values (prior to OK)
immediately back to standard display
- icon for „keep key pressed down“.
4
1. Key: >Up / Down <temperature – increase/decrease setpoint
Push key quickly for single steps,
Keep key pressed for fast change.
2. >Up/Down< in the menu selection of menu items / parameters
