9 Online parameter (setup only)
88

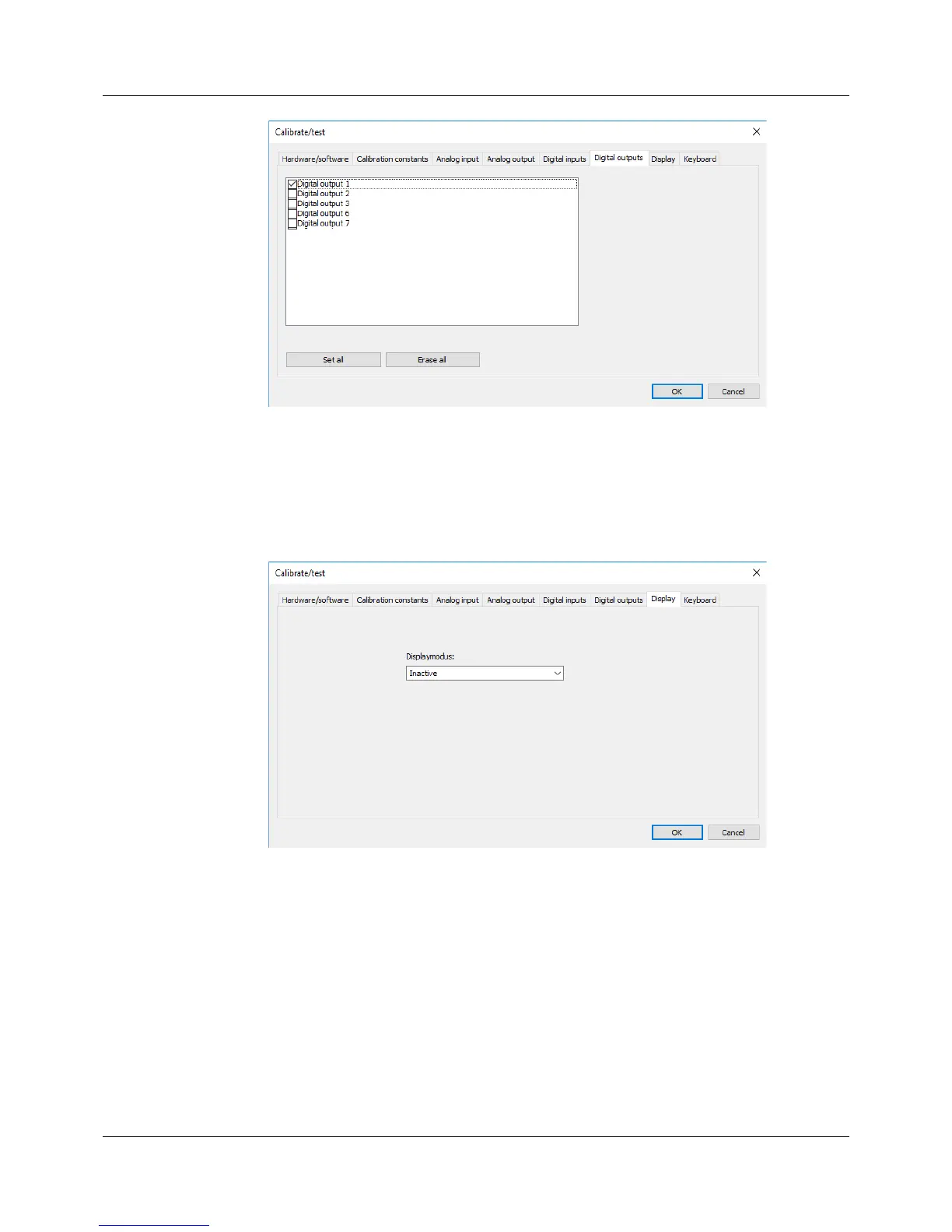

Set all: All outputs are set to TRUE after the button is pressed (checkmark in checkbox).
Delete all: All outputs are set to FALSE after the button is pressed (no checkmark).
Each output can be individually set to TRUE by clicking the checkbox. The output is set back to FALSE
by clicking the checkbox again.
Display
This function is used to activate all display elements of the device.
Inactive: The function is not active. The display corresponds to the standard display in calibration/testing
mode.
On: All display elements are switched on.
Off: All display elements are switched off.
Toggle: The display changes constantly between the states Off and On.
Keypad
This function is used to check all device buttons.
