1 Introduction
1.6 Brief description
The controller series comprises five freely configurable, universally usable compact controllers in various
DIN formats to control temperature, pressure, and other process variables.
The devices are characterized by a simple, clearly structured operation supported with texts. Process
values and parameters are represented by two 18-segment LCD displays. The types 702112, 702113
and 702114 are additionally equipped with a pixel matrix LCD display for displaying text. In addition, all
devices have individual display elements for the switch positions of the outputs as well as for manual
mode, ramp function, and timer. The devices are operated using a membrane keyboard with four buttons
and can be used under harsh environmental influences thanks to the high IP65 protection type.
Depending on the hardware design, the devices can be used as two-state controllers, three-state con-
trollers, three-step controllers, or continuous controllers. The basic type includes autotuning, a ramp
function, a program controller, manual mode, limit value monitoring functions, digital control signals, ex-
tensive timer functions, and a service counter. A math and logic function is also available as an option.
Furthermore, the user has the option to create his/her own application using structured text (ST code).
The devices can be conveniently configured using a PC with the help of the setup program (incl. program
editor and ST editor). No separate voltage supply is required when configuring via the USB interface
(USB-powered).

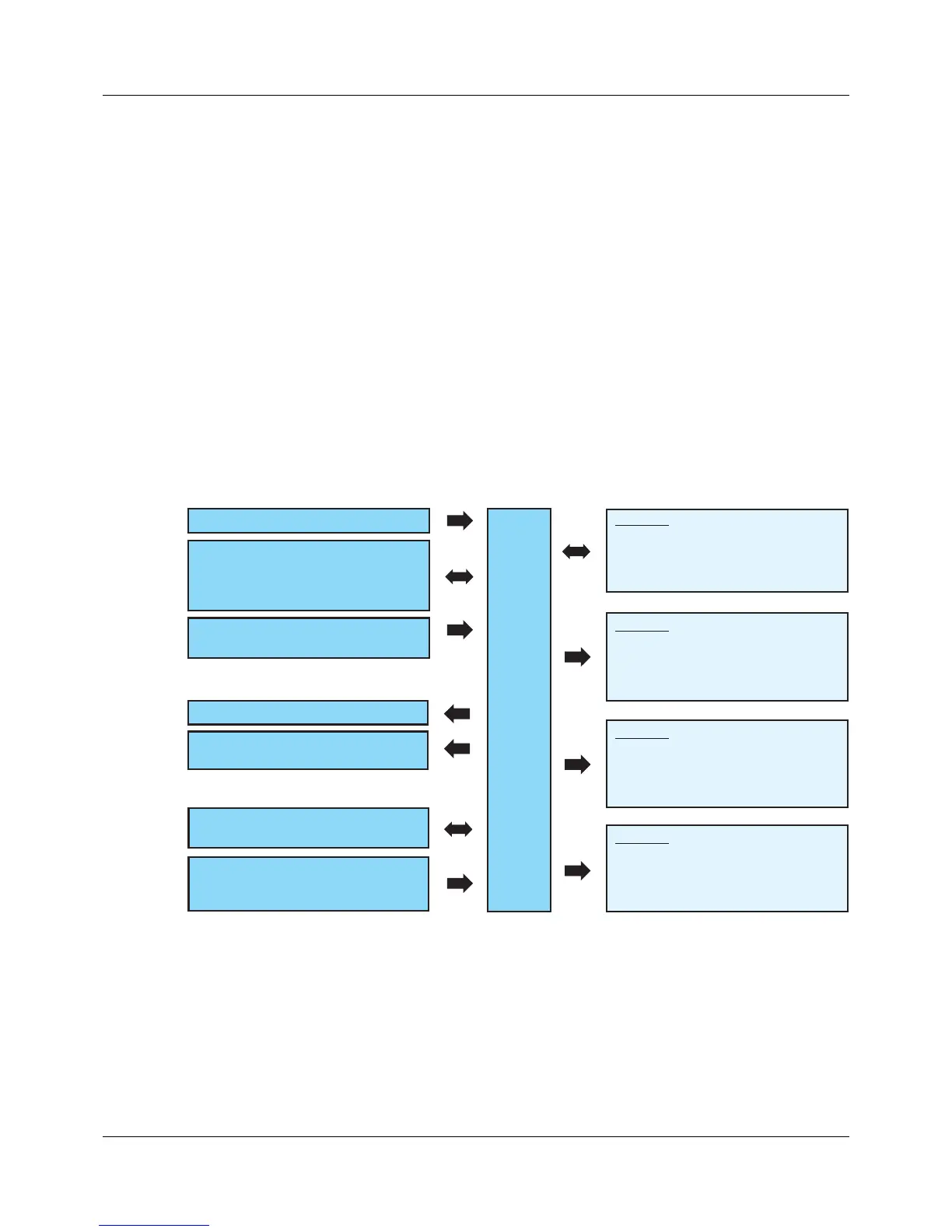

1.7 Block diagram
Analog input (universal)
Digital input
(for potential-free contact)
or
Digital output (logic output 0/14 V)
Setup interface
(USB powered)
Relay (N/O)
Option 2
- Relay ( )
- Logic output 0/14 V
- Analog output 0(2) to 10 V /
0(4) to 20 mA
N/O
Option 1
- Relay (N/O)
- Logic output 0/14 V
- RS485 interface
(only appl. for 702111)
(
)
only applies
for 702111 to 702114
702110
702111
702112
702113
702114
Digital input
()for potential-free contact
Voltage supply
- AC 110 to 240 V or
- AC/DC 20 to 30 V
Relay (N/O)
(only applies for 702111 to 702114)
Option 3
(only applies for 702112 to 702114)
- Relay ( )
- 0/14 V
- PhotoMOS relay
®
N/O
Logic output
Option 4
(only applies for 702112 to 702114)
- Relay ( )
- 0/14 V
- PhotoMOS relay
®
N/O
Logic output
