6 Parameterization
6.2 Controller types
Two-state controller
This controller has a switched output and can be parameterized with P, PI, PD, or PID transmission be-
havior. The proportional band Xp must be greater than 0 for the controller structure to take effect.
If Xp = 0, the behavior corresponds to the function of limit value monitoring with switching differential Xd1
(working point Y0 = 0 %):

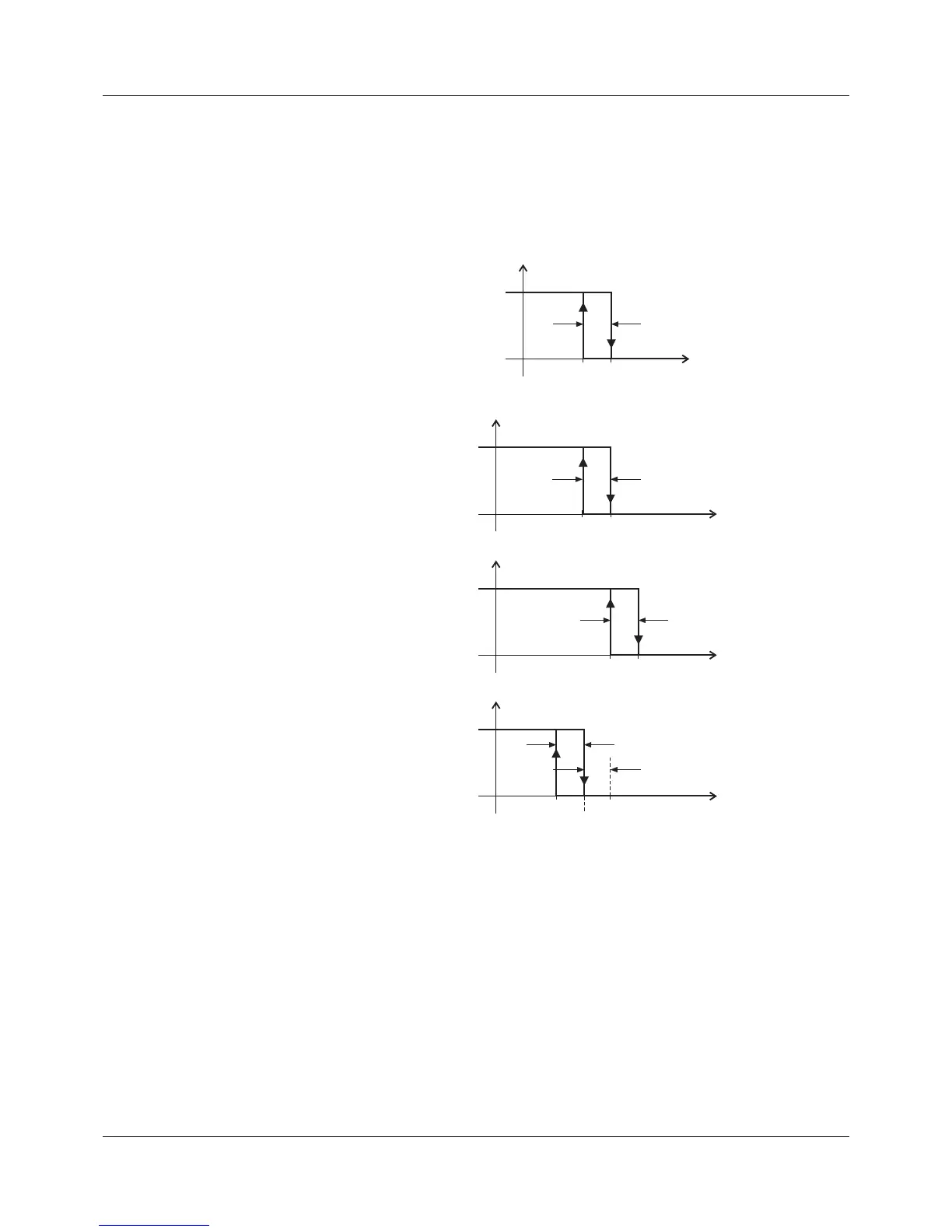

Influence of working point Y0 on the switching behavior:
Xd1
0 %
100 %
y
w
x
w-Xd1
Y0 = 0 %
Xd1
0 %
100 %
y
w
x
w+Xd1
Y0 = 100 %
Xd1
0 %
100 %
y
w
x
w-Xd1
Y0 = 0 %
Xd1
0 %
100 %
y
w
x
w-Xd1
Y0 = -100 %
Xd1
w-2*Xd1
