7 Configuration
Description of the function
Once the output level monitoring has been activated, determination of the mean output level starts as
soon as the actual value is within the controller differential band. When the mean output level has been
determined, the current output level must be within the monitored output level band. If it is not, an alarm
is triggered.
In the event of a setpoint value change, output level monitoring is temporarily deactivated until the actual
value returns to the control differential band. The mean output level is then determined again.
Application examples:
• Monitoring of signs of aging and faults on heating elements
• Reporting of faults during operation
Output level band 0 to 100 (10) Monitored output level band (admissible range
around the mean output level)
Alarm delay 0 to 9999 Delay time (in seconds) for alarm triggering
Controller differential
band
0 to 9999 (1) Controller differential band (admissible range
around the actual value in corrected state)
Parameter Selection/text/value Description
x
y
T
D

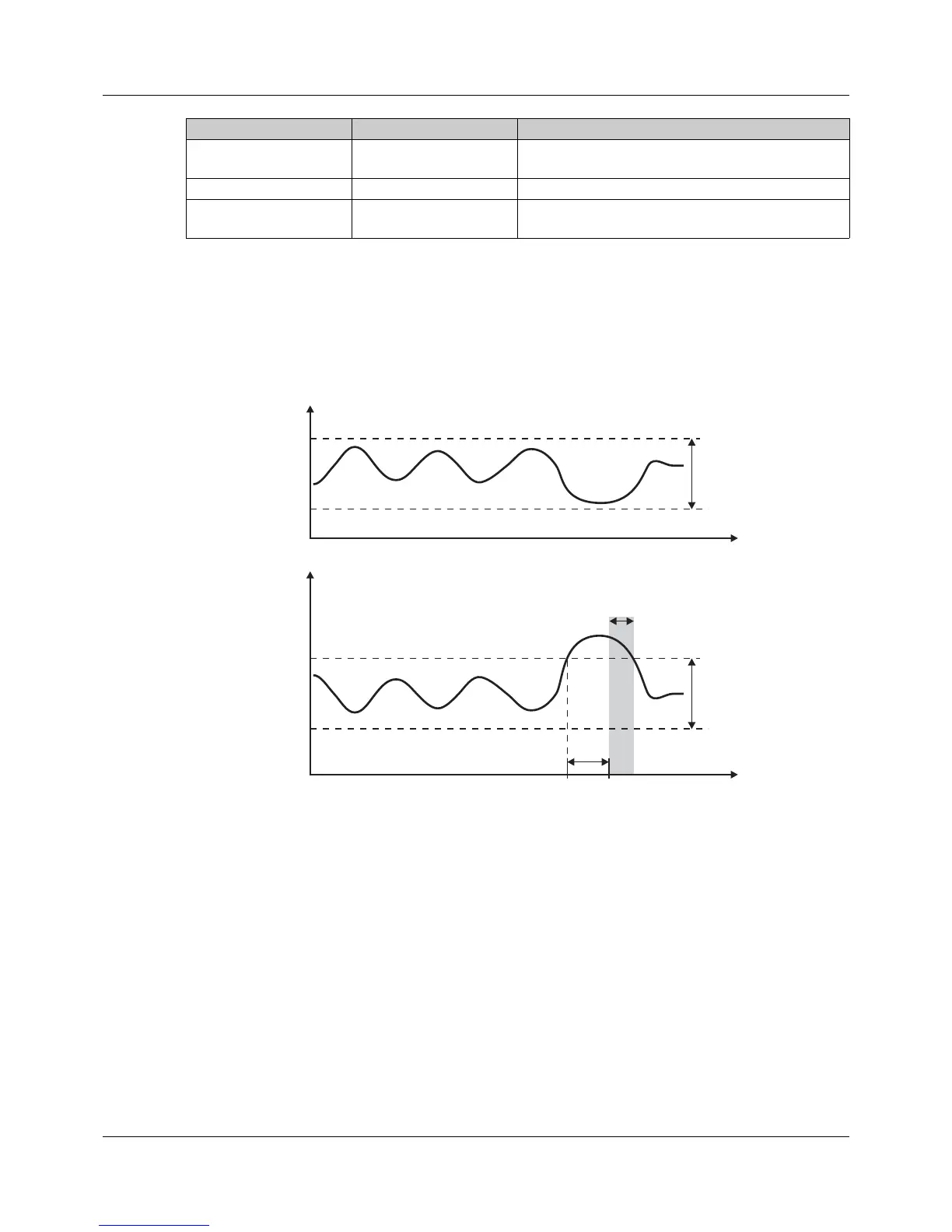

Actual value
Output level
Alarm delay
Δx
Δy
T
A
Controller differential band
Monitored output level band
Alarm period
y
x
t
t
T
D
T
A
Dy
Dx
