JUMO LOGOSCREEN 600 - RS232;RS485 Interface; Voltage Supply

4 Electrical connection
30

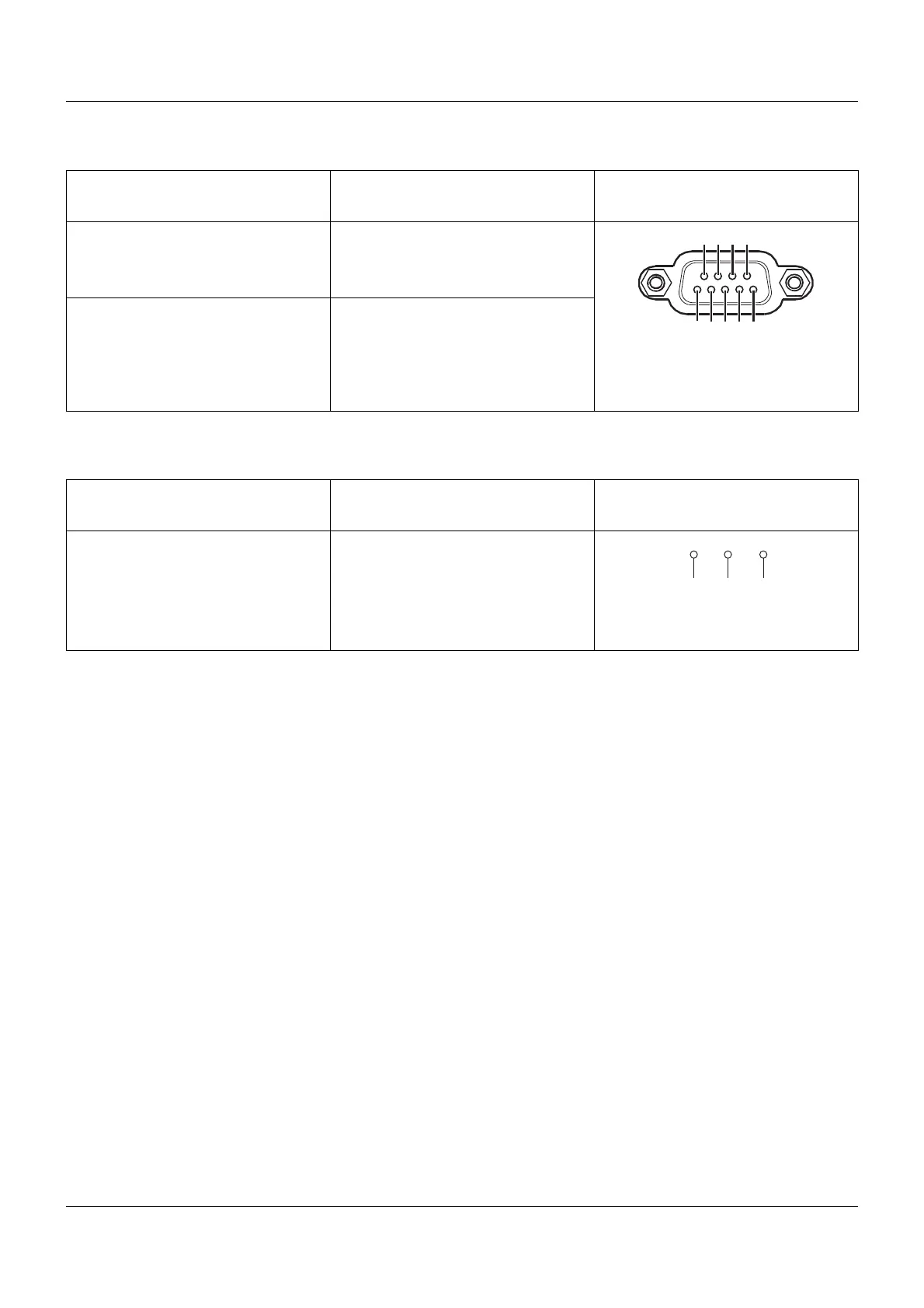

4.4.6 RS232/RS485 interface
4.4.7 Voltage supply
Version Connection element.Pin / Assign-
ment
Connection element
RS232
9-pin SUB-D socket
(switchable to RS485)
3.2 / RxD (received data)
3.3 / TxD (transmission data)
3.5 / GND (ground)
RS485
9-pin SUB-D-socket
(switchable to RS232)
3.3 / TxD+/RxD+ (transmission/
received data +)
3.5 / GND (ground)
3.8 / TxD-/RxD- (transmission/
received data -)
6
7
8
9
2
3
4
5
1
Version Connection element.Terminal /
Assignment
Terminals and connection symbol
AC 110 to 240 V +10/-15 %,
48 to 63 Hz
or
AC/DC 20 to 30 V, 48 to 63 Hz
Observe order details!
5.L1 / Line conductor (for DC: posi-
tive terminal L+)
5.N / Neutral conductor (for DC: neg-
ative terminal L-)
5.PE / Protection conductor
PEL1 N
PEL1 N
(L+) (L-)
