5 Operation

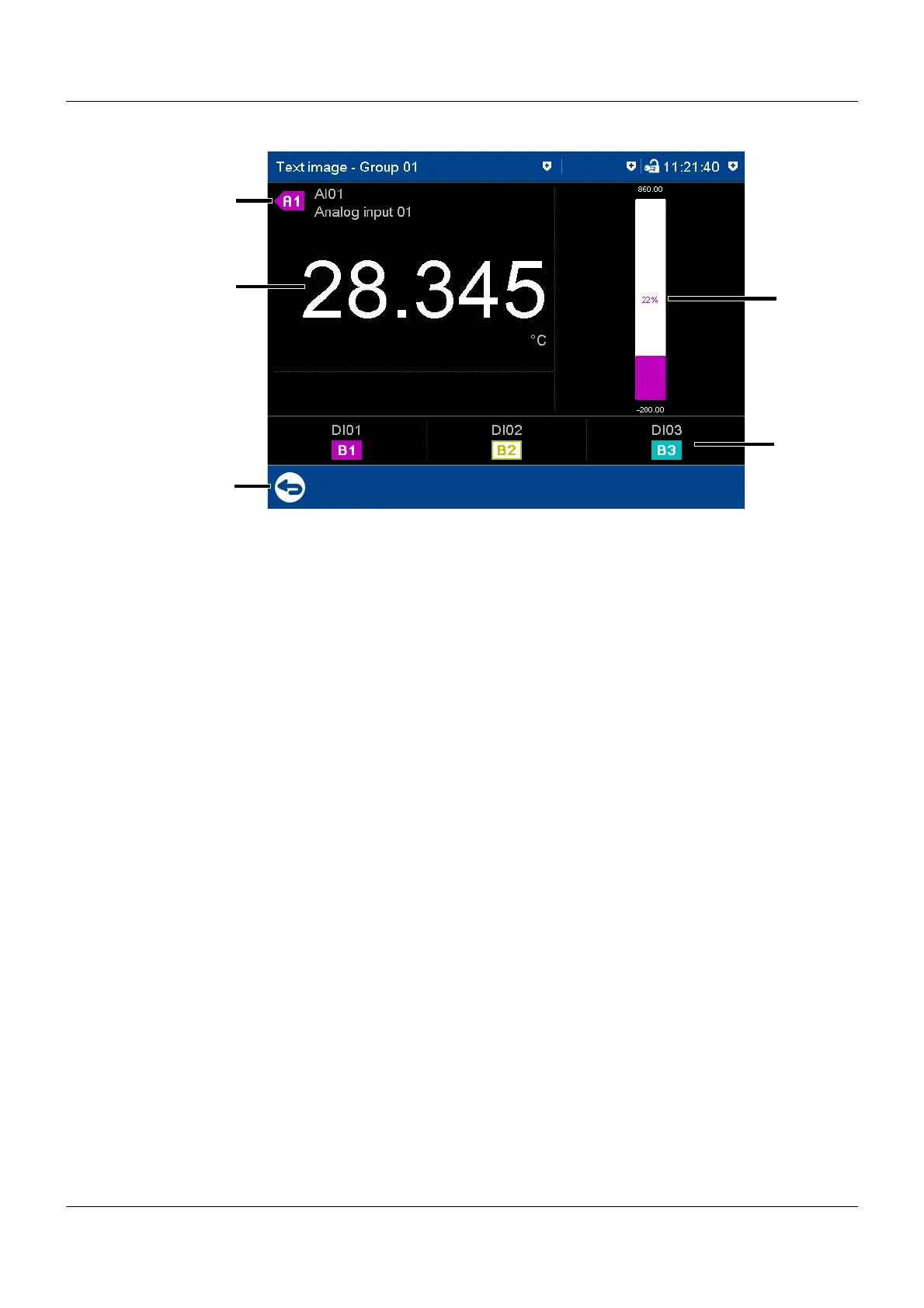

Individual view
(1) Designation (pointer), short signal
description (configurable), and signal
description (configurable) of the analog
signal
(4) Bar graph of the analog signal
(2) Current value of the analog signal (5) Digital signal with short signal descrip-
tion (configurable) and designation
(pointer)
(3) Back to group view Displays the logical state:
Colored button = HIGH (B1, B3)
Colored frame = LOW (B2)
(2)
(1)
(4)
(5)
(3)
