5 Operation
Report for batch
Chapter 5.4.5 "Report", page 49
Curve presentation for the batch
The functions are identical with those of the memory display in the "Curve diagram" visualiza-
tion.
Chapter 5.4.1 "Curve diagram", page 41
When opening the curve presentation, the zoom factor is computed so as to display the data
of the entire batch recording on the screen.

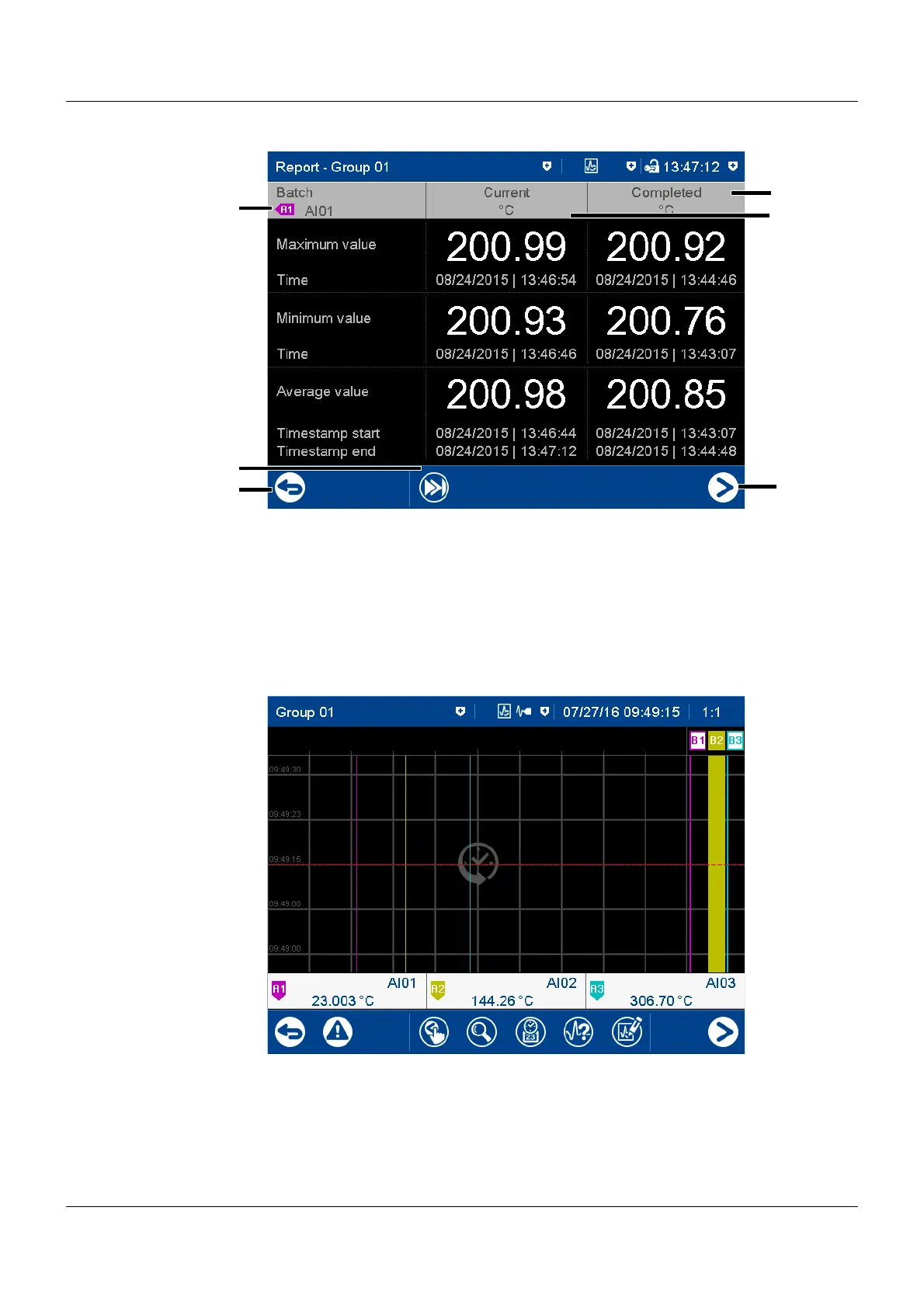

(1) Description (pointer) and short analog
signal description (configurable)
(4) Data (statistical information) for the
completed batch recording
(2) Go to the next analog signal within the
group
(5) Data (statistical information) for the cur-
rent (on-going) batch recording
(3) Back to the batch report view (6) Go to next group
