JUMO LOGOSCREEN nt User Manual

13
2 Instrument Description
H
The connection diagram is described in the Installation
Instructions B 706581.4(.1). When the paperless recorder is
delivered, a printed version of the installation instructions is
included.
B706581.4 Installation instructions for recorder
with zinc die-cast panel
B706581.4.1 Installation instructions for recorder
with stainless steel panel
Setup program
PC Eval. software (PCA3000)
PCA Communications software
Software

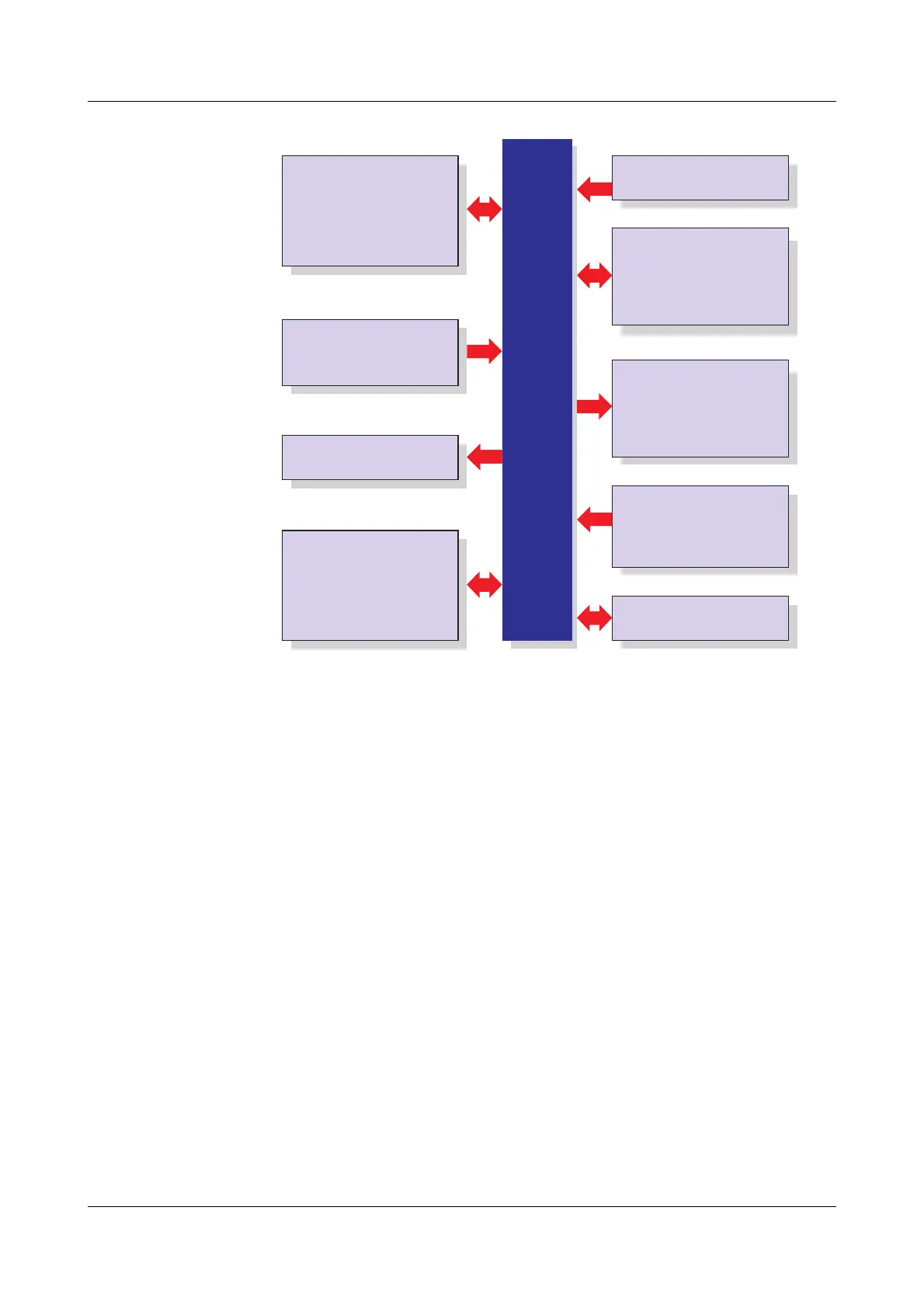

Internal channels
18x math channels
18x logic channels
27x counters / integrators
Inputs/outputs
0…18 analog inputs max.
0…24 binary inputs/outputs max.
(maximum of 3 module slots,
can be fitted with 6 analog inputs
or 3 analog inputs
and 8 binary inputs/outputs)
Display/operation
JUMO LOGOSCREEN nt
Power supply
Display
Operation
5.5" TFT color display,
320 x 240 pixels,
256 colors
control knob or touchpad
(left, right, press)
additionally
up to 54 analog inputs and
up to 54 binary inputs
Inputs via interface
1 relay (standard)
additionally
6 relays (option)
Relay outputs
AC 100...240V +10/-15%,
48...63Hz
AC/DC 20...30V, 48...63Hz
Interface
as standard
1x RS232/RS485
option
1x PROFIBUS-DP
1x Ethernet 10/100 Mbits/sec
4x USB interfaces
1x RS232 (barcode reader)
internal memory
256 Mbytes
external memory
CompactFlash card and
USB memory stick
Meas. data memory
